3M Products & Supplies

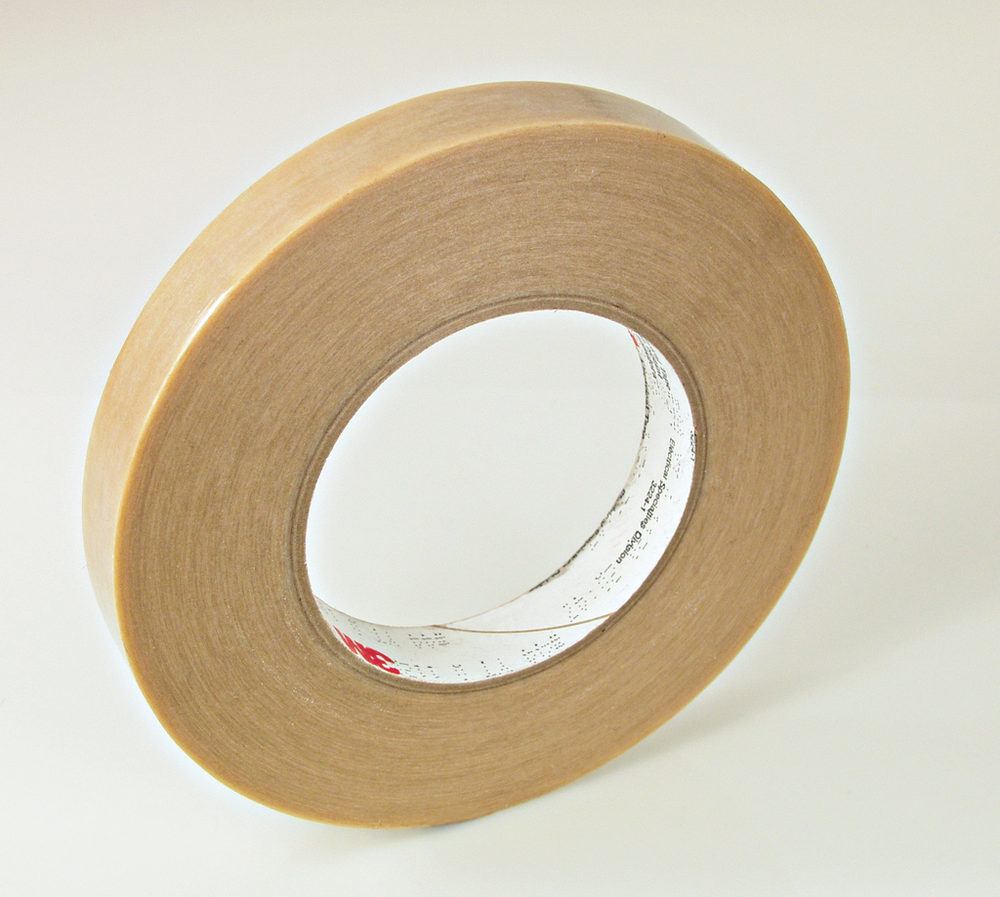

3M™ Composite Film Electrical Tape 44, 2-1/2 in x 90 yd, 3 in Paper Core, 16 Rolls/Case - 7010397430

Sold As: 16-Pack
SKU: 7010397430
MPN: 7010397430
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128549230
3M ID: 80611262447
5 Digit UPC: 54923
$1,135.76 ($70.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • For protecting start wires, leads, terminal strips and insulation paper
  • Offers great electrical properties and is puncture-resistant
  • UL Listed and RoHS 2011/65/EU Compliant
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Fahrenheit)32.0
Overall Width (Imperial)2.5
Overall Width (Metric)63.5
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeThermosetting Rubber
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationInsulation
Minimum Operating Temperature (Celsius) UOMDegree
Electrolytic Corrosion Factor1.0
Backing (Carrier) MaterialComposite
Overall Width (Metric) UOMmm
