3M Products & Supplies

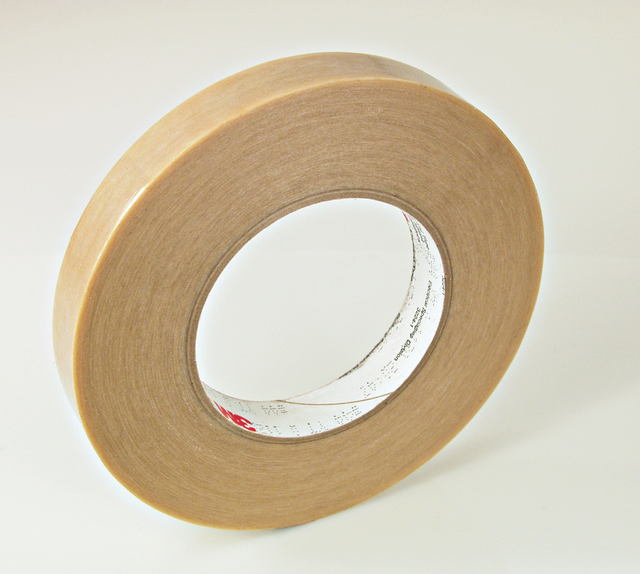

3M™ Composite Film Electrical Tape 44, 1/2 in x 90 yd, 3 in Paper Core, 72 Rolls/Case - 7010349945

Sold As: 72-Pack
SKU: 7010349945
MPN: 7010349945
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007558910
3M ID: 80610610471
5 Digit UPC: 55891
$1,041.06 ($14.46 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Offers great electrical properties and is puncture-resistant
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • For protecting start wires, leads, terminal strips and insulation paper
  • UL Listed and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial)90.0
Backing (Carrier) MaterialComposite
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeThermosetting Rubber
Elongation at Break50
Minimum Operating Temperature (Celsius)0.0
Product MarketsElectrical Equipment Manufacturing
Dielectric Strength UOMV
Overall Width (Metric)12.7
Shelf Life UOMYear
Overall Width (Imperial)0.5
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Overall Length (Metric)82.296
Dielectric Strength5500.0
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)266.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor1.0
Rolls per Case72.0
ApplicationInsulation
Maximum Operating Temperature (Celsius) UOMDegree
Insulation Resistance>1 x 10^6 megohms
Maximum Operating Temperature (Celsius)130.0
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
