3M Products & Supplies

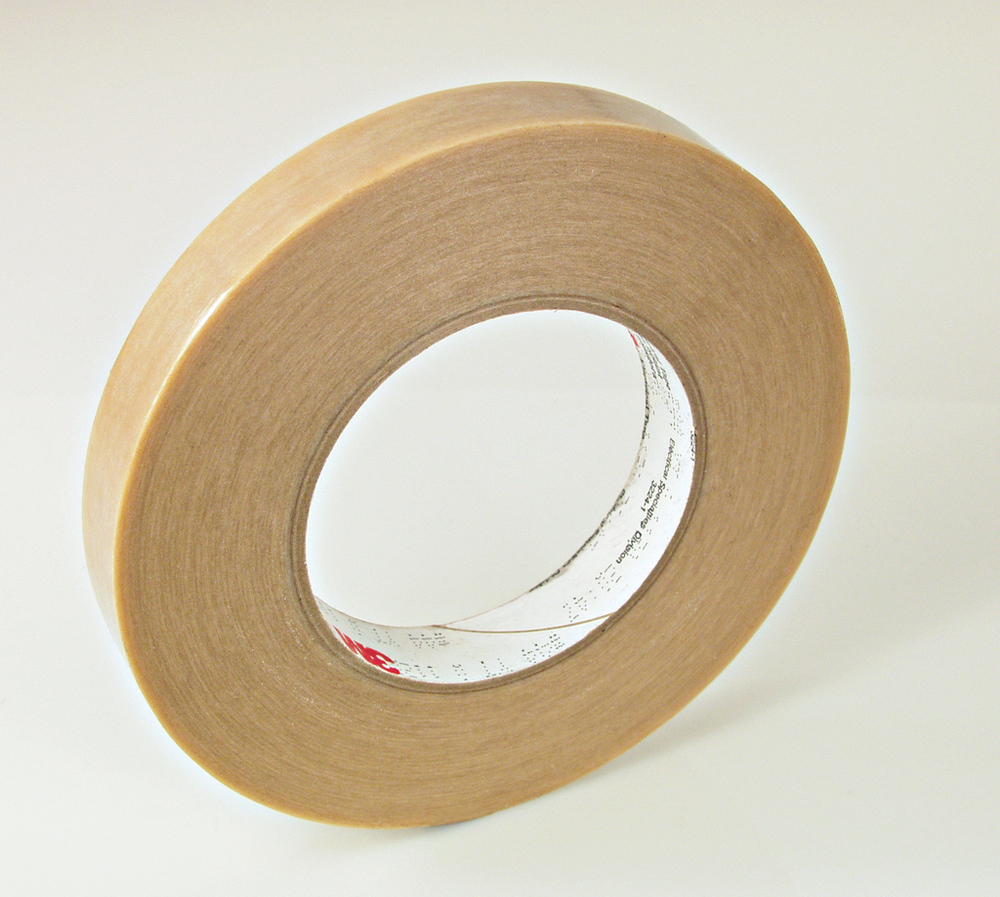

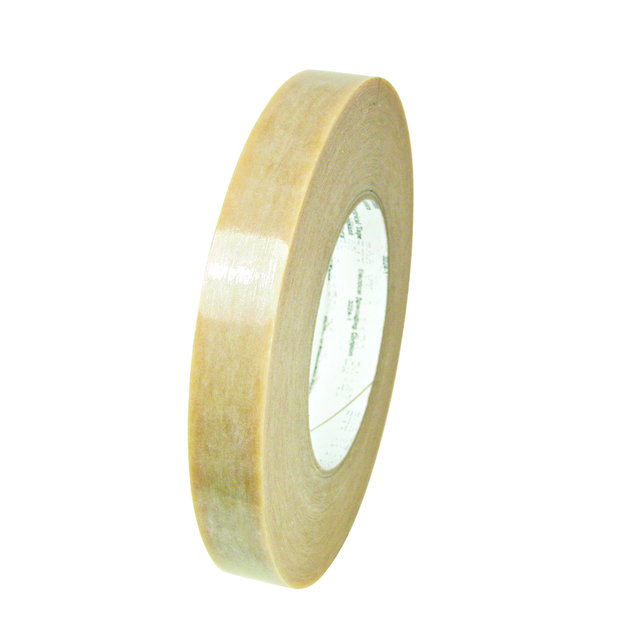

3M™ Composite Film Electrical Tape 44, 2 in x 90 yd, 3 in Paper Core, 20 Rolls/Case - 7010350149

Sold As: 20-Pack
SKU: 7010350149
MPN: 7010350149
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138466428
3M ID: 80610843106
5 Digit UPC: 46642
$1,274.81 ($63.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 44 is a low halogen, edge tear resistant, electrical tape that's suitable for general purpose insulation, as well as anchoring and banding in motors and transformers. The tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • For protecting start wires, leads, terminal strips and insulation paper
  • UL Listed and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Ideal for economical, general-purpose insulation, anchoring and banding in motors and transformers
  • Offers great electrical properties and is puncture-resistant
  • The combination of the thermosetting, rubber adhesive and the polyester-web and polyester film backing provides excellent adherence and dielectric strength
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
ApplicationInsulation
Overall Width (Imperial)2.0
Shelf Life UOMYear
Overall Width (Metric)50.8
Adhesive TypeThermosetting Rubber
Minimum Operating Temperature (Fahrenheit)32.0
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Celsius)130.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialComposite
Overall Length (Imperial) UOMyd
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)0.0
Maximum Operating Temperature (Fahrenheit)266.0
Overall Width (Metric) UOMmm
Overall Length (Imperial)90.0
Overall Width (Imperial) UOMin
Product MarketsElectrical Equipment Manufacturing
Maximum Operating Temperature (Fahrenheit) UOMDegree
