3M Products & Supplies

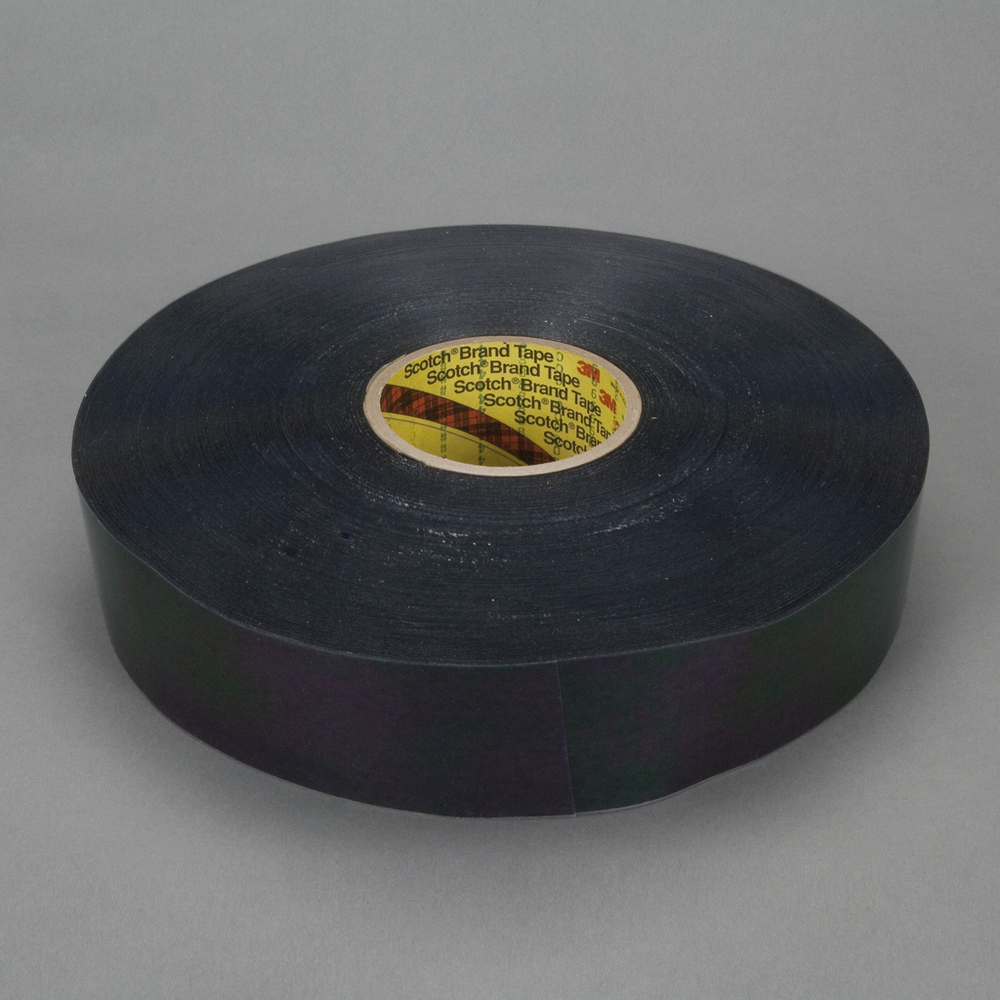

3M™ Conformable Sound Management Film Tape 9343, Black, 13/32 in x 36 yd, 72 Roll/Case - 7010334496

Sold As: 72-Pack
SKU: 7010334496
MPN: 7010334496
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115255816
3M ID: 70006429636
5 Digit UPC: 25581
$4,183.13 ($58.10 / Count)
Hurry up! Current stock:

Product Description

3M™ Conformable Sound Management Film Tape 9343 is designed with a black, non-woven backing and acrylic adhesive on a polyester liner. The non-woven, microfiber backing is unique in that it provides conformability, elasticity, compressibility and durability. This tape is engineered to help reduce noise, vibration, squeaks and rattles in automotive interior applications.

Features

  • Durable, abrasion-resistant backing maintains a long wear life, is die-cuttable and passes FMVSS 302
  • Designed to help reduce noise, friction, vibration, squeaks and rattles in automotive interior applications
  • Acrylic adhesive produces excellent bond strength
  • Conformable design provides a solution for irregular-shaped parts
  • Non-woven, microfiber backing offers conformability, elasticity, compressibility and durability
  • Withstands a temperature range of -30°F/-34°C to 250°F/121°C
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)121.0
Shelf Life in Months (From Date of Manufacture)12.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)8.8
Adhesive TypeAcrylic
Number of Adhesive SidesSingle-sided
Overall Length (Imperial)36.0
Overall Thickness (Imperial)19.5
Backing MaterialNon-woven
Elongation at Break400%
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Width (Metric) UOMmm
ApplicationExterior Side Panel Bonding
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial) UOMmil
Primary LinerPaper
Overall Width (Metric)10.31
Product TypeTape
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial)5.9
Tensile Strength (Imperial)5.0
Overall Width (Imperial)0.4
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Product FormRoll
Overall Length (Imperial) UOMyd
Adhesion Strength (Metric) UOMN/100mm
Product ColorBlack
Minimum Operating Temperature (Fahrenheit)-30.0
Adhesion Strength (Imperial)27.0
Units per Case72.0
Overall Length (Metric) UOMm
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit)250.0
Adhesion Strength (Metric)30.0
IndustriesAppliance, Automotive, General Industrial, Military and Government, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Metric)0.15
Backing (Carrier) MaterialNon-woven
