3M Products & Supplies

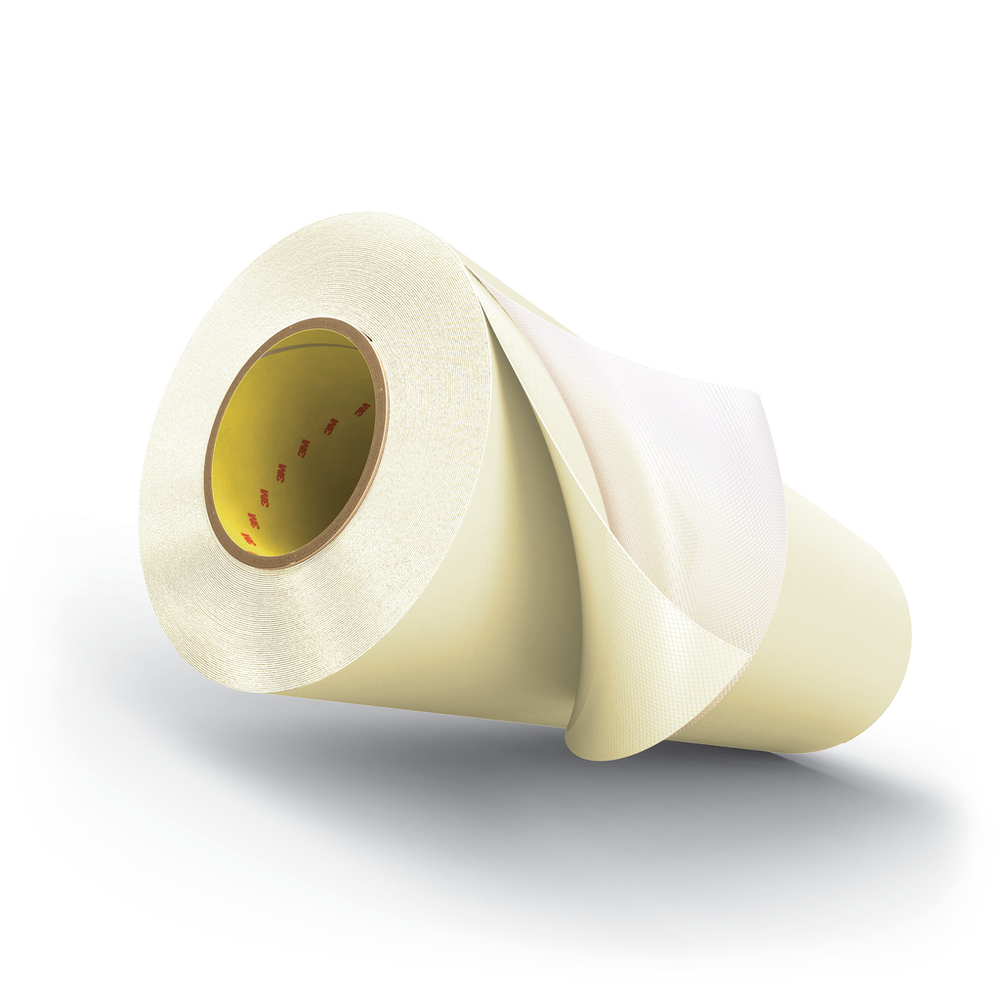

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015, White, 54 in x 36 yd, 15 mil, 1 Roll/Case - 7100311263

SKU: 7100311263
MPN: 7100311263
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060004796
3M ID: 70007558235
$2,634.84 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1015 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features

  • White foam color indicates the standard, medium density foam
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
  • Grooves in the adhesive are created by a cross-hatch pattern from the release liner
  • Print plates mounted on E1015 will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a standard medium density foam that is ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Urethane SleevesYes
Warranty Period2 Years from Date of Manufacture
Overall Width (Metric)1371.6
Primary Liner Thickness (Metric) UOMmm
Print Quality (Series)10 Series
Overall Length (Metric)32.918
Primary LinerPolycoated Polyester
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Print QualityCombination Printing - Standard
Overall Width (Imperial)54.0
Application Thickness (Metric)0.381
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial) UOMmil
Application Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Product ColorWhite
Adhesive TypeDifferential Acrylate
Backing MaterialPolyethylene Foam
IndustriesPrint
Application Thickness (Imperial)15
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
