3M Products & Supplies

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1715H, Teal, 54 in x 36 yd, 15 mil, 1 Roll/Case - 7100314509

SKU: 7100314509
MPN: 7100314509
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005632
3M ID: 70007559530
$2,745.72 each
Hurry up! Current stock:

Product Description

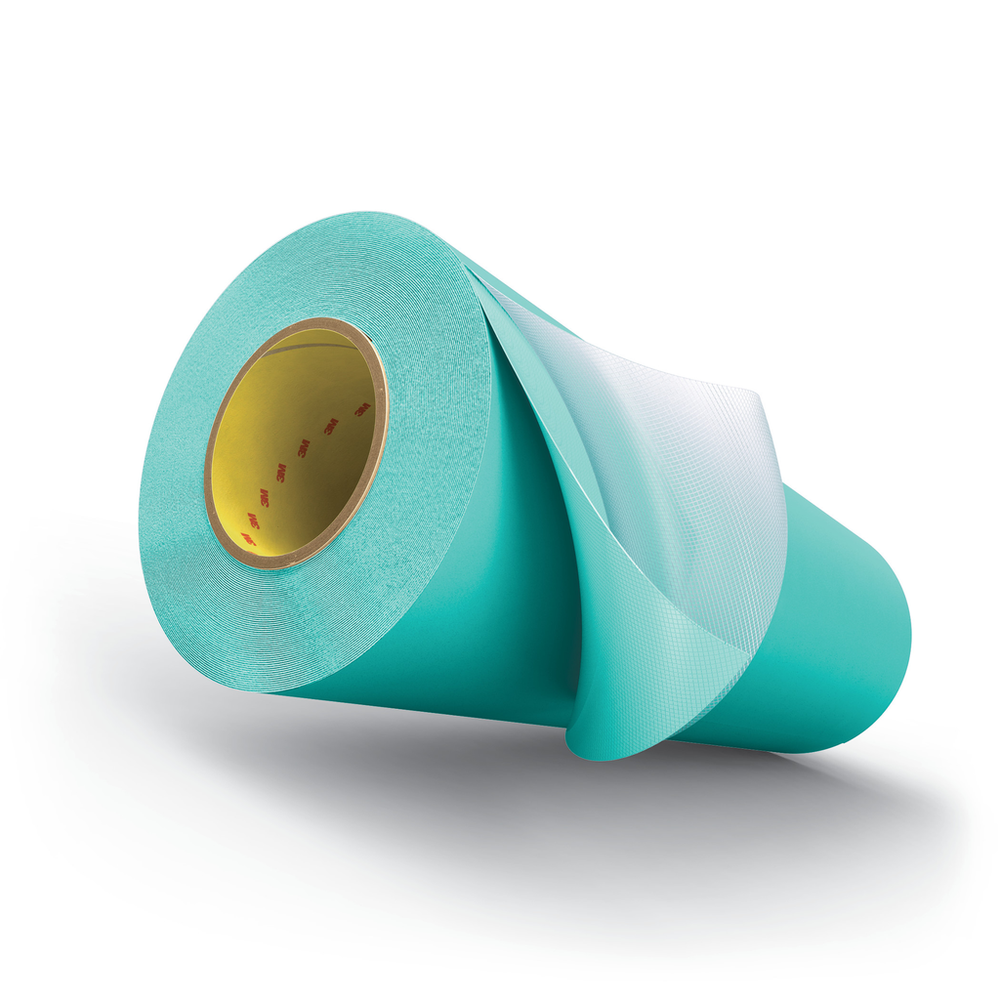

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1715H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.

Features

  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Print plates mounted on E1715H will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • Teal foam color indicates the medium firm density foam
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
IndustriesPrint
Primary Liner Thickness (Metric)0.11
Overall Width (Metric) UOMmm
Overall Width (Metric)1371.6
Primary Liner Thickness (Imperial)4.5
ApplicationFlexographic Plate Mounting
Clean RemovalYes
Overall Length (Imperial)36.0
Overall Width (Imperial)54.0
Print QualityCombination Printing - Medium Firm
Product ColorTeal
Application Thickness (Imperial) UOMmil
Warranty Period2 Years from Date of Manufacture
Overall Length (Metric)32.918
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Urethane SleevesYes
Application Thickness (Metric)0.381
Adhesive TypeDifferential Acrylate
Overall Length (Imperial) UOMyd
Print Quality (Series)17 Series
Overall Width (Imperial) UOMin
Primary LinerPolycoated Polyester
Shelf Life UOMMonth
Application Thickness (Metric) UOMmm
Backing MaterialPolyethylene Foam
Application Thickness (Imperial)15
Primary Liner Thickness (Imperial) UOMmil
