3M Products & Supplies

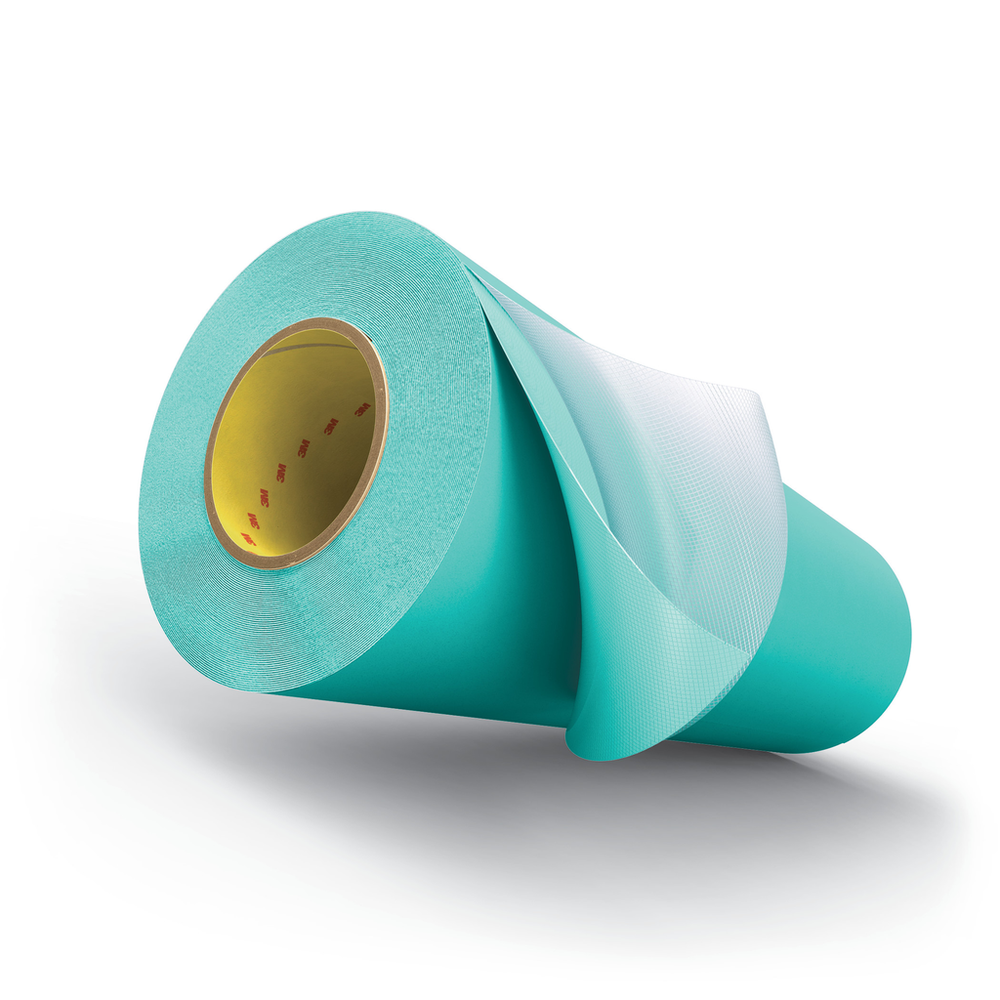

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H, Teal, 54 in x 36 yd, 20 mil, 1 Roll/Case - 7100314482

SKU: 7100314482
MPN: 7100314482
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005687
3M ID: 70007559589
$2,768.39 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.

Features

  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Teal foam color indicates the medium firm density foam
  • Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • Print plates mounted on E1720H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)32.918
Overall Length (Imperial)36.0
Product ColorTeal
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Adhesive TypeDifferential Acrylate
Shelf Life UOMMonth
Overall Length (Metric) UOMm
Overall Width (Metric)1371.6
Overall Width (Imperial)54.0
Overall Width (Metric) UOMmm
Urethane SleevesYes
Clean RemovalYes
Application Thickness (Imperial)20
IndustriesPrint
Print Quality (Series)17 Series
Print QualityCombination Printing - Medium Firm
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Primary LinerPolycoated Polyester
Backing MaterialPolyethylene Foam
Application Thickness (Metric)0.508
Primary Liner Thickness (Metric)0.11
Application Thickness (Imperial) UOMmil
Warranty Period2 Years from Date of Manufacture
Primary Liner Thickness (Imperial)4.5
Primary Liner Thickness (Imperial) UOMmil
