3M Products & Supplies

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H, Teal, 18 in x 36 yd, 20 mil, 1 Roll/Case - 7100314493

SKU: 7100314493
MPN: 7100314493
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060005670
3M ID: 70007559571
$961.25 each
Hurry up! Current stock:

Product Description

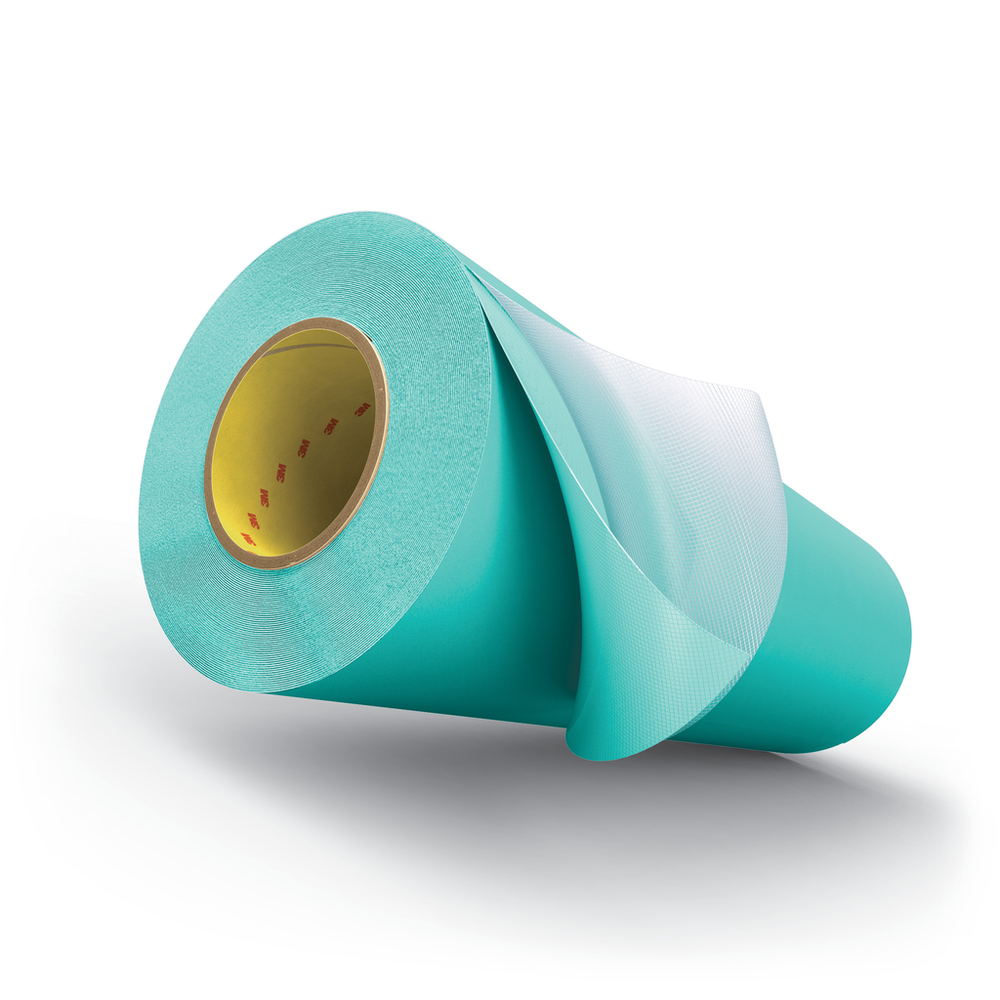

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.

Features

  • Print plates mounted on E1720H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Teal foam color indicates the medium firm density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)18.0
Overall Length (Metric)32.918
Primary LinerPolycoated Polyester
Shelf Life UOMMonth
IndustriesPrint
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Primary Liner Thickness (Metric) UOMmm
Overall Width (Metric)457.2
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric)0.11
Product ColorTeal
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Print Quality (Series)17 Series
Backing MaterialPolyethylene Foam
Application Thickness (Metric)0.508
Clean RemovalYes
Adhesive TypeDifferential Acrylate
Warranty Period2 Years from Date of Manufacture
Print QualityCombination Printing - Medium Firm
Urethane SleevesYes
Application Thickness (Imperial)20
Application Thickness (Metric) UOMmm
Application Thickness (Imperial) UOMmil
