3M Products & Supplies

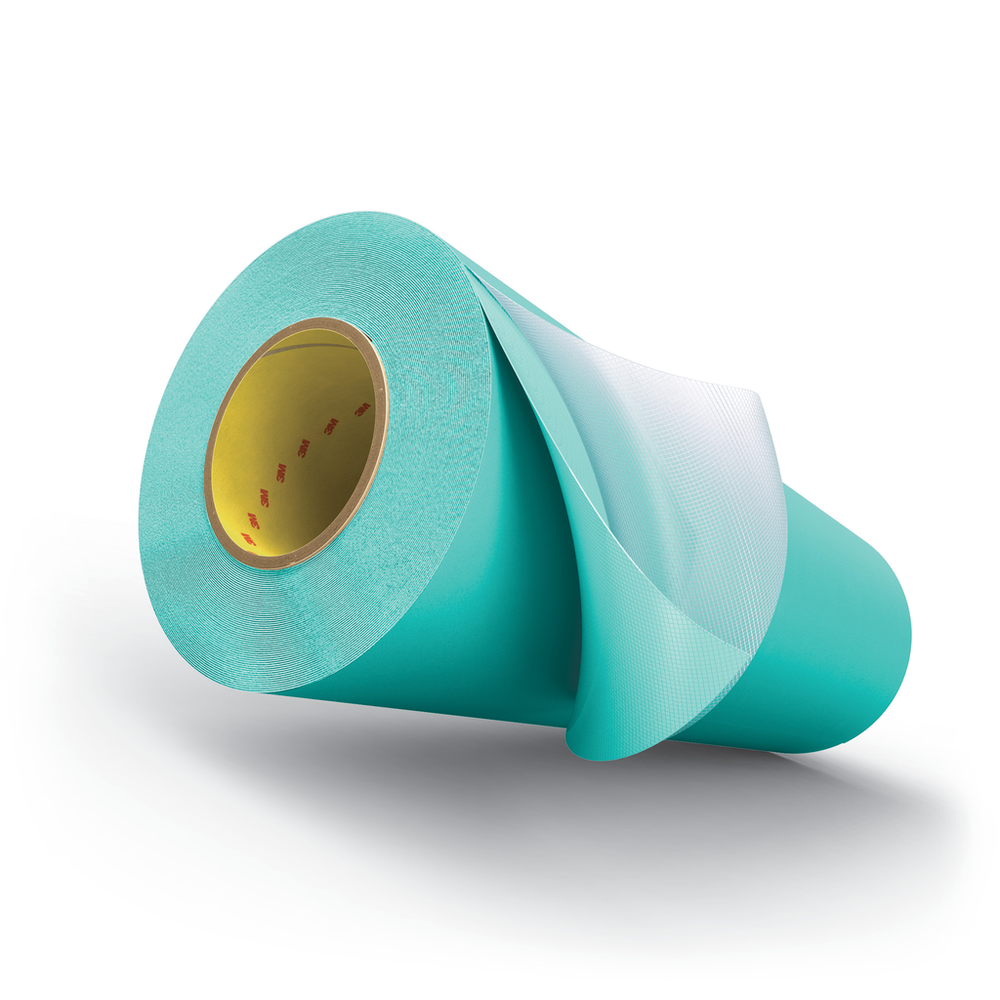

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H, Teal, 14 in x 36 yd, 20 mil, 1 Roll/Case - 7100314485

SKU: 7100314485
MPN: 7100314485
Lead Time: 18 working days.
UPC: 00068060005656
3M ID: 70007559555
$822.40 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1720H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal foam mounting tape provides high quality medium firm combination print.

Features

  • Teal foam color indicates the medium firm density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Has a medium firm density foam that is ideal for printing combinations of solids and process with halftone dots
  • 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Print plates mounted on E1720H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)14.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Primary LinerPolycoated Polyester
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Adhesive TypeDifferential Acrylate
IndustriesPrint
Overall Width (Metric)355.6
Product ColorTeal
Overall Length (Metric)32.918
Print QualityCombination Printing - Medium Firm
Clean RemovalYes
Warranty Period2 Years from Date of Manufacture
Backing MaterialPolyethylene Foam
Print Quality (Series)17 Series
Application Thickness (Imperial) UOMmil
Urethane SleevesYes
Application Thickness (Metric)0.508
Application Thickness (Metric) UOMmm
Application Thickness (Imperial)20
