3M Products & Supplies

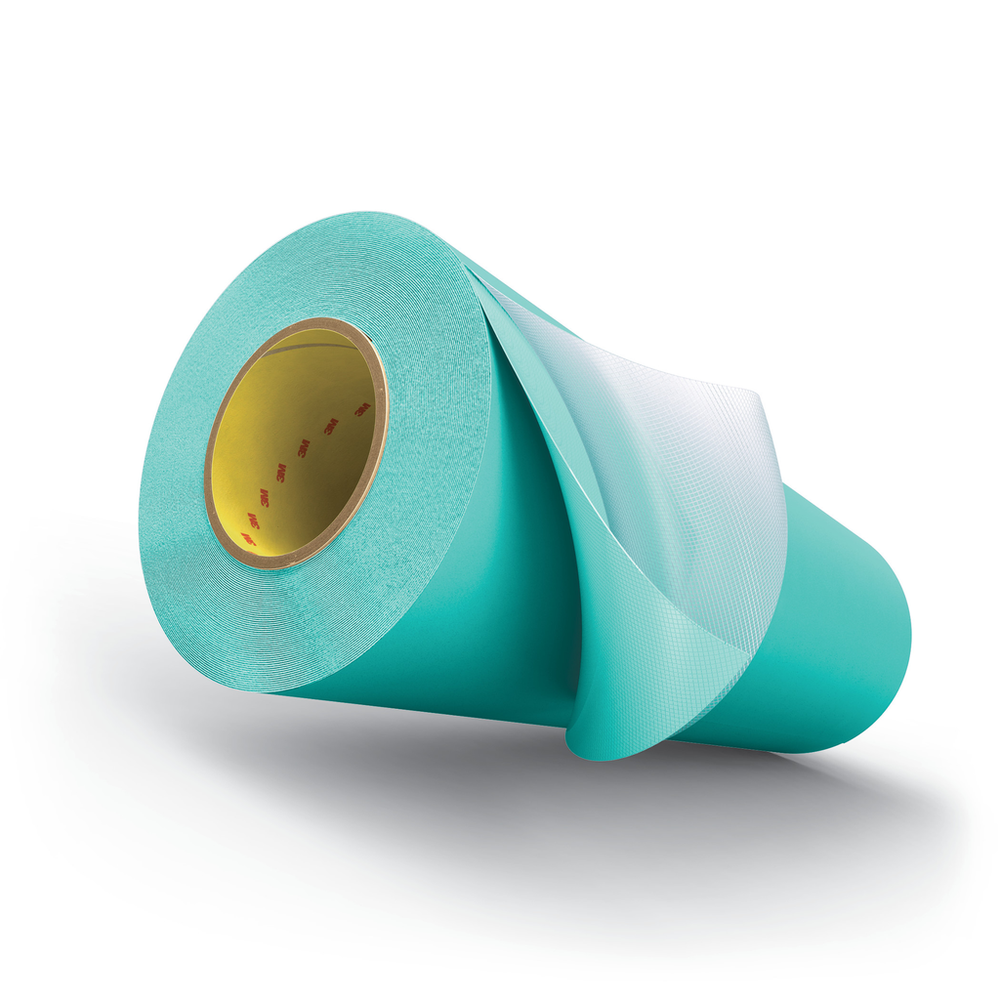

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1720, Teal, 54 in x 36 yd, 20 mil, 1 Roll/Case - 7100318519

SKU: 7100318519
MPN: 7100318519
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006592
3M ID: 70007560116
$2,906.55 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1720 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal flexographic plate mounting sticky back foam tape provides high quality medium firm combination print.

Features

  • Air release feature allows air to escape from between the tape and cylinder/sleeve and between tape and plate
  • Designed to be easily removed from ink contaminated flexographic print plates
  • Teal color indicates medium firm density foam
  • Securely bonds flexographic photopolymer plate to print sleeve or steel cylinder to prevent plate edge lifting during printing
  • 0.020 inch (0.51 mm) double coated medium firm density teal foam tape
  • Ideal for printing combinations of solids and process with halftone dots
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric)137.16
Print QualityCombination Printing - Medium Firm
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Backing MaterialPolyethylene Foam
Print Quality (Series)17 Series
Overall Length (Metric) UOMm
Application Thickness (Imperial)20
Overall Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial)54.0
Application Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Product ColorTeal
ApplicationFlexographic Plate Mounting
IndustriesPaper, Print
Overall Length (Metric)32.981
Overall Thickness (Metric)0.508
Clean RemovalYes
Overall Width (Metric) UOMcm
Primary Liner Thickness (Imperial) UOMmil
Application Thickness (Metric)0.508
Overall Thickness (Metric) UOMmm
Overall Thickness (Imperial)20.0
Primary Liner Thickness (Metric)0.11
Adhesive TypeDifferential Acrylate
Primary Liner Thickness (Imperial)4.5
Primary LinerPolycoated Polyester
Shelf Life UOMMonth
Application Thickness (Metric) UOMmm
