3M Products & Supplies

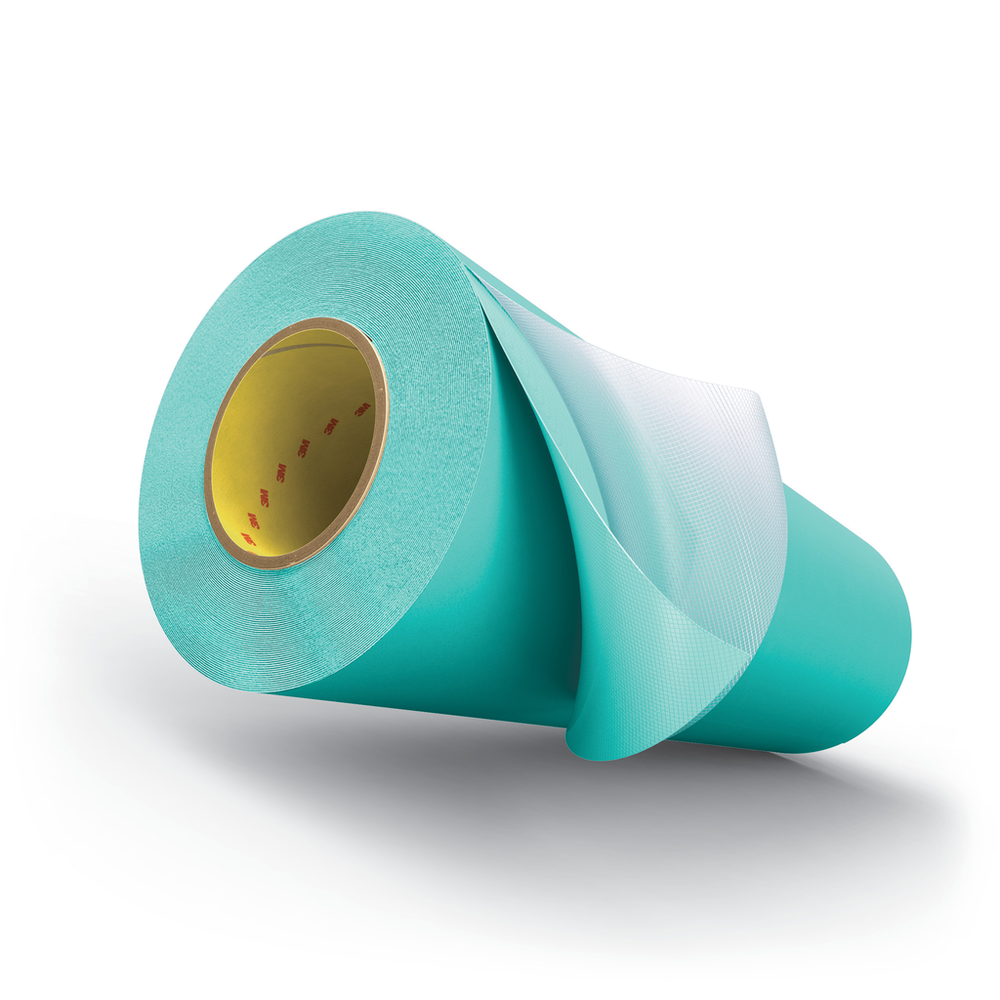

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1720, Teal, 27 in x 36 yd, 20 mil, 1 Roll/Case - 7100319450

SKU: 7100319450
MPN: 7100319450
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006585
3M ID: 70007560108
$1,513.83 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape L1720 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This teal flexographic plate mounting sticky back foam tape provides high quality medium firm combination print.

Features

  • 0.020 inch (0.51 mm) double coated medium firm density teal foam tape
  • Air release feature allows air to escape from between the tape and cylinder/sleeve and between tape and plate
  • Securely bonds flexographic photopolymer plate to print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Ideal for printing combinations of solids and process with halftone dots
  • Designed to be easily removed from ink contaminated flexographic print plates
  • Teal color indicates medium firm density foam
Spec Sheet



Downloads

Specifications

Shelf Life730
Print Quality (Series)17 Series
Overall Width (Imperial)27.0
Primary Liner Thickness (Metric) UOMmm
Primary LinerPolycoated Polyester
Backing MaterialPolyethylene Foam
Adhesive TypeDifferential Acrylate
Application Thickness (Imperial)20
Application Thickness (Metric)0.508
Clean RemovalYes
Overall Thickness (Imperial) UOMmil
IndustriesPaper, Print
Overall Thickness (Metric)0.508
Overall Width (Imperial) UOMin
Application Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Overall Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.981
Primary Liner Thickness (Imperial)4.5
Print QualityCombination Printing - Medium Firm
Country of OriginUnited States
Shelf Life UOMMonth
Primary Liner Thickness (Imperial) UOMmil
Overall Thickness (Imperial)20.0
Overall Width (Metric) UOMcm
Overall Length (Metric) UOMm
ApplicationFlexographic Plate Mounting
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Overall Width (Metric)68.58
Product ColorTeal
