3M Products & Supplies

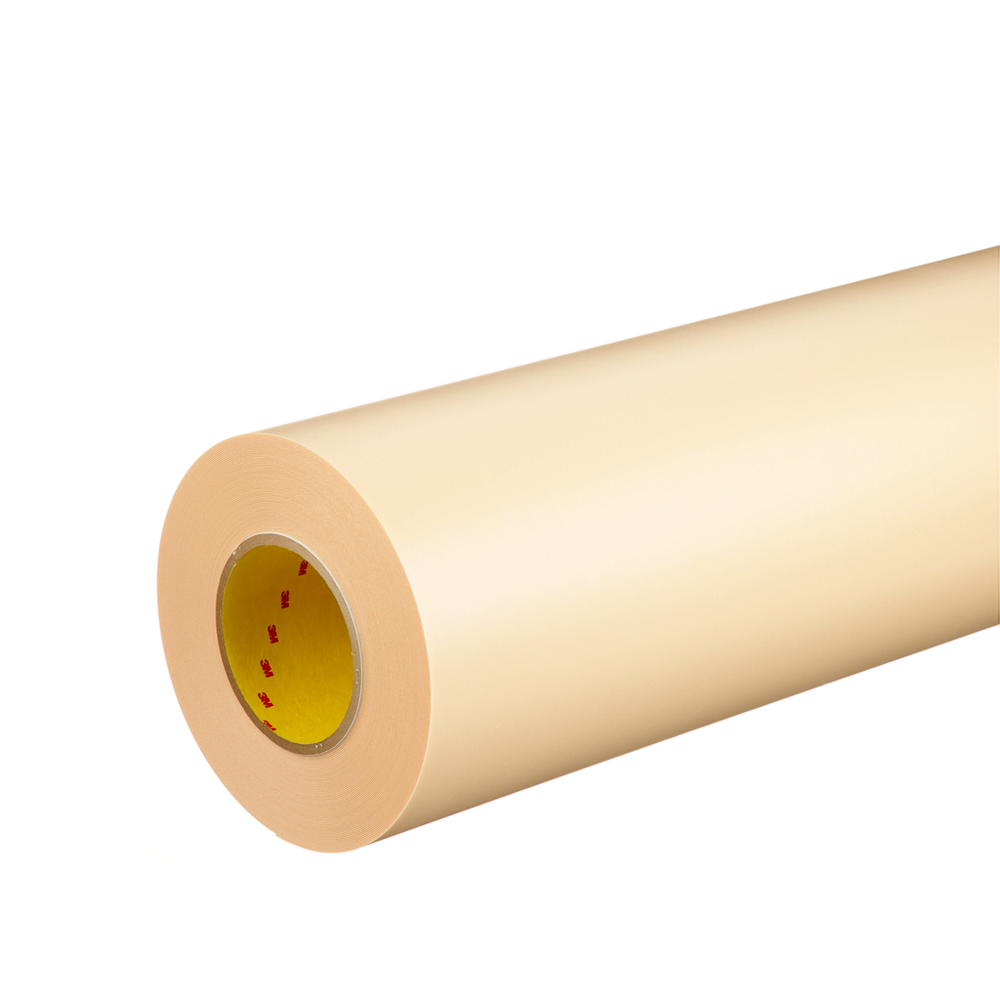

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H, Tan, 10 in x 36 yd, 15 mil, 1 Roll/Case - 7100314495

SKU: 7100314495
MPN: 7100314495
Lead Time: 18 working days.
UPC: 00068060005755
3M ID: 70007559241
$437.03 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This tan foam mounting tape provides high quality process print.

Features

  • Provides high quality process with halftone dots
  • Print plates mounted on E1115H will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Tan foam color indicates the process printing density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial)15
Overall Width (Imperial)10.0
Backing MaterialPolyethylene Foam
Overall Length (Metric)32.918
Application Thickness (Metric)0.381
Primary Liner Thickness (Imperial)4.5
Total Tape Thickness without Liner (Imperial) UOMmil
Warranty Period2 Years from Date of Manufacture
Overall Width (Metric) UOMmm
Application Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
IndustriesPrint
Primary LinerPolycoated Polyester
Overall Length (Imperial)36.0
Application Thickness (Imperial) UOMmil
Print Quality (Series)11 Series
Primary Liner Thickness (Metric)0.11
Product ColorTan
Adhesive TypeDifferential Acrylate
Urethane SleevesYes
Clean RemovalYes
Overall Width (Metric)254.0
Primary Liner Thickness (Imperial) UOMmil
Print QualityProcess Printing
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)15.0
Overall Length (Metric) UOMm
Shelf Life UOMMonth
