3M Products & Supplies

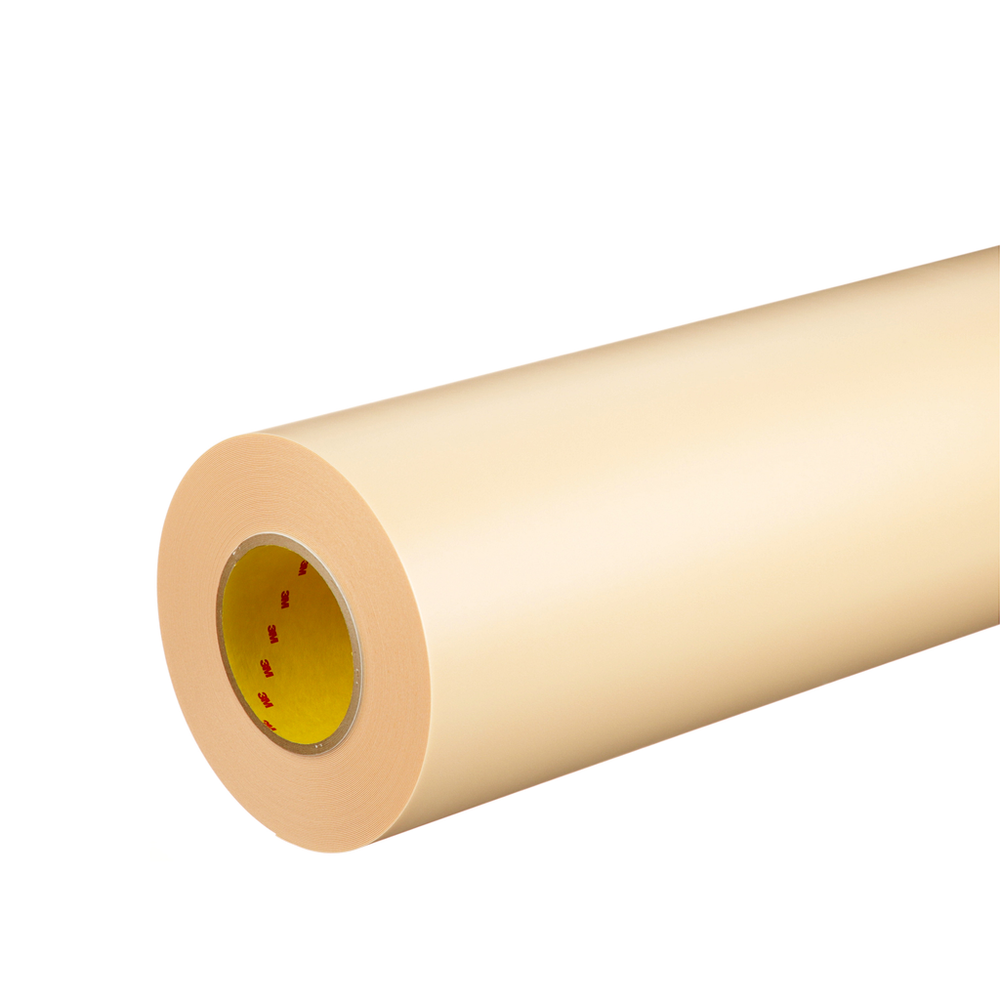

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H, Tan, 18 in x 36 yd, 15 mil, 1 Roll/Case - 7100314515

SKU: 7100314515
MPN: 7100314515
For an accurate lead time please contact us
UPC: 00068060006028
3M ID: 70007559191
$715.14 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This tan foam mounting tape provides high quality process print.

Features

  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1115H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Tan foam color indicates the process printing density foam
  • Provides high quality process with halftone dots
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Imperial)36.0
Clean RemovalYes
Overall Length (Metric) UOMm
Overall Length (Metric)32.918
Urethane SleevesYes
Overall Width (Imperial)18.0
Shelf Life UOMMonth
Overall Length (Imperial) UOMyd
Backing MaterialPolyethylene Foam
Product ColorTan
Application Thickness (Imperial)15
Print Quality (Series)11 Series
Warranty Period2 Years from Date of Manufacture
IndustriesPrint
Overall Width (Imperial) UOMin
Primary Liner Thickness (Metric)0.11
Primary LinerPolycoated Polyester
Overall Width (Metric)457.2
Print QualityProcess Printing
Primary Liner Thickness (Imperial)4.5
Application Thickness (Metric) UOMmm
Application Thickness (Metric)0.381
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Adhesive TypeDifferential Acrylate
