3M Products & Supplies

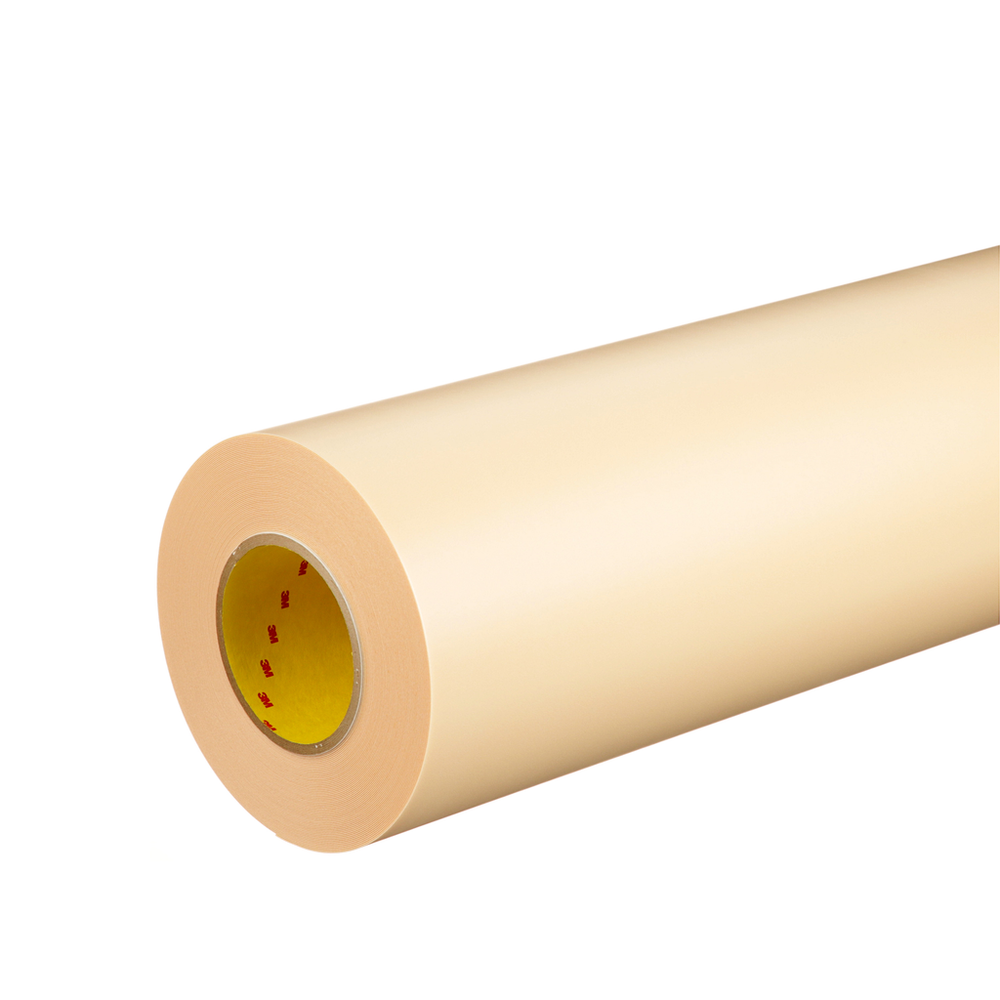

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H, Tan, 54 in x 36 yd, 15 mil, 1 Roll/Case - 7100314577

SKU: 7100314577
MPN: 7100314577
For an accurate lead time please contact us
UPC: 00068060006066
3M ID: 70007559209
$2,059.60 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1115H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This tan foam mounting tape provides high quality process print.

Features

  • Tan foam color indicates the process printing density foam
  • Provides high quality process with halftone dots
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1115H will have no air bubbles under the plate due to the air release feature designed into the tape
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Application Thickness (Imperial)15
Overall Length (Metric)32.918
Urethane SleevesYes
Backing MaterialPolyethylene Foam
Overall Width (Metric)1371.6
Clean RemovalYes
Overall Length (Imperial) UOMyd
Print Quality (Series)11 Series
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.11
Overall Length (Metric) UOMm
Application Thickness (Metric)0.381
Primary Liner Thickness (Imperial) UOMmil
Primary LinerPolycoated Polyester
Primary Liner Thickness (Imperial)4.5
Adhesive TypeDifferential Acrylate
Print QualityProcess Printing
Product ColorTan
Overall Width (Imperial)54.0
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
IndustriesPrint
Application Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Application Thickness (Metric) UOMmm
Warranty Period2 Years from Date of Manufacture
Overall Length (Imperial)36.0
