3M Products & Supplies

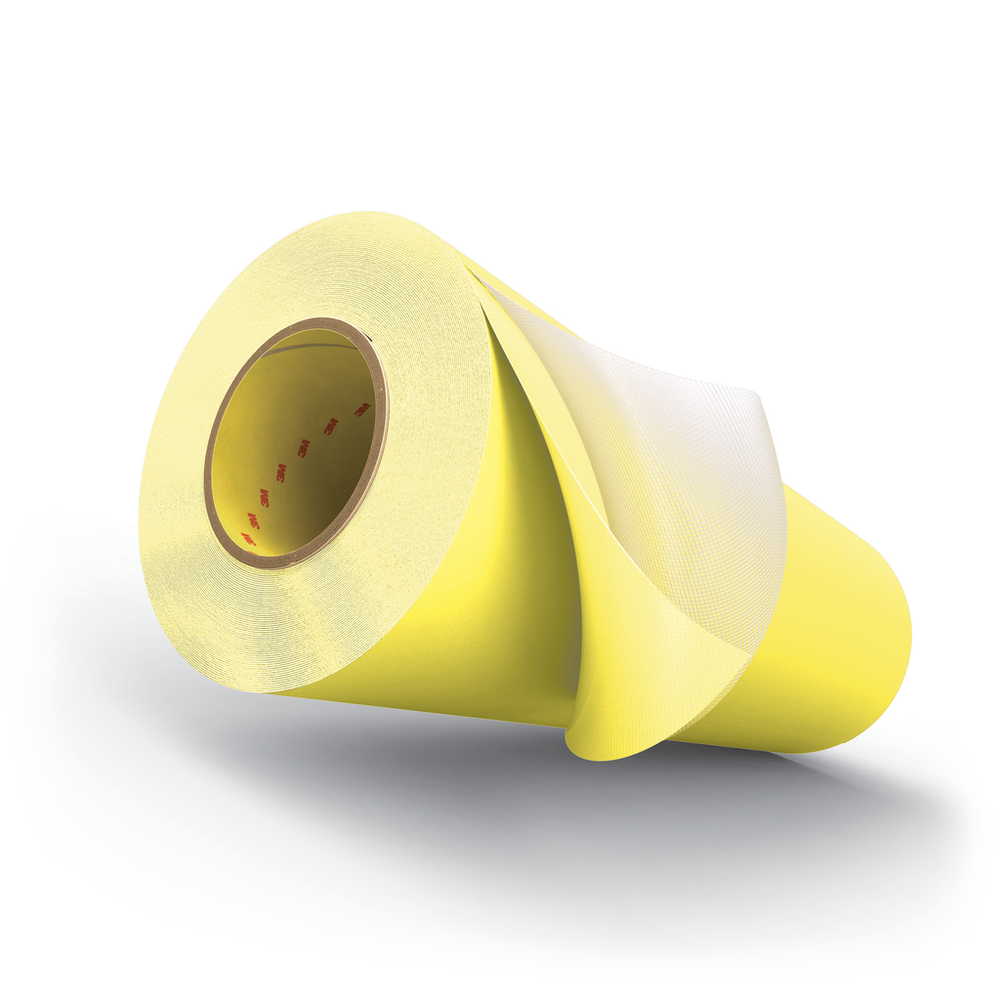

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H, Yellow, 12 in x 36 yd, 15 mil, 1 Roll/Case - 7100314489

SKU: 7100314489
MPN: 7100314489
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006172
3M ID: 70007559407
$670.91 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.

Features

  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • Yellow foam color indicates the medium soft density foam
  • Print plates mounted on E1315H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Imperial)12.0
Application Thickness (Metric)0.381
Overall Length (Metric)32.918
Primary Liner Thickness (Metric) UOMmm
Print Quality (Series)13 Series
Adhesive TypeDifferential Acrylate
Application Thickness (Imperial) UOMmil
Clean RemovalYes
Overall Length (Imperial)36.0
Primary LinerPolycoated Polyester
Product ColorYellow
Primary Liner Thickness (Metric)0.11
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Warranty Period2 Years from Date of Manufacture
Application Thickness (Metric) UOMmm
IndustriesPrint
Overall Width (Metric) UOMmm
ApplicationFlexographic Plate Mounting
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Backing MaterialPolyethylene Foam
Overall Width (Metric)304.8
Urethane SleevesYes
Application Thickness (Imperial)15
Print QualityCombination Printing - Medium Soft
