3M Products & Supplies

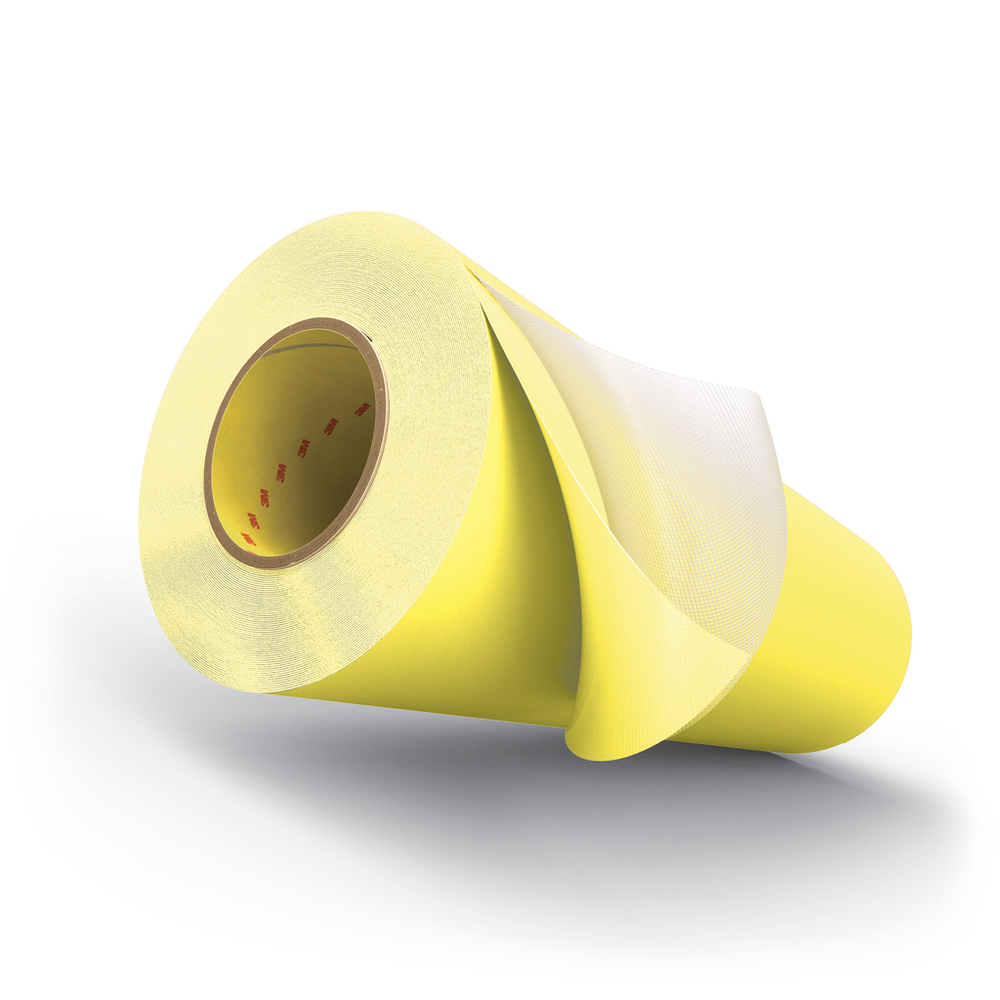

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H, Yellow, 11 in x 36 yd, 15 mil, Roll - 7100368358

SKU: 7100368358
MPN: 7100368358
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060553893
3M ID: UU013551104
$615.00 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.

Features

  • Yellow foam color indicates the medium soft density foam
  • Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
  • Print plates mounted on E1315H will have no air bubbles under the plate due to the air release feature designed into the tape
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
Spec Sheet



Downloads

Specifications

Shelf Life730
ApplicationFlexographic Plate Mounting
Application Thickness (Metric) UOMmm
Adhesive TypeDifferential Acrylate
Urethane SleevesYes
IndustriesPrint
Product ColorYellow
Shelf Life UOMMonth
Warranty Period2 Years from Date of Manufacture
Application Thickness (Imperial) UOMmil
Print Quality (Series)13 Series
Primary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Application Thickness (Metric)0.381
Overall Width (Metric)279.4
Backing MaterialPolyethylene Foam
Application Thickness (Imperial)15
Primary Liner Thickness (Metric)0.11
Country of OriginUnited States
Primary LinerPolycoated Polyester
Clean RemovalYes
Print QualityCombination Printing - Medium Soft
Overall Width (Metric) UOMmm
Overall Width (Imperial)11.0
