3M Products & Supplies

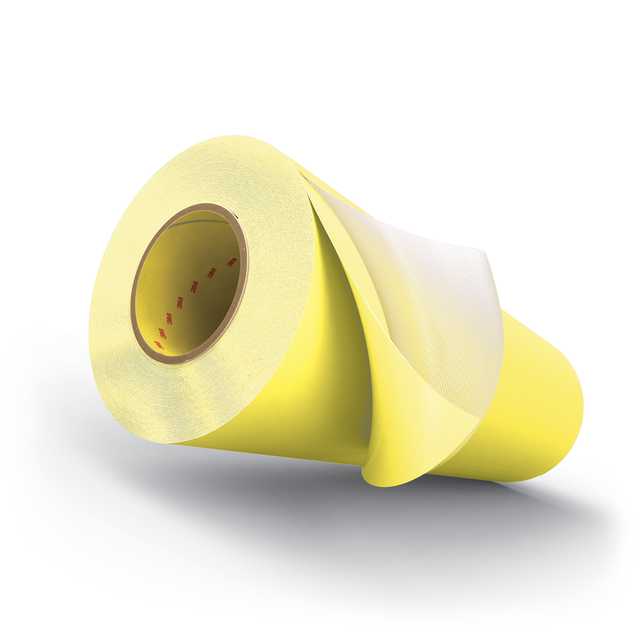

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H, Yellow, 10 in x 36 yd, 15 mil, 1 Roll/Case - 7100314607

SKU: 7100314607
MPN: 7100314607
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060006189
3M ID: 70007559373
$559.09 each
Hurry up! Current stock:

Product Description

3M™ Cushion-Mount™ Plus Plate Mounting Tape E1315H with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.

Features

  • Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
  • Yellow foam color indicates the medium soft density foam
  • Has higher plate side adhesion for challenging print conditions that use thick plates or small print sleeves
  • 0.015 inch (0.38 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to resist edge lifting on flexographic print plates
  • Print plates mounted on E1315H will have no air bubbles under the plate due to the air release feature designed into the tape
  • Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Print QualityCombination Printing - Medium Soft
Clean RemovalYes
Application Thickness (Imperial) UOMmil
ApplicationFlexographic Plate Mounting
Application Thickness (Imperial)15
Shelf Life UOMMonth
Overall Width (Imperial)10.0
Adhesive TypeDifferential Acrylate
Print Quality (Series)13 Series
Overall Width (Metric)254.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric)0.11
Product ColorYellow
Overall Width (Imperial) UOMin
IndustriesPrint
Urethane SleevesYes
Overall Length (Imperial)36.0
Primary Liner Thickness (Metric) UOMmm
Backing MaterialPolyethylene Foam
Primary LinerPolycoated Polyester
Warranty Period2 Years from Date of Manufacture
Overall Length (Metric) UOMm
Application Thickness (Metric)0.381
Overall Length (Metric)32.918
Application Thickness (Metric) UOMmm
