3M™ Diamond Lapping Film 661X, 9.0 Micron Roll, 1.378 in x 150 ft x 1 in, ASO - 7100240735

SKU: 7100240735
MPN: 7100240735
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060905128
3M ID: 60000337943
5 Digit UPC: 90512
$1,138.82 each
Hurry up! Current stock:

Product Description

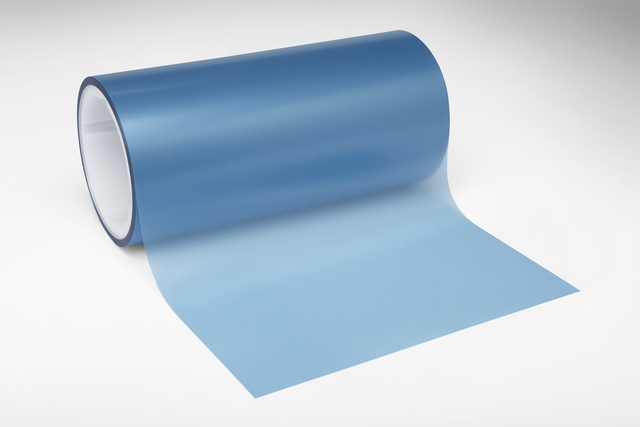

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.

Features

  • Fast cut, increased throughput
  • Uniform finish
  • Available in discs, sheets and rolls
  • Flatter surface and sharp edges
  • Most widely used diamond lapping film
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Diameter (Imperial)0.0
Product FormRoll
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Quartz; Sapphire; Stone
Overall Length (Metric)45.72
Center Hole Diameter (Imperial)0.0
Overall Width (Metric)35.001
Overall Length (Imperial)150.0
Specifications MetRoHS 2011/65/EU
Attachment TypePlain Back
Backing Thickness (Imperial)3.0
Product ColorBlue
Product UsageFiber Optic Connectors
Abrasive MaterialDiamond
Backing MaterialPolyester Film
Backing Thickness (Imperial) UOMmil
Overall Diameter (Metric)0.0
Overall Length (Imperial) UOMft
Overall Width (Metric) UOMmm
Overall Width (Imperial)1.378
Product Series661X
Center Hole Diameter (Metric)0.0
Overall Width (Imperial) UOMin
Micron Grade9 μm
Backing Thickness (Metric) UOMmm
Backing Thickness (Metric)0.076
ApplicationFlat Lapping; Polishing; Superfinishing
