3M Products & Supplies

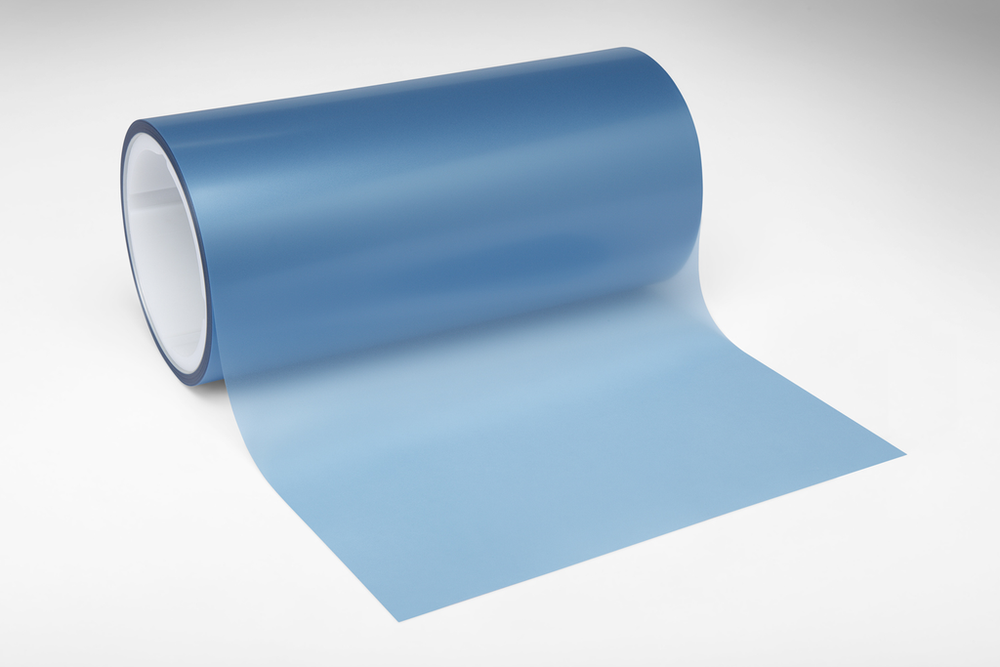

3M™ Diamond Lapping Film 661X, 9.0 Micron Roll, 4 in x 50 ft x 3 in ASO, 1/Case - 7000000303

SKU: 7000000303
MPN: 7000000303
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111499603
3M ID: 60070008382
5 Digit UPC: 49960
$1,234.76 each
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.

Features

  • Most widely used diamond lapping film
  • Uniform finish
  • Fast cut, increased throughput
  • Flatter surface and sharp edges
  • Available in discs, sheets and rolls
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Attachment TypePlain Back
Micron Grade9 μm
Overall Length (Imperial)50.0
Overall Width (Imperial)4.0
Product Series661X
Backing Thickness (Imperial)3.0
Backing Thickness (Imperial) UOMmil
Overall Length (Metric)15.24
Center Hole Diameter (Imperial)0.0
Specifications MetRoHS 2011/65/EU
Overall Diameter (Imperial)0.0
Overall Length (Imperial) UOMft
Overall Width (Metric) UOMmm
Center Hole Diameter (Metric)0.0
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Quartz; Sapphire; Stone
Overall Width (Metric)101.6
Overall Diameter (Metric)0.0
Product UsageFiber Optic Connectors
Backing Thickness (Metric)0.076
Overall Length (Metric) UOMm
ApplicationFlat Lapping; Polishing; Superfinishing
Product FormRoll
Backing Thickness (Metric) UOMmm
Product ColorBlue
Abrasive MaterialDiamond
Backing MaterialPolyester Film
