3M Products & Supplies

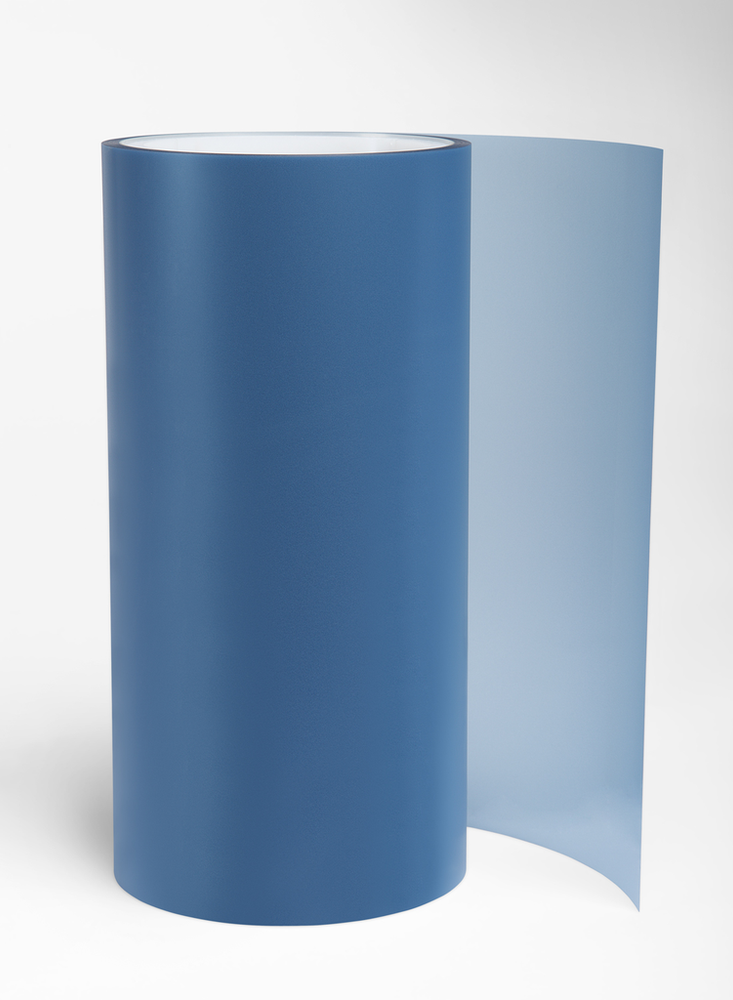

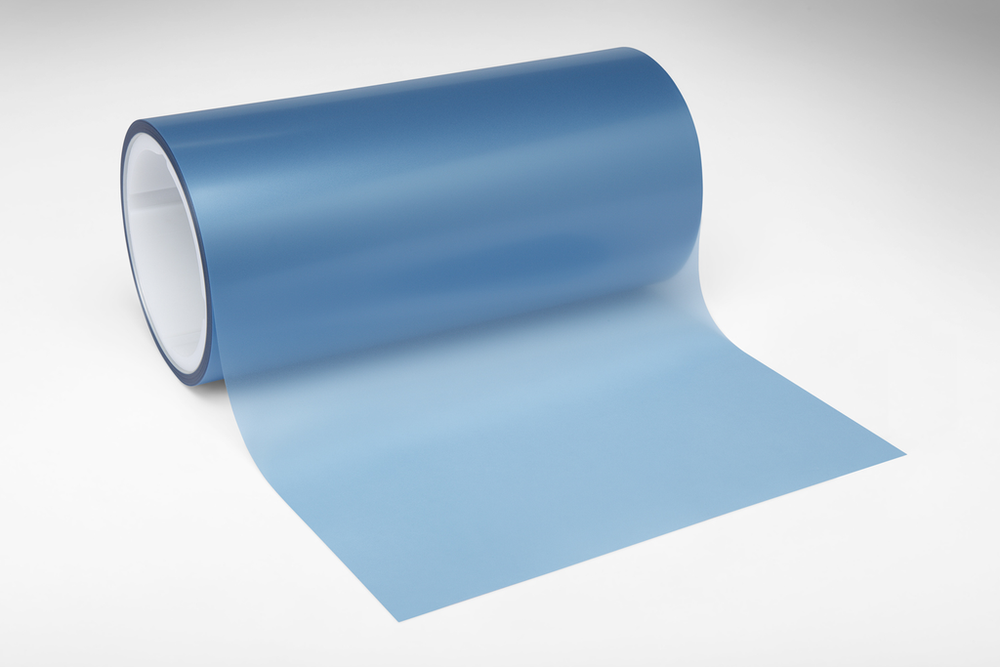

3M™ Diamond Lapping Film 661X, 9.0 Micron Roll, 8 in x 50 ft x 3 in ASO, 1/Case - 7000000304

SKU: 7000000304
MPN: 7000000304
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111499641
3M ID: 60070008424
5 Digit UPC: 49964
$2,208.62 each
Hurry up! Current stock:

Product Description

3M™ Diamond Lapping Film Roll 661X is made from precisely graded diamond particles coated on a polyester film. 3M film 661X provides a consistent, repeatable finish on extremely hard materials while delivering fast cut and increased throughput.

Features

  • Uniform finish
  • Available in discs, sheets and rolls
  • Fast cut, increased throughput
  • Most widely used diamond lapping film
  • Flatter surface and sharp edges
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Diameter (Imperial)0.0
Overall Length (Imperial) UOMft
Center Hole Diameter (Imperial)0.0
Overall Width (Metric)203.2
Micron Grade9 μm
Backing Thickness (Metric) UOMmm
SubstrateCarbide; Ceramic; Composite; Exotic Alloy; Glass; Quartz; Sapphire; Stone
Product ColorBlue
Overall Length (Metric)15.24
Overall Length (Imperial)50.0
Overall Length (Metric) UOMm
Center Hole Diameter (Metric)0.0
Overall Width (Imperial)8.0
Product UsageFiber Optic Connectors
Overall Diameter (Metric)0.0
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Backing Thickness (Imperial)3.0
Product FormRoll
Backing Thickness (Imperial) UOMmil
Abrasive MaterialDiamond
Attachment TypePlain Back
ApplicationFlat Lapping; Polishing; Superfinishing
Backing Thickness (Metric)0.076
Product Series661X
Backing MaterialPolyester Film
Specifications MetRoHS 2011/65/EU
