3M Products & Supplies

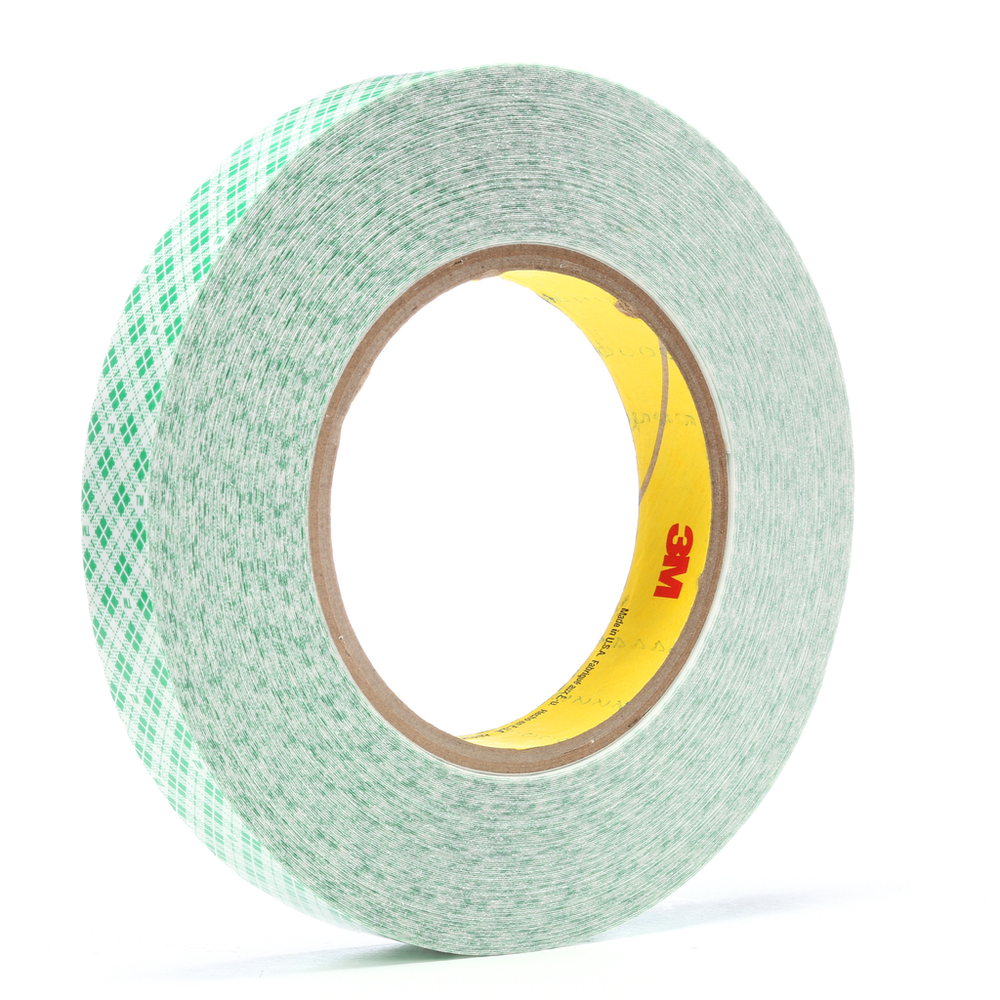

3M™ Double Coated Film Tape 9589, White, 3/4 in x 36 yd, 9 mil, 48 Roll/Case - 7000048619

Sold As: 48-Pack
SKU: 7000048619
MPN: 7000048619
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200232046
3M ID: 70006162583
5 Digit UPC: 23204
$1,144.69 ($23.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Film Tape 9589 features a high-density polyethylene carrier with synthetic rubber adhesive on a densified kraft paper liner. It combines high initial adhesion and good holding power to ensure it bonds to a variety of materials. The paper liner has been specially treated to improve its strength and removability characteristics.

Features

  • Adhesive removes cleanly from many surfaces to ensure a relatively easy clean-up process
  • Excellent quick stick and high adhesion ensure a reliable bond to a variety of substrates
  • High density polyethylene carrier provides dimensional stability and tears by hand
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Length (Metric) UOMm
Carrier Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)9.0
Primary Liner62# Densified Kraft Paper (DK)
Units per Case48.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)3.0
Core Size (Metric)76.2
Face Side Adhesive Thickness (Metric)0.076
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.91
Overall Length (Imperial)36.0
Adhesive TypeSynthetic Rubber
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Indoor/OutdoorBoth
IndustriesConstruction, Converter Solutions, General Industrial
Minimum Operating Temperature (Celsius)-40.0
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Master Size Length (Metric) UOMm
Overall Thickness (Imperial)3.0
Overall Width (Metric)19.05
Overall Width (Imperial)0.7
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.09
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.228
Carrier MaterialHigh Density Polyethylene HDPE
Backing (Carrier) MaterialHDPE
Master Size Length (Metric)131.7
Minimum Operating Temperature (Celsius) UOMDegree
Product FormRoll
Carrier Thickness0.178472222222222
Product ColorWhite
Maximum Operating Temperature (Fahrenheit)120.0
Core Size (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)0.178
Carrier Thickness UOMmil
Overall Thickness (Imperial) UOMmil
Core Size (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.076
Maximum Operating Temperature (Celsius)49.0
Core Size (Imperial)3.0
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Master Size Width (Metric) UOMcm
Primary Liner Thickness (Imperial) UOMmil
Master Size Width (Metric)66.0
Primary Liner Thickness (Imperial)3.7
Face Side Adhesive Thickness (Imperial)3.0
Carrier Thickness (Metric)0.08
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
