3M Products & Supplies

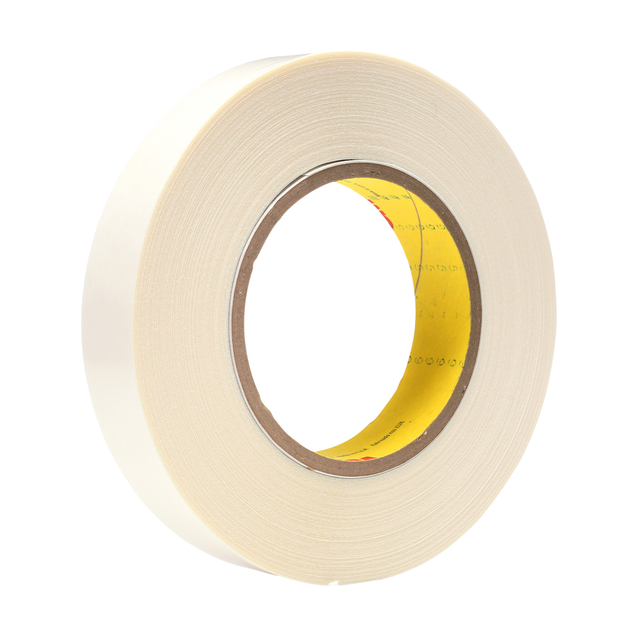

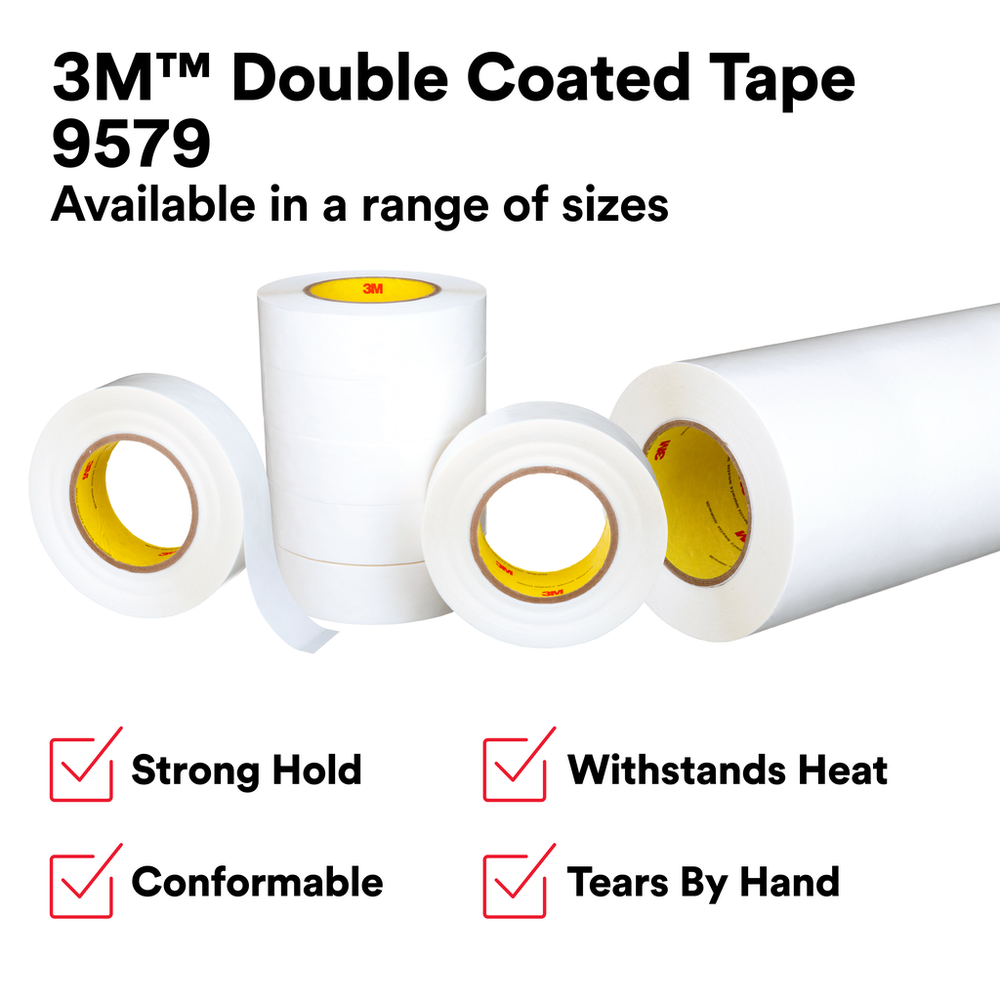

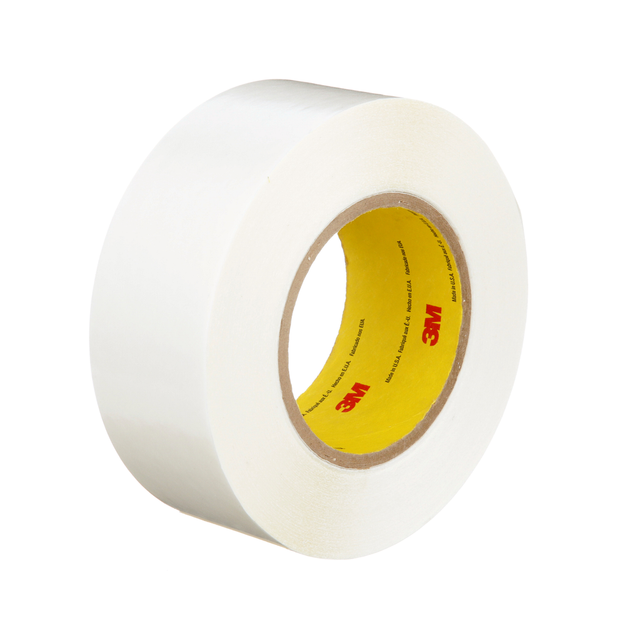

3M™ Double Coated Tape 9579, White, 3/4 in x 36 yd, 9 mil, 48 Roll/Case - 7000123507

Sold As: 48-Pack
SKU: 7000123507
MPN: 7000123507
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658723
3M ID: 70006151966
5 Digit UPC: 65872
$549.59 ($11.45 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • CLEAN REMOVAL: Offers one-strip removal from many materials
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Face Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner ColorWhite
Master Size Width (Metric) UOMcm
Specifications MetFDA 21 CFR
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Thickness (Imperial) UOMmil
Master Size Length (Metric)131.7
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.75
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Carrier Thickness3.0
Face Side Adhesive Thickness (Imperial)3.0
Master Size Width (Metric)69.0
Adhesive TypeSynthetic Rubber
Carrier Thickness (Metric) UOMmm
Carrier MaterialHigh Density Polyethylene HDPE
Primary Liner Thickness (Imperial) UOMmil
Core Size (Metric) UOMmm
Core Size (Metric)76.2
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)19.05
Carrier Thickness (Metric)0.076
Maximum Operating Temperature (Celsius)49.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial)3.0
Number of Adhesive SidesDouble-sided
Overall Length (Metric) UOMm
Carrier Thickness UOMmil
Core Size (Imperial) UOMin
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Indoor/OutdoorBoth
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Master Size Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit)120.0
Primary Liner Thickness (Imperial)4.0
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner62# Densified Kraft Paper (DK)
Back Side Adhesive Thickness (Imperial) UOMmil
Product ColorWhite
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Units per Case48.0
Total Tape Thickness without Liner (Imperial)9.0
Primary Liner Thickness (Metric)0.1
Overall Width (Metric) UOMmm
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.076
Total Tape Thickness without Liner (Metric)0.23
Backing (Carrier) MaterialHDPE
Back Side Adhesive Thickness (Imperial)3.0
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMMonth
Core Size (Imperial)3.0
Face Side Adhesive Thickness (Metric)0.076
Product FormRoll
Overall Thickness (Imperial)9.0
