3M Products & Supplies

3M™ Double Coated Tape 9579, White, 1/2 in x 36 yd, 9 mil, 72 Roll/Case - 7000123508

Sold As: 72-Pack
SKU: 7000123508
MPN: 7000123508
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658730
3M ID: 70006151974
5 Digit UPC: 65873
$549.59 ($7.63 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
  • CLEAN REMOVAL: Offers one-strip removal from many materials

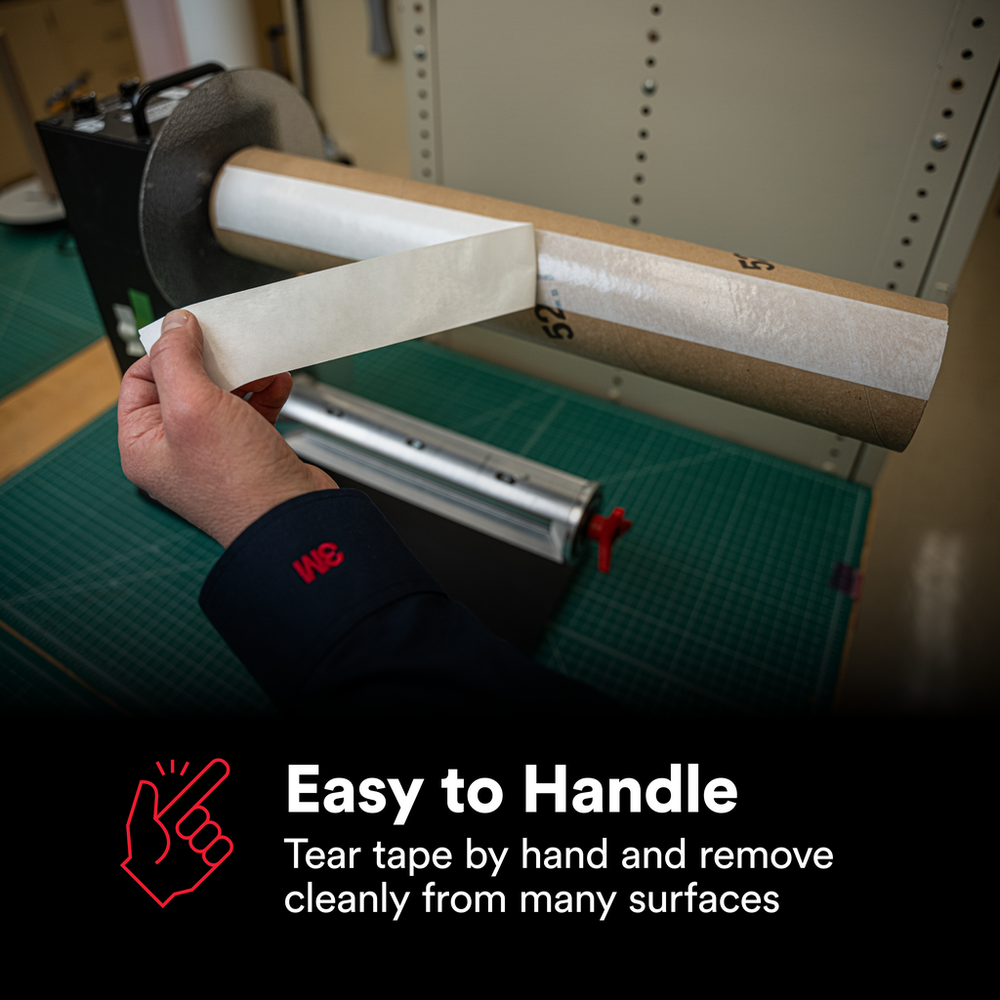

  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric)0.23
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner62# Densified Kraft Paper (DK)
Shelf Life UOMMonth
Carrier Thickness UOMmil
Primary Liner Thickness (Imperial)4.0
Indoor/OutdoorBoth
Core Size (Imperial)3.0
Core Size (Metric)76.2
Total Tape Thickness without Liner (Imperial)9.0
Overall Thickness (Imperial)9.0
Overall Length (Imperial) UOMyd
Carrier Thickness (Metric)0.076
Backing (Carrier) Thickness (Imperial)3.0
Master Size Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Imperial) UOMmil
Product FormRoll
Adhesive TypeSynthetic Rubber
Core Size (Metric) UOMmm
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Overall Length (Metric)32.91
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Imperial) UOMmil
Master Size Width (Metric) UOMcm
Backing (Carrier) Thickness (Metric)0.076
Master Size Length (Metric) UOMm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)0.5
Carrier Thickness (Metric) UOMmm
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Units per Case72.0
Minimum Operating Temperature (Celsius)-40.0
Number of Adhesive SidesDouble-sided
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial)36.0
Primary Liner Thickness (Metric)0.1
Maximum Operating Temperature (Fahrenheit)120.0
Master Size Length (Metric)131.7
Specifications MetFDA 21 CFR
Back Side Adhesive Thickness (Imperial)3.0
Maximum Operating Temperature (Celsius)49.0
Master Size Width (Imperial)27.0
Overall Width (Metric)12.7
Master Size Length (Imperial)144.0
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)3.0
Carrier MaterialHigh Density Polyethylene HDPE
Product ColorWhite
Master Size Width (Metric)69.0
Primary Liner ColorWhite
Backing (Carrier) MaterialHDPE
Master Size Length (Imperial) UOMLinear
Overall Length (Metric) UOMm
Primary Liner Thickness (Metric) UOMmm
Carrier Thickness3.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Core Size (Imperial) UOMin
Face Side Adhesive Thickness (Metric)0.076
Backing (Carrier) Thickness (Imperial) UOMmil
