3M Products & Supplies

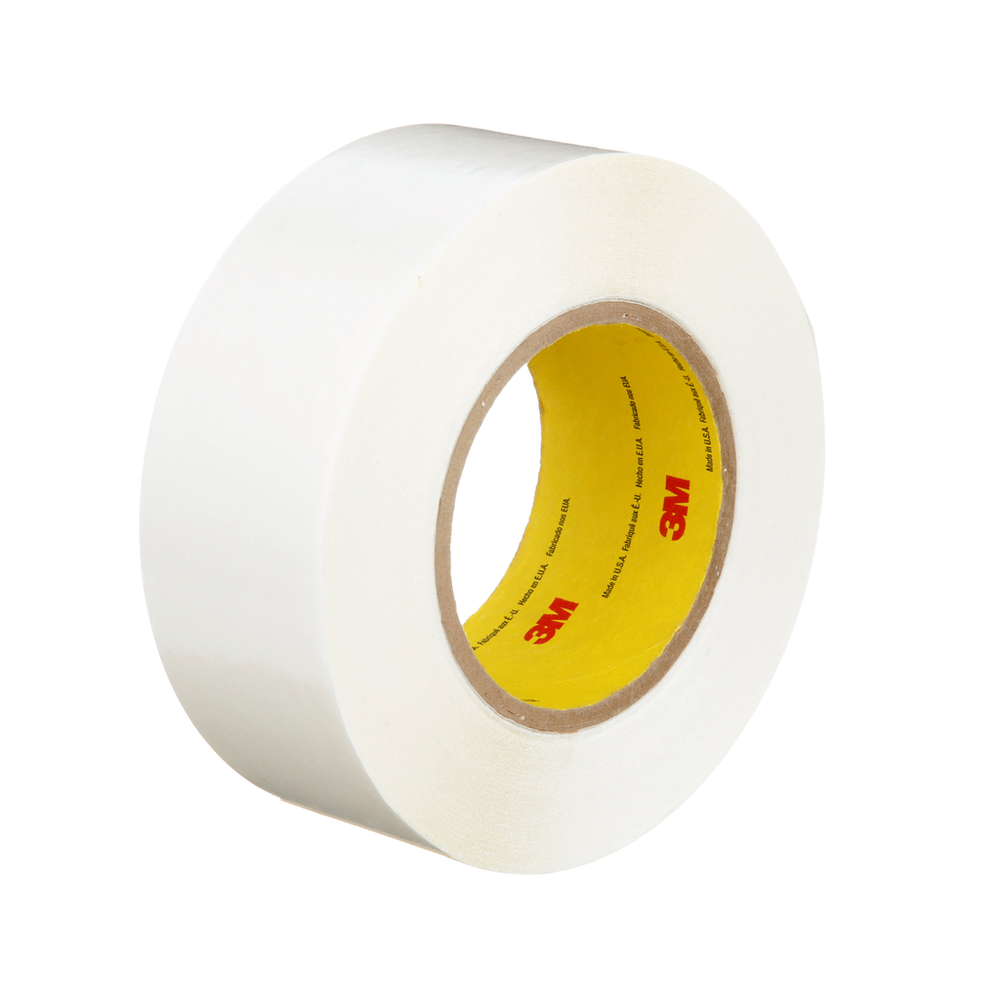

3M™ Double Coated Tape 9579, White, 3 in x 36 yd, 9 mil, 12 Roll/Case - 7010373864

Sold As: 12-Pack
SKU: 7010373864
MPN: 7010373864
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396199
3M ID: 70006249000
5 Digit UPC: 39619
$549.88 ($45.82 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
  • CLEAN REMOVAL: Offers one-strip removal from many materials
  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Product FormRoll
Total Tape Thickness without Liner (Imperial)9.0
Core Size (Imperial)3.0
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Backing (Carrier) Thickness (Imperial)3.0
Back Side Adhesive Thickness (Imperial)3.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Master Size Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Master Size Length (Metric)131.7
Specifications MetFDA 21 CFR
Indoor/OutdoorBoth
Maximum Operating Temperature (Celsius)49.0
Primary Liner Thickness (Metric)0.1
Master Size Width (Metric)69.0
Carrier MaterialHigh Density Polyethylene HDPE
Number of Adhesive SidesDouble-sided
Core Size (Imperial) UOMin
Overall Length (Metric)32.91
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.076
Product ColorWhite
Backing (Carrier) Thickness (Imperial) UOMmil
Carrier Thickness (Metric) UOMmm
Overall Width (Metric)76.2
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Adhesive TypeSynthetic Rubber
Overall Length (Metric) UOMm
Master Size Width (Metric) UOMcm
Units per Case12.0
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Backing (Carrier) MaterialHDPE
Minimum Operating Temperature (Celsius)-40.0
Core Size (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner62# Densified Kraft Paper (DK)
Primary Liner ColorWhite
Face Side Adhesive Thickness (Imperial)3.0
Face Side Adhesive Thickness (Metric)0.076
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Carrier Thickness (Metric)0.076
Carrier Thickness3.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.23
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Carrier Thickness UOMmil
Shelf Life UOMMonth
Core Size (Metric)76.2
Overall Thickness (Imperial)9.0
Primary Liner Thickness (Imperial)4.0
Overall Width (Imperial)3.0
Maximum Operating Temperature (Fahrenheit)120.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)36.0
