3M Products & Supplies

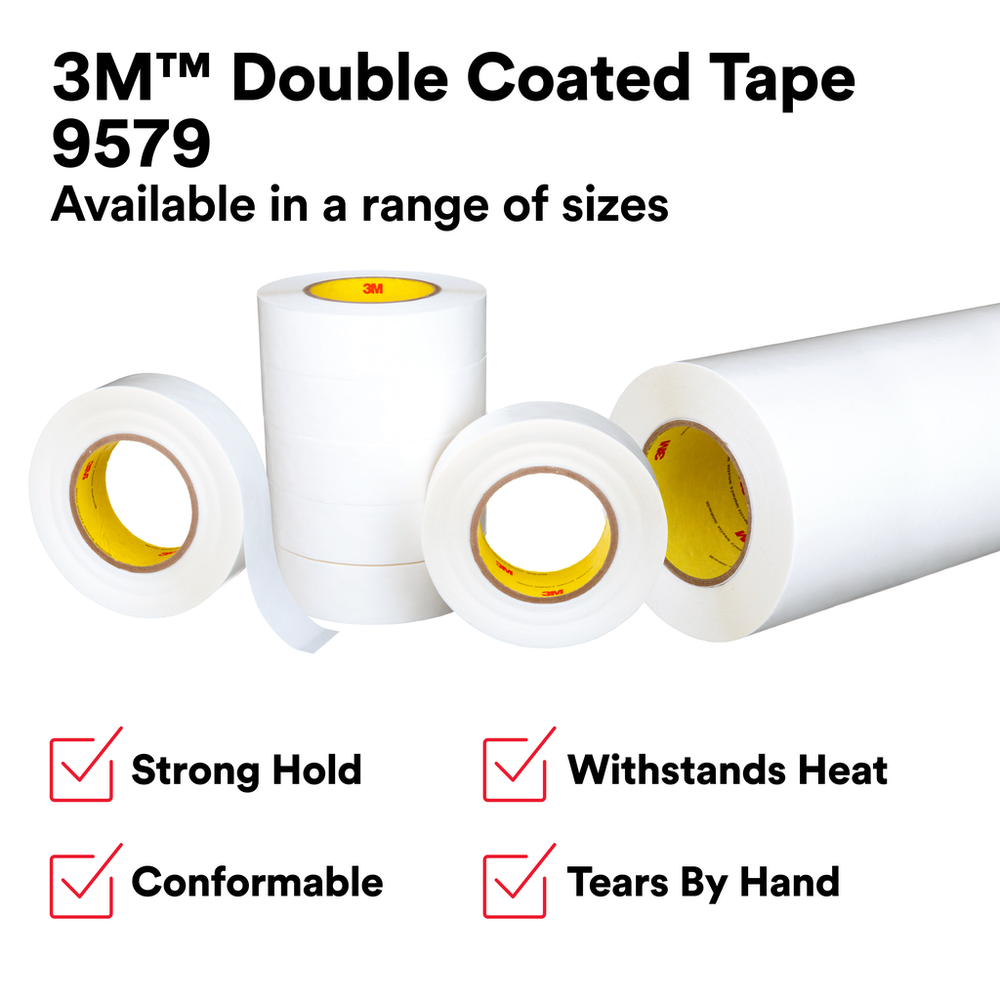

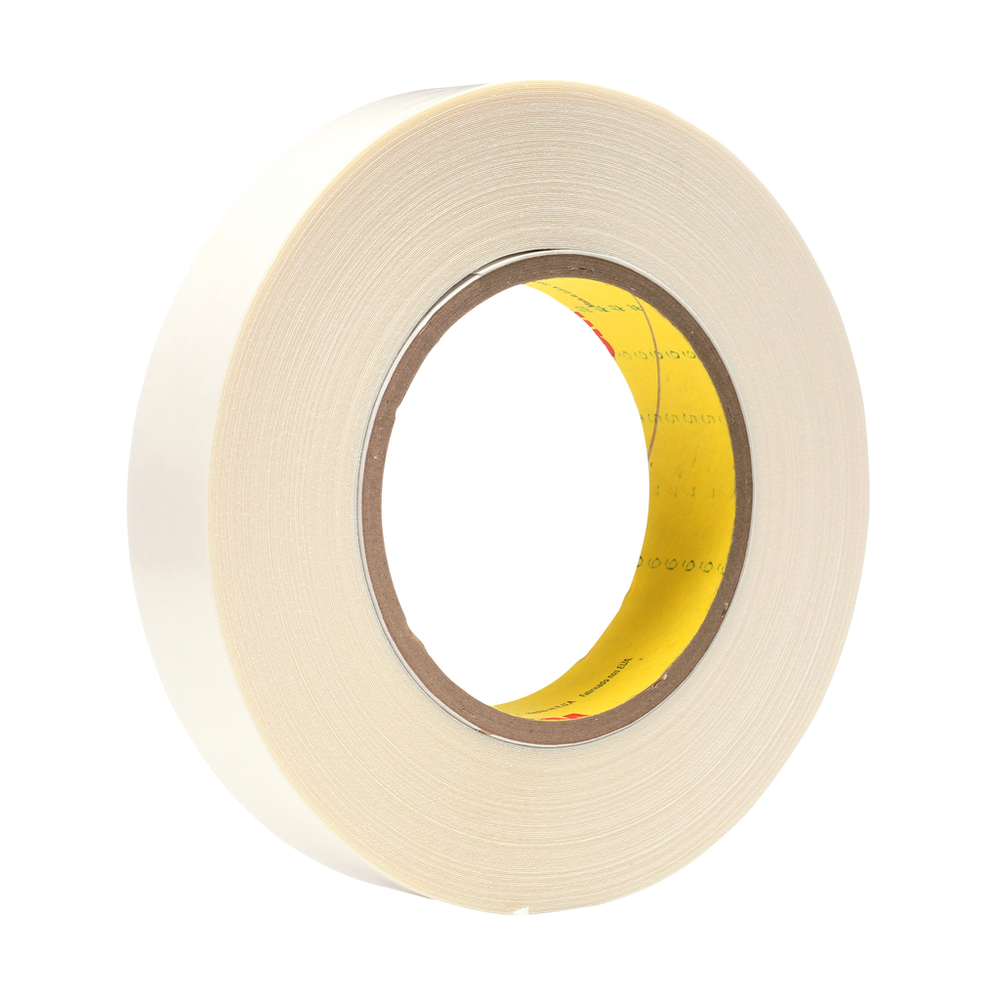

3M™ Double Coated Tape 9579, White, 1 in x 36 yd, 9 mil, 36 Roll/Case - 7000123506

Sold As: 36-Pack
SKU: 7000123506
MPN: 7000123506
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658716
3M ID: 70006151958
5 Digit UPC: 65871
$549.30 ($15.26 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • CLEAN REMOVAL: Offers one-strip removal from many materials
  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Overall Length (Metric) UOMm
Master Size Width (Metric) UOMcm
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.076
Product FormRoll
Backing (Carrier) Thickness (Imperial)3.0
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)120.0
Number of Adhesive SidesDouble-sided
Carrier MaterialHigh Density Polyethylene HDPE
Backing (Carrier) MaterialHDPE
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Primary Liner ColorWhite
Overall Length (Imperial)36.0
Primary Liner Thickness (Metric)0.1
Carrier Thickness3.0
Total Tape Thickness without Liner (Metric)0.23
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial)4.0
Adhesive TypeSynthetic Rubber
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Units per Case36.0
Back Side Adhesive Thickness (Imperial)3.0
Indoor/OutdoorBoth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Imperial)9.0
Overall Width (Imperial)1.0
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Carrier Thickness (Metric) UOMmm
Core Size (Metric)76.2
Core Size (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Overall Thickness (Imperial)9.0
Master Size Length (Metric) UOMm
Master Size Length (Metric)131.7
Maximum Operating Temperature (Celsius)49.0
Primary Liner62# Densified Kraft Paper (DK)
Carrier Thickness UOMmil
Carrier Thickness (Metric)0.076
Overall Width (Imperial) UOMin
Master Size Width (Metric)69.0
Minimum Operating Temperature (Fahrenheit)-40.0
Product ColorWhite
Overall Thickness (Imperial) UOMmil
Specifications MetFDA 21 CFR
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)25.4
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.076
Backing (Carrier) Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)3.0
Shelf Life UOMMonth
Core Size (Imperial)3.0
Core Size (Metric) UOMmm
