3M Products & Supplies

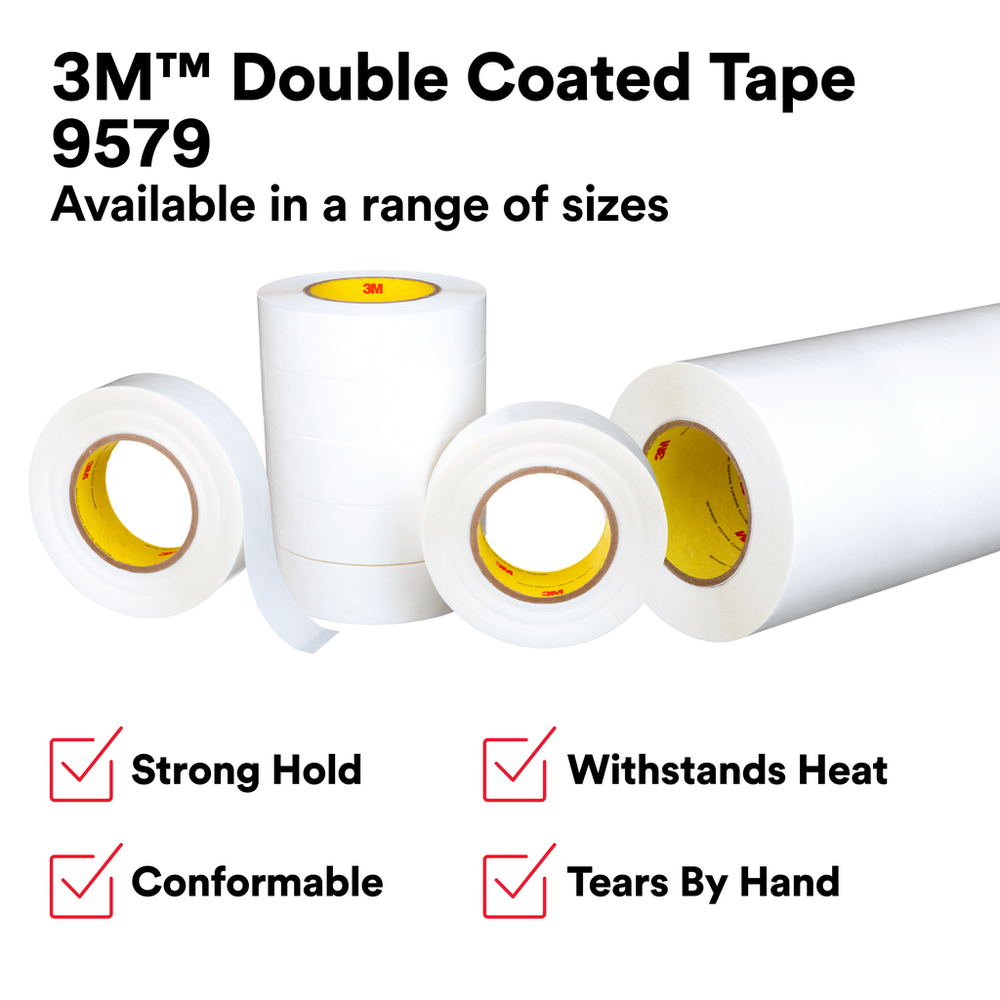

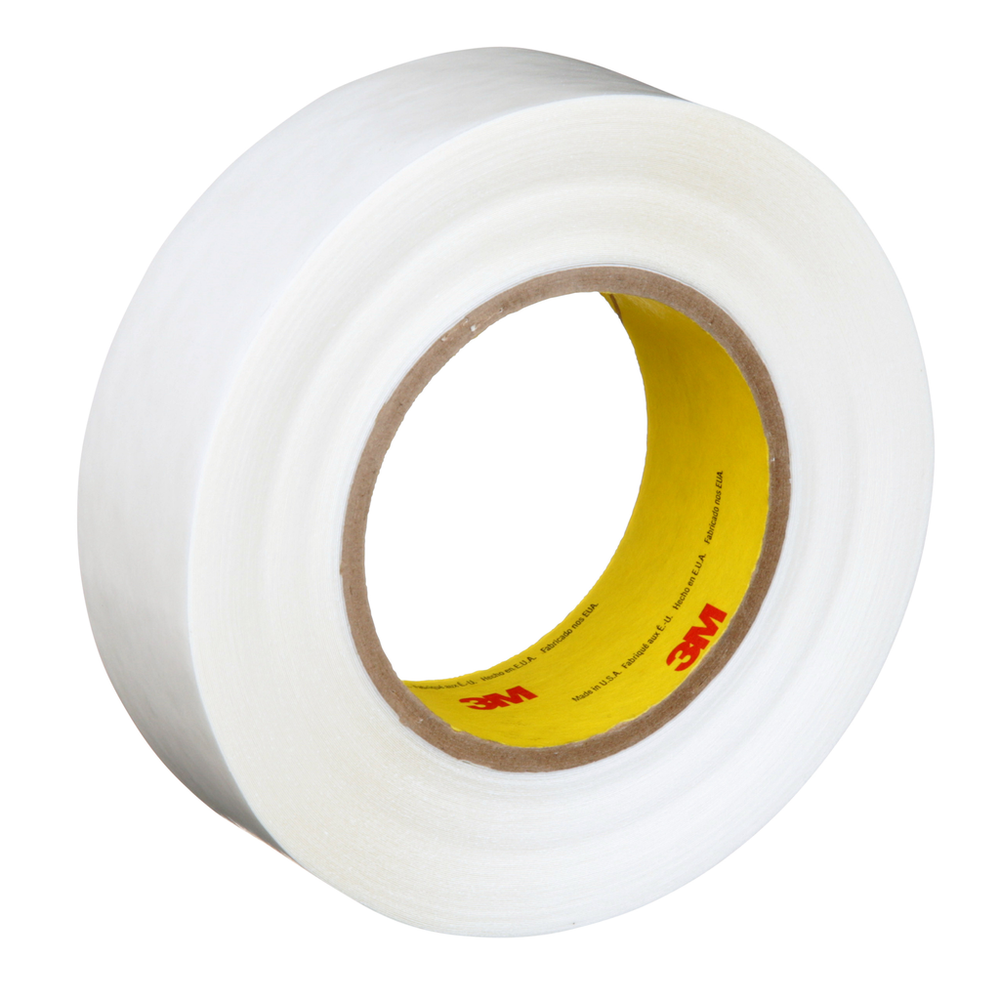

3M™ Double Coated Tape 9579, White, 1 1/2 in x 36 yd, 9 mil, 24 Roll/Case - 7000123505

Sold As: 24-Pack
SKU: 7000123505
MPN: 7000123505
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658709
3M ID: 70006151941
5 Digit UPC: 65870
$549.98 ($22.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • CLEAN REMOVAL: Offers one-strip removal from many materials
  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Units per Case24.0
Primary Liner Thickness (Imperial)4.0
Core Size (Metric)76.2
Primary Liner Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Master Size Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.1
Primary Liner ColorWhite
Carrier Thickness3.0
Master Size Width (Metric)69.0
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Thickness (Imperial)9.0
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Total Tape Thickness without Liner (Imperial)9.0
Total Tape Thickness without Liner (Metric)0.23
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Carrier Thickness (Metric) UOMmm
Specifications MetFDA 21 CFR
Overall Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.5
Core Size (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorWhite
Minimum Operating Temperature (Fahrenheit)-40.0
Master Size Length (Metric)131.7
Maximum Operating Temperature (Fahrenheit)120.0
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)49.0
Overall Length (Metric)32.91
Backing (Carrier) MaterialHDPE
Carrier MaterialHigh Density Polyethylene HDPE
Face Side Adhesive Thickness (Imperial)3.0
Product FormRoll
Shelf Life UOMMonth
Back Side Adhesive Thickness (Imperial)3.0
Carrier Thickness (Metric)0.076
Indoor/OutdoorBoth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Adhesive TypeSynthetic Rubber
Primary Liner Thickness (Imperial) UOMmil
Carrier Thickness UOMmil
Core Size (Imperial)3.0
Overall Width (Metric)38.1
Face Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Master Size Width (Metric) UOMcm
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.076
Overall Length (Imperial) UOMyd
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.076
Backing (Carrier) Thickness (Imperial)3.0
Primary Liner62# Densified Kraft Paper (DK)
Number of Adhesive SidesDouble-sided
Minimum Operating Temperature (Celsius)-40.0
