3M Products & Supplies

3M™ Double Coated Tape 9579, White, 1 1/2 in x 360 yd, 9 mil, 6 Roll/Case - 7010373728

Sold As: 36000-Pack
SKU: 7010373728
MPN: 7010373728
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200974274
3M ID: 70006411261
5 Digit UPC: 97427
$8,245,336.14 ($229.04 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • CLEAN REMOVAL: Offers one-strip removal from many materials

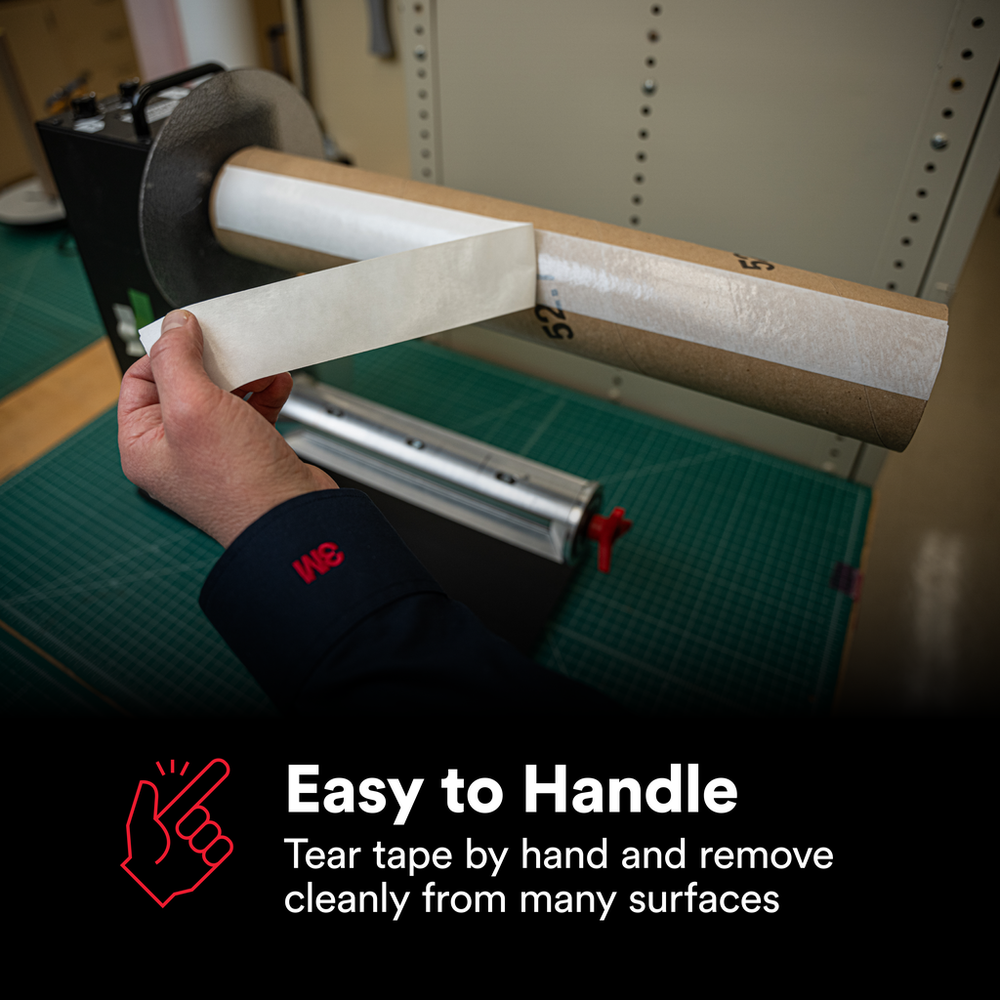

  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)

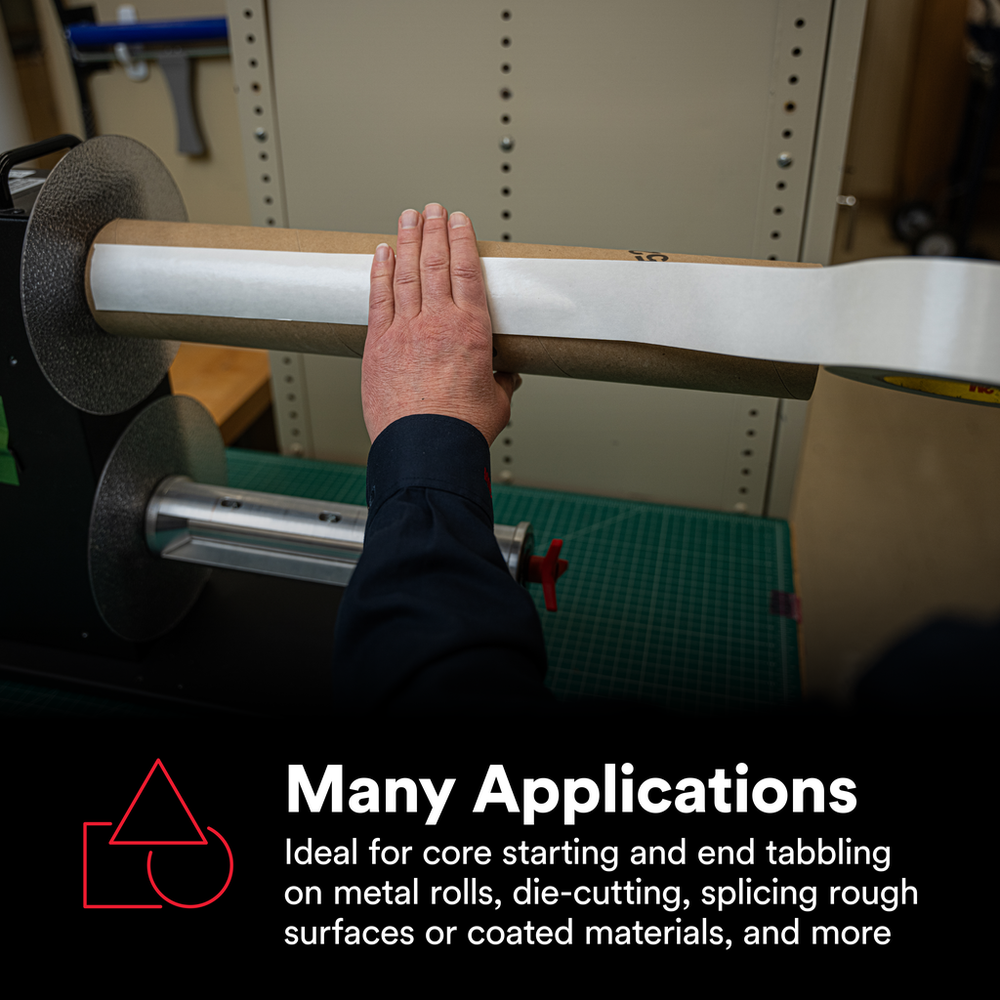

  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Master Size Width (Metric)69.0
Units per Case6.0
Carrier Thickness (Metric)0.076
Primary Liner ColorWhite
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Overall Thickness (Imperial)9.0
Carrier Thickness3.0
Shelf Life UOMMonth
Overall Length (Imperial)360.0
Face Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorWhite
Maximum Operating Temperature (Fahrenheit)120.0
Primary Liner Thickness (Imperial)4.0
Core Size (Metric)76.2
Maximum Operating Temperature (Celsius)49.0
Backing (Carrier) Thickness (Imperial)3.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.076
Overall Length (Metric)329.18
Carrier MaterialHigh Density Polyethylene HDPE
Carrier Thickness (Metric) UOMmm
Master Size Length (Metric)131.7
Face Side Adhesive Thickness (Metric)0.076
Indoor/OutdoorBoth
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Core Size (Imperial)3.0
Core Size (Metric) UOMmm
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Imperial)3.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Total Tape Thickness without Liner (Imperial) UOMmil
Master Size Length (Metric) UOMm
Primary Liner62# Densified Kraft Paper (DK)
Specifications MetFDA 21 CFR
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialHDPE
Total Tape Thickness without Liner (Metric)0.23
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)1.5
Number of Adhesive SidesDouble-sided
Total Tape Thickness without Liner (Imperial)9.0
Adhesive TypeSynthetic Rubber
Primary Liner Thickness (Metric)0.1
Overall Width (Metric)38.1
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial)3.0
Product FormRoll
Master Size Width (Metric) UOMcm
Carrier Thickness UOMmil
