3M Products & Supplies

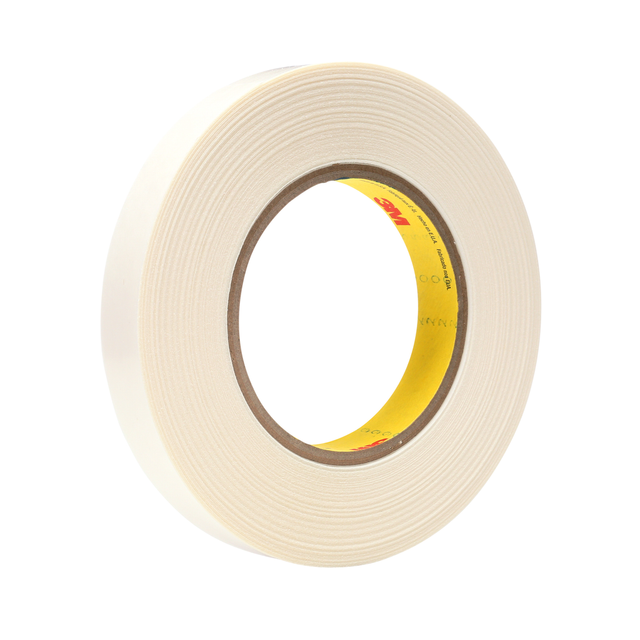

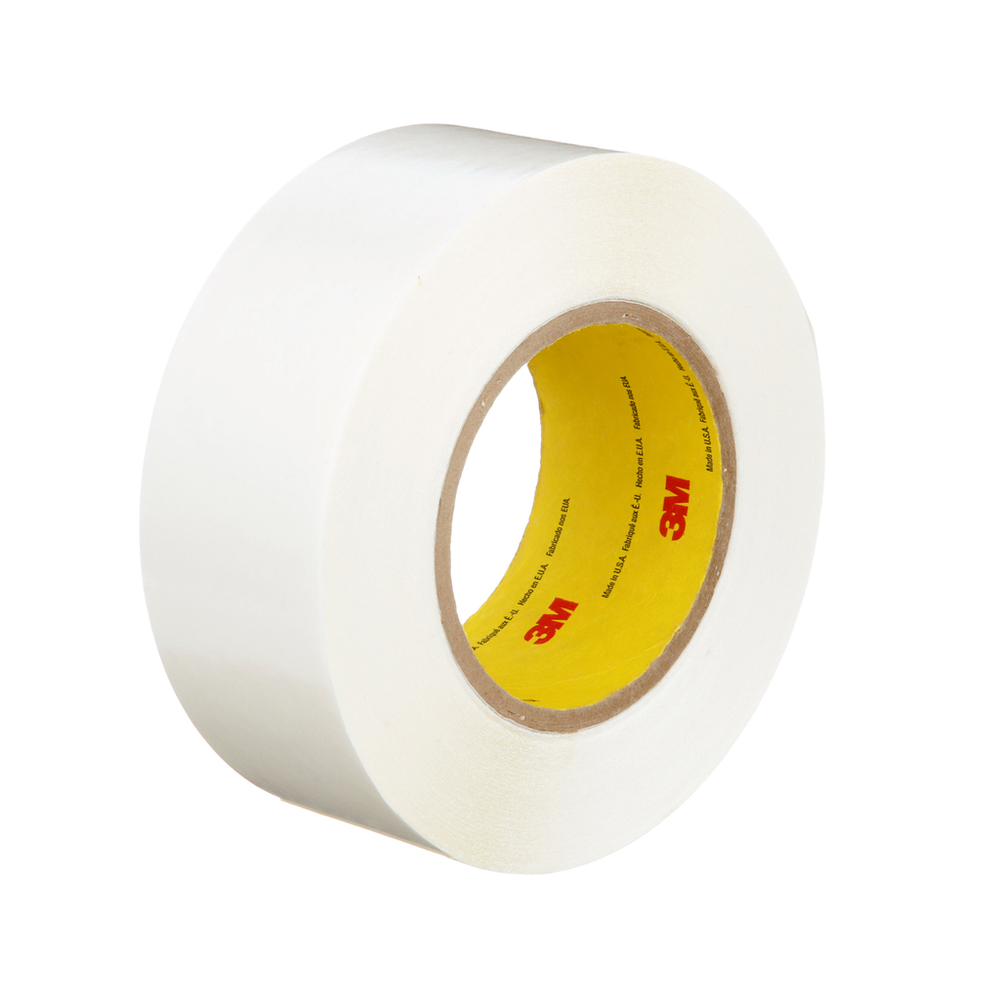

3M™ Double Coated Tape 9579, White, 2 in x 36 yd, 9 mil, 24 Roll/Case - 7000048601

Sold As: 24-Pack
SKU: 7000048601
MPN: 7000048601
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200658693
3M ID: 70006151933
5 Digit UPC: 65869
$732.98 ($30.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9579 is a double-coated and conformable taping solution that allows hand-tearing applications while offering strong holding power on difficult surfaces like low surface energy substrates. Made with 3M™ Synthetic Rubber Adhesive 760, the product tolerates elevated temperature environments with short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C). Designed with a robust 9 mils tape thickness and high-stick adhesive, it securely grabs onto a variety of substrates, including metal, plastics, and glass within a range of applications in general industrial, converter solutions, MRO, packaging, metalworking, crafts, signage, construction, and many other industries. 3M™ Double Coated Tape 9579 tape offers a pressure-sensitive adhesive on each side of the carrier, providing instant handling and can also be used for core starting and end tabbing on metal rolls.

Features

  • EASY TO HANDLE: Offers the ability to tear by hand and removes cleanly from many surfaces
  • CLEAN REMOVAL: Offers one-strip removal from many materials
  • STRONG HOLDING POWER: A high-tack adhesive that grabs onto metal, plastics (polyester, polycarbonate, and high density polyethylene), glass, and more
  • TOLERATES HEAT: Suitable for short-term use at a temperature up to 150 °F (66 °C) or long-term use withstanding up to 120 °F (49 °C)
  • VERSATILE APPLICATIONS: Ideal for core starting and end tabbing on metal rolls, die-cutting, splicing rough surfaces or coated materials, and many more
  • FOR DIFFICULT SURFACES: Reliable adhesion to low surface energy substrates, such as polyolefin plastics
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Maximum Operating Temperature (Celsius)49.0
Specifications MetFDA 21 CFR
Carrier Thickness3.0
Carrier Thickness UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialHDPE
Shelf Life UOMMonth
Face Side Adhesive Thickness (Imperial)3.0
Overall Length (Metric) UOMm
Overall Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric)0.076
Face Side Adhesive Thickness (Metric) UOMmm
Master Size Width (Metric)69.0
Product FormRoll
Back Side Adhesive Thickness (Imperial)3.0
Core Size (Metric)76.2
Face Side Adhesive Thickness (Imperial) UOMmil
ApplicationBonding; Core Start; Flying Splice; Gasket Assembly; Large Surface Lamination Assembly; Mounting & Trim Attachment; Overlap Splice; Splicing; Zero-Speed and General Splicing
Back Side Adhesive Thickness (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Primary Liner Thickness (Metric)0.1
Overall Thickness (Imperial)9.0
Overall Width (Metric)50.8
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)3.0
Primary Liner62# Densified Kraft Paper (DK)
Total Tape Thickness without Liner (Imperial)9.0
Face Side Adhesive TypeSynthetic Rubber Adhesive 760
Overall Width (Imperial)2.0
Total Tape Thickness without Liner (Metric)0.23
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Master Size Length (Metric)131.7
Overall Width (Imperial) UOMin
Overall Length (Metric)32.91
Overall Width (Metric) UOMmm
Core Size (Metric) UOMmm
IndustriesConstruction, Consumer Goods, Converter Solutions, Craft, Film, Food and Beverage, General Industrial, MRO, Packaging, Paper, Point of Purchase, Print, Signage, Woodworking
Minimum Operating Temperature (Fahrenheit)-40.0
Carrier MaterialHigh Density Polyethylene HDPE
Master Size Length (Metric) UOMm
Face Side Adhesive Thickness (Metric)0.076
Units per Case24.0
Backing (Carrier) Thickness (Imperial) UOMmil
Indoor/OutdoorBoth
Carrier Thickness (Metric)0.076
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit)120.0
Adhesive TypeSynthetic Rubber
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.0
Product ColorWhite
Master Size Width (Metric) UOMcm
Carrier Thickness (Metric) UOMmm
Core Size (Imperial)3.0
Primary Liner ColorWhite
