3M Products & Supplies

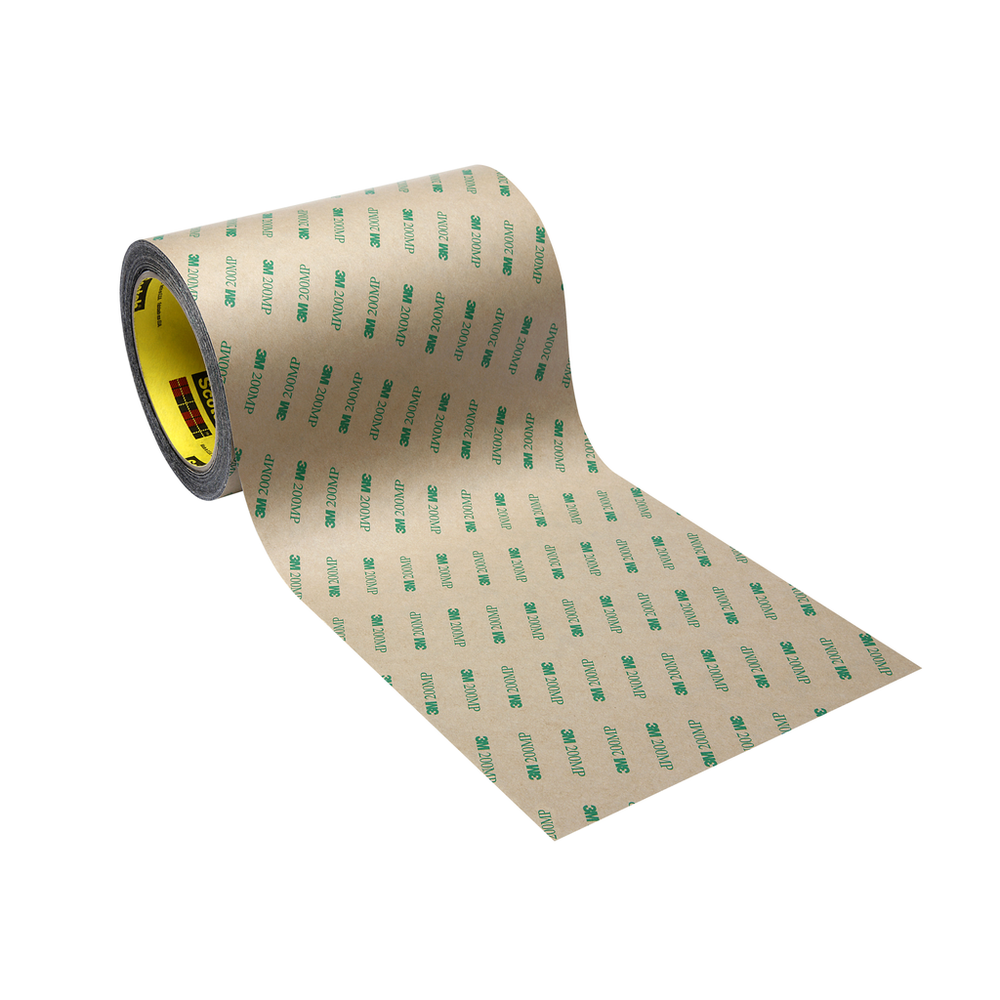

3M™ Double Coated Tape 9495LE, Clear, 27 in x 60 yd, 5.9 mil, 1 Roll/Case - 7100179270

Sold As: 2-Pack
SKU: 7100179270
MPN: 7100179270
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060141748
3M ID: 70007516837
5 Digit UPC: 14174
$1,850.77 ($925.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9495LE provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The acrylic adhesive also provides excellent adhesion to surfaces contaminated lightly with oil typically used with machine parts.

Features

  • High bonding strength to LSE plastics
  • Adds dimensional stability to foams and other substrates and also makes it easier to handle the tape during slitting and die-cutting
  • Film carrier makes for easy handling during slitting and die-cutting
  • The bond strength of 3M™ Laminating Adhesive 300LSE increases as a function of time and temperature, and has very high initial adhesion
  • Film carrier adding dimensional stability to foams and other substrates
  • 3M™ Double Coated Tape 9495LE features a single liner for ease in selective die cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Back Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.071
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)0.5
Overall Length (Metric) UOMm
Primary Liner Thickness (Metric)0.11
Primary Liner Thickness (Imperial)4.2
Face Side Adhesive Thickness (Imperial)2.8
Overall Length (Imperial)60.0
IndustriesElectronics, General Industrial
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)6.7
Total Tape Thickness without Liner (Metric)0.17
Overall Width (Imperial)27.0
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric)54.86
Overall Width (Metric)685.8
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.086
Back Side Adhesive Thickness (Imperial)3.4
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.013
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeLow Surface Energy Acrylic Adhesive 300LSE
Primary Liner58# Polycoated Kraft Paper (PCK)
Backing (Carrier) MaterialPET
Primary Liner ColorTan
Product ColorTransparent
Overall Length (Imperial) UOMyd
