3M Products & Supplies

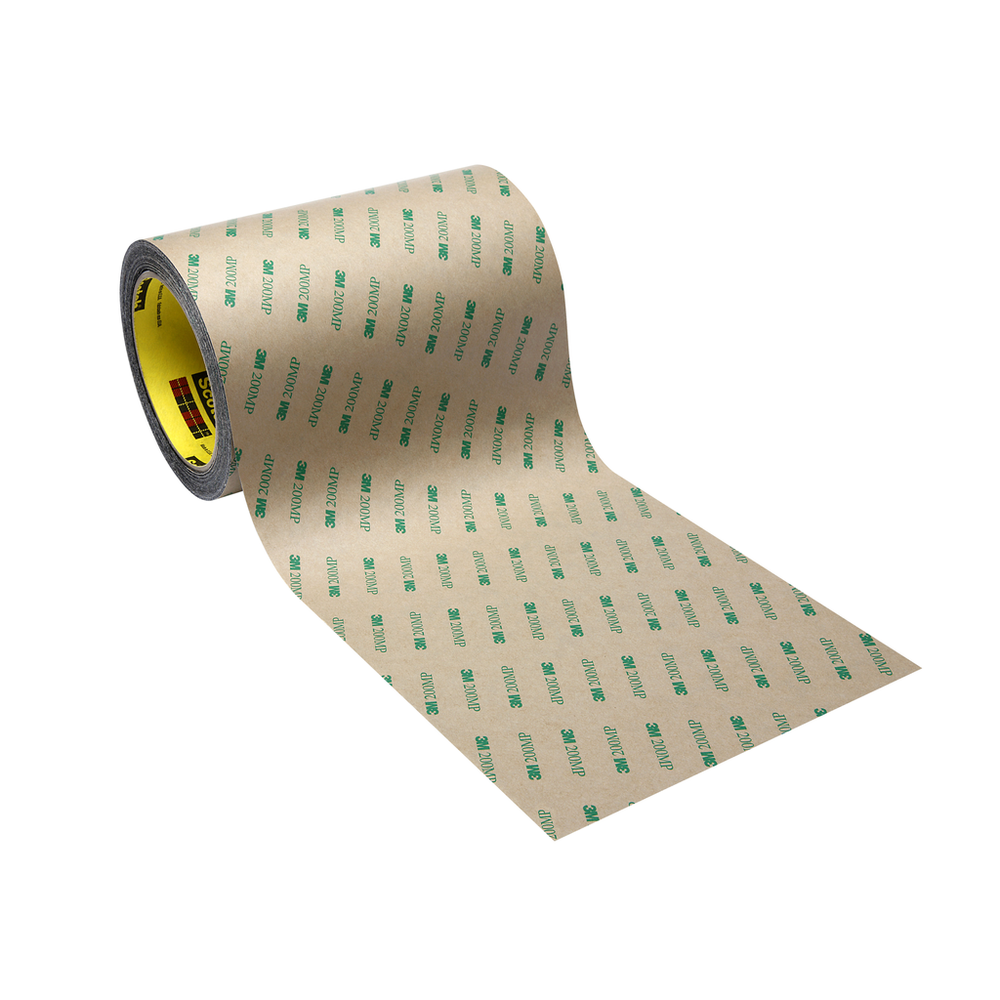

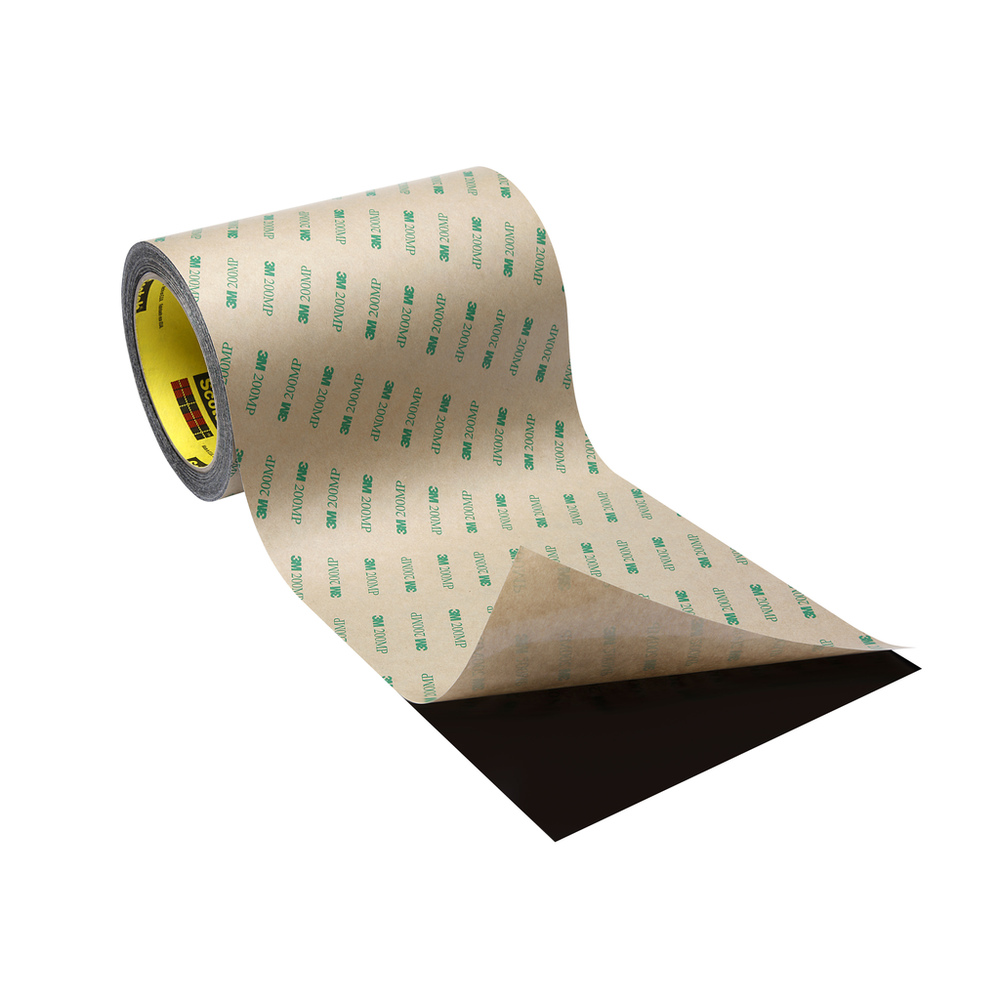

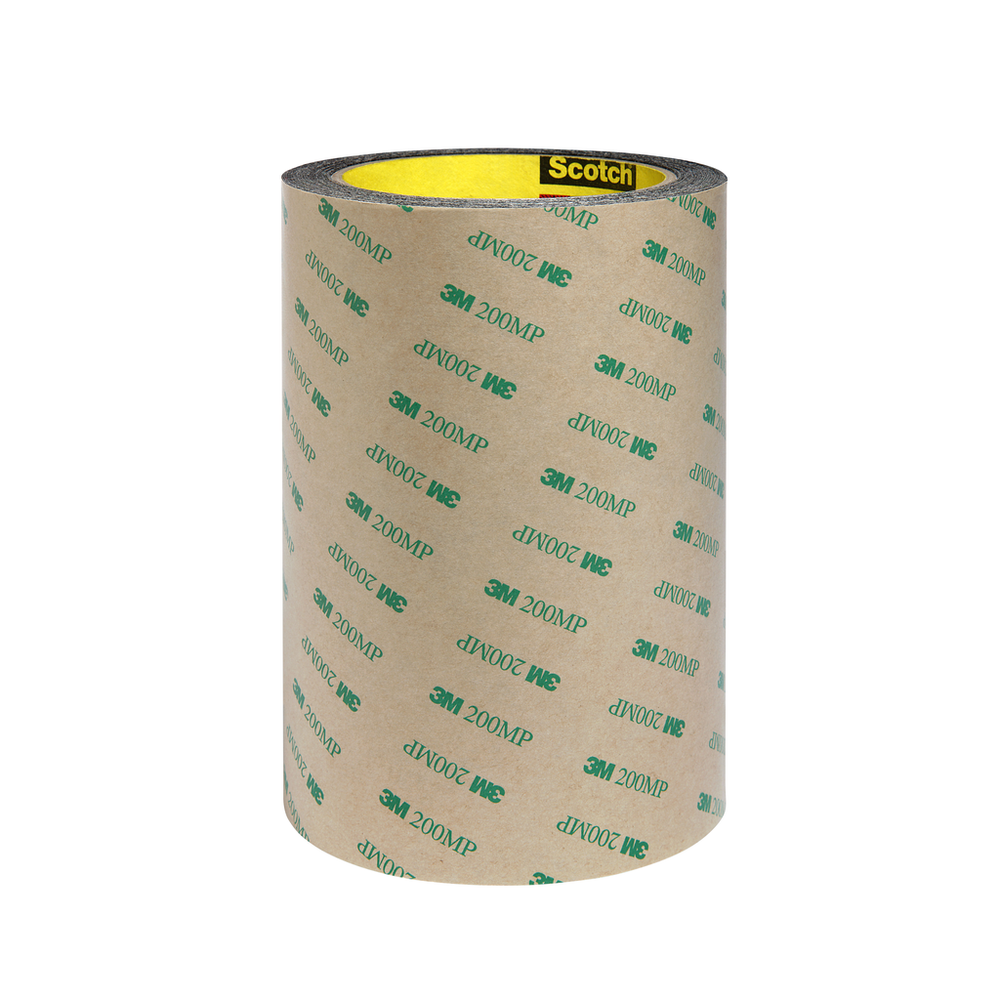

3M™ Double Coated Tape 9495LE, Clear, 54 in x 50 yd, 5.9 mil, 1 Roll/Case - 7010374677

SKU: 7010374677
MPN: 7010374677
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115257117
3M ID: 70006430790
5 Digit UPC: 25711
$1,542.30 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9495LE provides high bond strength to most surfaces, including many low surface energy plastics such as polypropylene and powder coated paints. The acrylic adhesive also provides excellent adhesion to surfaces contaminated lightly with oil typically used with machine parts.

Features

  • Adds dimensional stability to foams and other substrates and also makes it easier to handle the tape during slitting and die-cutting
  • High bonding strength to LSE plastics
  • 3M™ Double Coated Tape 9495LE features a single liner for ease in selective die cutting
  • The bond strength of 3M™ Laminating Adhesive 300LSE increases as a function of time and temperature, and has very high initial adhesion
  • Film carrier adding dimensional stability to foams and other substrates
  • Film carrier makes for easy handling during slitting and die-cutting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Primary Liner ColorTan
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.2
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)0.5
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)3.4
Primary Liner Thickness (Metric)0.11
Overall Width (Metric)1371.6
Face Side Adhesive Thickness (Imperial)2.8
Primary Liner58# Polycoated Kraft Paper (PCK)
Face Side Adhesive Thickness (Metric)0.071
Total Tape Thickness without Liner (Imperial)6.7
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.013
Product ColorTransparent
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPET
Total Tape Thickness without Liner (Metric)0.17
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Back Side Adhesive Thickness (Metric) UOMmm
IndustriesElectronics, General Industrial
Overall Width (Imperial)54.0
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)50.0
Adhesive TypeLow Surface Energy Acrylic Adhesive 300LSE
Back Side Adhesive Thickness (Metric)0.086
Overall Length (Metric)45.72
