3M Products & Supplies

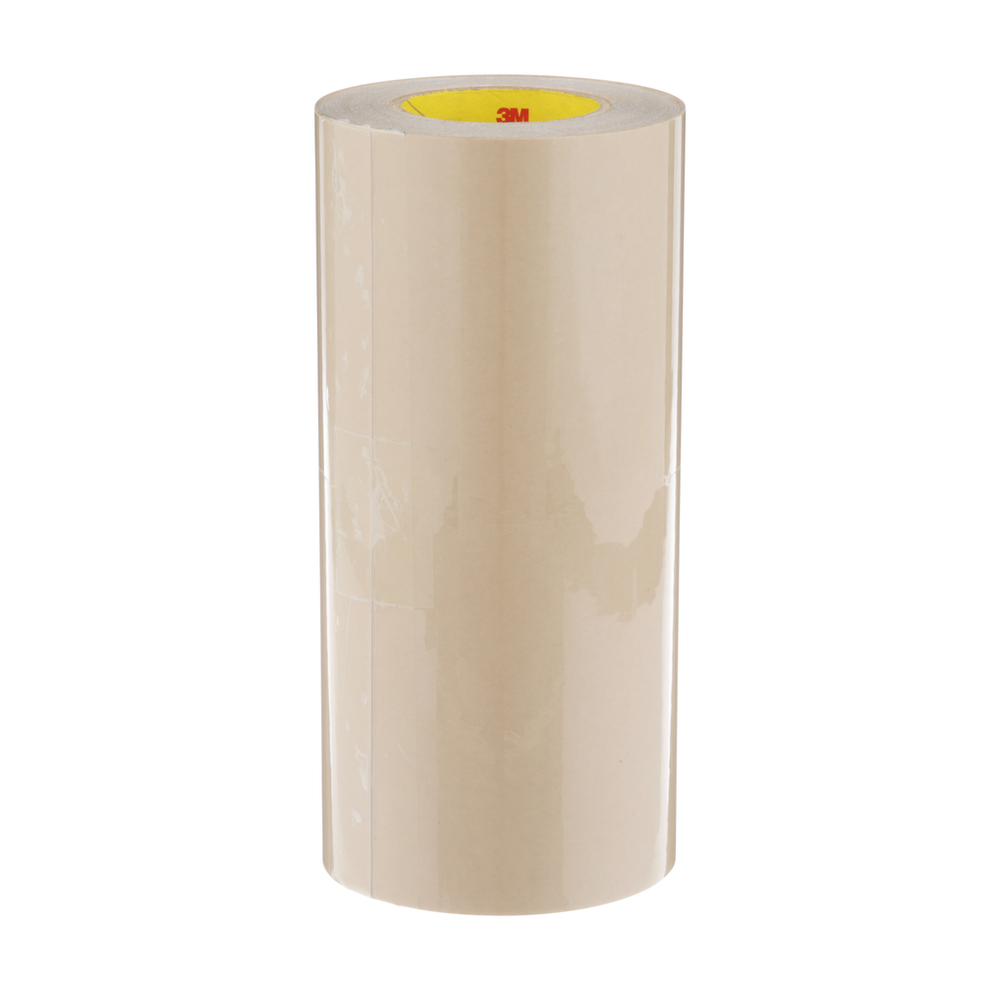

3M™ Double Coated Tape 9731, Clear, 13 in x 108 yd, 5.5 mil, 1 Roll/Case - 7010374459

SKU: 7010374459
MPN: 7010374459
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138956226
3M ID: 70006390291
5 Digit UPC: 95622
$5,812.91 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Ideal for attaching silicone rubber elastomers and foam
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Secondary Liner Thickness (Imperial)2.9
Back Side Adhesive Thickness (Imperial) UOMmil
Adhesive TypeAcrylic/Silicone
Indoor/OutdoorBoth
Maximum Operating Temperature (Celsius)121.0
Core Size (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Primary Liner ColorTan
Primary Liner Thickness (Imperial)4.2
Backing (Carrier) Thickness (Imperial)1.0
Overall Length (Imperial)108.0
Face Side Adhesive Thickness (Metric)0.041
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorTransparent
Overall Thickness (Imperial)5.5
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)2.9
Total Tape Thickness without Liner (Metric)0.14
Carrier Thickness (Metric)0.03
Tape TypeDouble Coated
Face Side Adhesive Thickness (Imperial)1.6
Carrier Thickness UOMmil
Secondary Liner Thickness (Metric)0.07
Master Size Width (Metric) UOMcm
Master Size Width (Metric)122.0
Backing (Carrier) Thickness (Metric) UOMmm
Carrier Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Core Size (Metric)76.2
Minimum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness0.0951388888888889
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Length (Metric) UOMm
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Backing (Carrier) MaterialPolyester Film
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Metric)98.75
Overall Width (Imperial)13.0
Backing (Carrier) Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Imperial) UOMmil
Master Size Length (Metric) UOMm
Shelf Life in Months (From Date of Manufacture)12.0
Total Tape Thickness without Liner (Imperial)5.5
Backing (Carrier) Thickness (Metric)0.025
Primary Liner58# Polycoated Kraft Paper (PCK)
Master Size Length (Metric)98.8
Shelf Life UOMMonth
Secondary Liner Thickness (Metric) UOMmm
Overall Width (Metric)330.2
Maximum Operating Temperature (Fahrenheit) UOMDegree
Assembly TypeGasket Attachment
Product FormRoll
Units per Case1.0
Total Tape Thickness without Liner (Metric) UOMmm
Core Size (Imperial)3.0
Primary Liner Thickness (Metric)0.17
Back Side Adhesive TypeSilicone
Carrier MaterialPolyester Film
Overall Width (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
