3M Products & Supplies

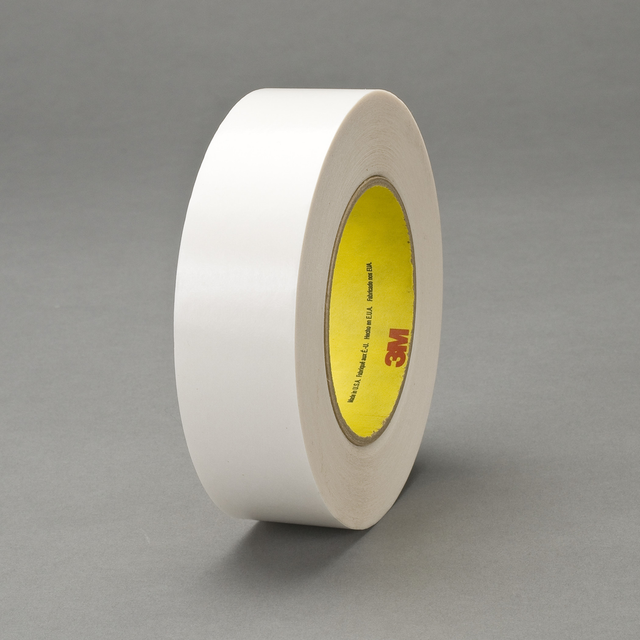

3M™ Double Coated Tape 9737, Clear, 60 mm x 55 m, 3.5 mil, 20 Roll/Case - 7010373945

Sold As: 200-Pack
SKU: 7010373945
MPN: 7010373945
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115319556
3M ID: 70006448859
5 Digit UPC: 31955
$5,478.91 ($27.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9737 Red is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Good moisture resistance to ensure performance in a variety of situations
  • Ideal performance in high speed splicing applications
  • Available in red
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.0127
Overall Length (Imperial) UOMyd
Primary Liner55# Densified Kraft Paper (DK)
Backing (Carrier) MaterialPolyester Film
Number of Adhesive SidesDouble-sided
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
ApplicationZero-Speed and General Splicing
Overall Width (Metric)60.0
Product FormRoll
Overall Width (Imperial)2.36
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Carrier Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Carrier Thickness (Metric)0.013
Carrier MaterialPolyester Film
Backing (Carrier) Thickness (Imperial)0.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tape TypeDouble Coated
Maximum Operating Temperature (Fahrenheit)300.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.089
Overall Length (Imperial)60.15
Total Tape Thickness without Liner (Imperial)3.5
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorTransparent
Primary Liner ColorWhite
Units per Case20.0
Overall Length (Metric)55.0
