3M Products & Supplies

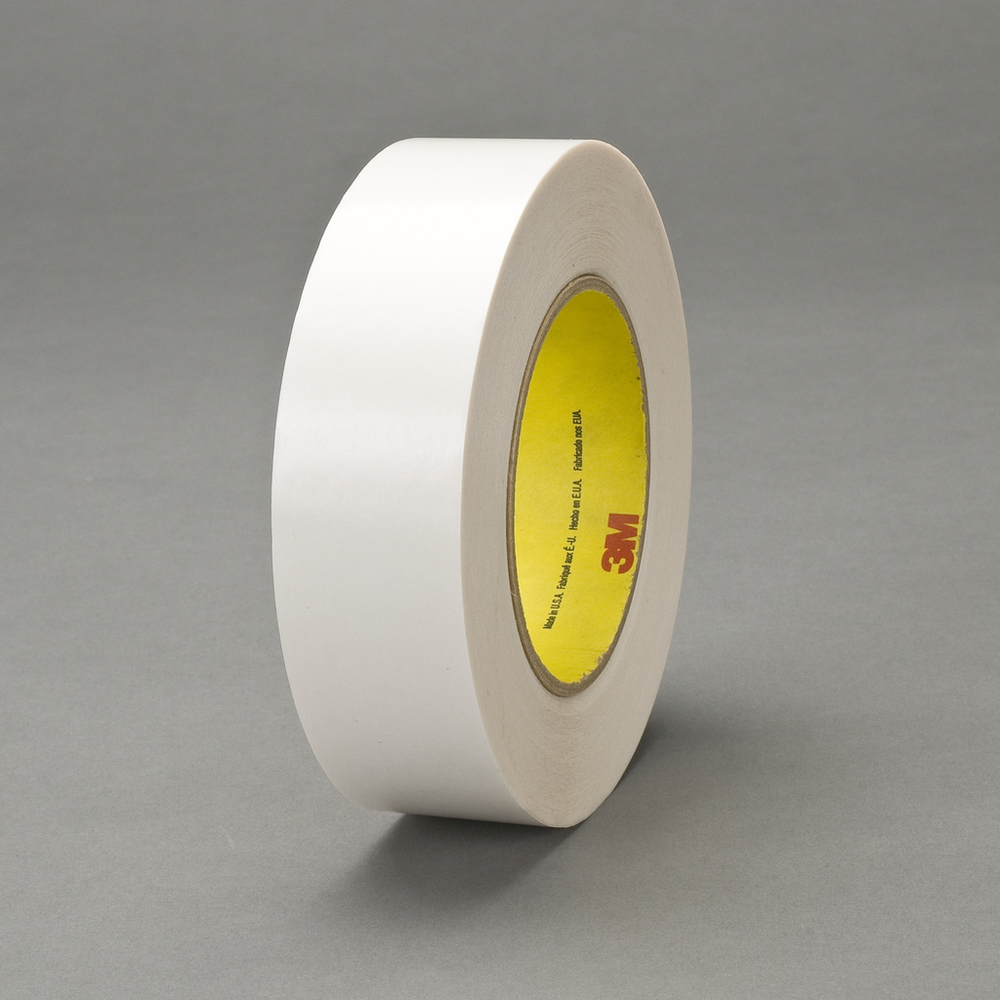

3M™ Double Coated Tape 9737, Clear, 72 mm x 55 m, 3.5 mil, 16 Roll/Case - 7010374842

Sold As: 16-Pack
SKU: 7010374842
MPN: 7010374842
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115317361
3M ID: 70006436938
5 Digit UPC: 31736
$526.18 ($32.89 / Count)
Hurry up! Current stock:

Product Description

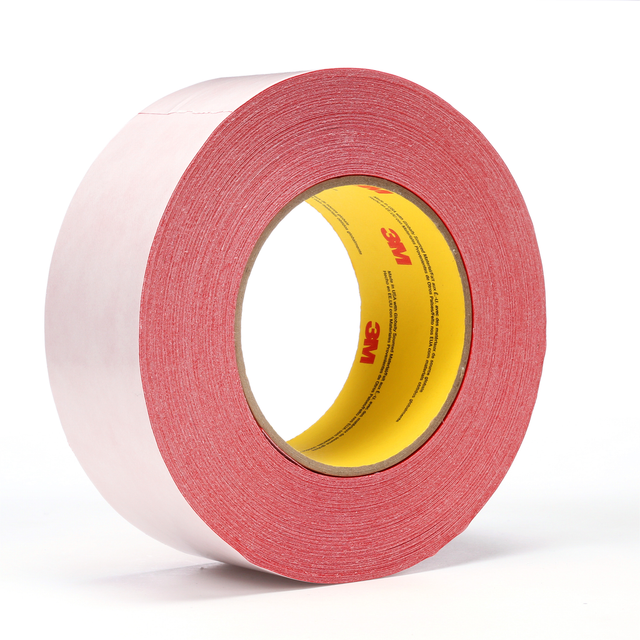

3M™ Double Coated Tape 9737 Red is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Available in red
  • Ideal performance in high speed splicing applications
  • Good moisture resistance to ensure performance in a variety of situations
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial)0.5
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
Product ColorTransparent
Tape TypeDouble Coated
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Product FormRoll
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)300.0
Overall Width (Metric)72.0
Primary Liner55# Densified Kraft Paper (DK)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)55.0
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner ColorWhite
Total Tape Thickness without Liner (Metric)0.089
Carrier Thickness (Metric) UOMmm
Overall Length (Imperial)60.15
Backing (Carrier) Thickness (Metric)0.0127
Units per Case16.0
Carrier MaterialPolyester Film
Carrier Thickness (Metric)0.0127
Backing (Carrier) MaterialPolyester Film
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)2.83
Total Tape Thickness without Liner (Imperial)3.5
Backing (Carrier) Thickness (Imperial) UOMmil
ApplicationZero-Speed and General Splicing
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Carrier Thickness0.5
Carrier Thickness UOMmil
