3M Products & Supplies

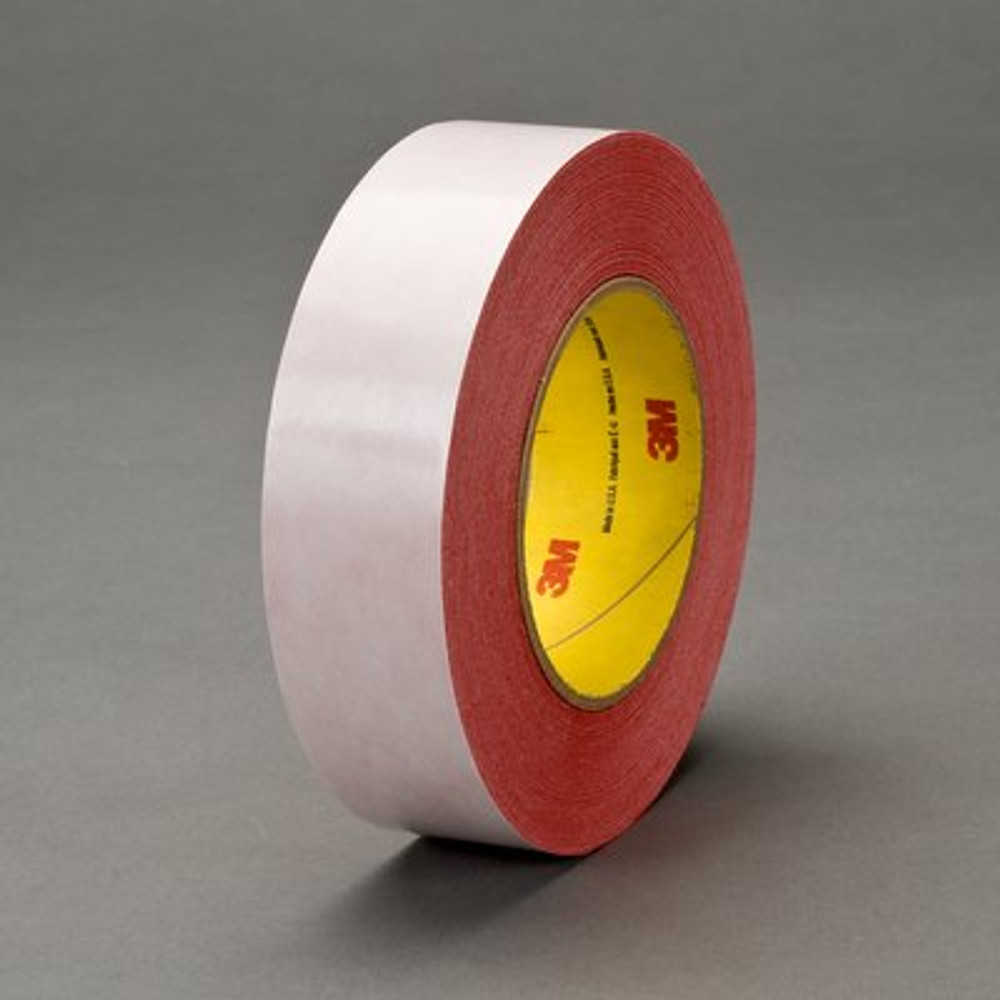

3M™ Double Coated Tape 9737R, Red, 60 in x 250 yd, 3.5 mil, 1 Roll/Case - 7010334744

Sold As: 9-Pack
SKU: 7010334744
MPN: 7010334744
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111079300
3M ID: 70006659471
5 Digit UPC: 7930
$26,094.10 ($2899.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9737 Clear is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Available in clear
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • High tack acrylic adhesive performs well across broad temperature range
  • Ideal performance in high speed splicing applications
  • Good moisture resistance to ensure performance in a variety of situations
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Primary Liner Thickness (Metric)0.08
Total Tape Thickness without Liner (Imperial) UOMmil
Carrier Thickness0.5
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) MaterialPolyester
Overall Width (Imperial)60.0
Total Tape Thickness without Liner (Imperial)3.5
ApplicationOverlap Splice
Backing (Carrier) Thickness (Imperial)0.5
Tape TypeDouble Coated
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product FormRoll
Minimum Operating Temperature (Fahrenheit)-10.0
Product ColorRed
IndustriesFilm, Packaging, Paper, Print
Overall Length (Imperial)250.0
Backing (Carrier) Thickness (Metric)0.0127
Total Tape Thickness without Liner (Metric)0.088
Units per Case9.0
Carrier MaterialPolyester Film
Carrier Thickness (Metric)0.012
Shelf Life UOMMonth
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
Shelf Life in Months (From Date of Manufacture) UOMMonths
Maximum Operating Temperature (Fahrenheit)300.0
Number of Adhesive SidesDouble-sided
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Overall Width (Metric)1524.0
Primary Liner Thickness (Metric) UOMmm
Primary Liner ColorWhite
Overall Width (Imperial) UOMin
Shelf Life in Months (From Date of Manufacture)12.0
Overall Length (Metric)228.6
Carrier Thickness (Metric) UOMmm
Back Side Adhesive TypeAcrylic
Carrier Thickness UOMmil
Primary Liner55# Densified Kraft Paper (DK)
