3M Products & Supplies

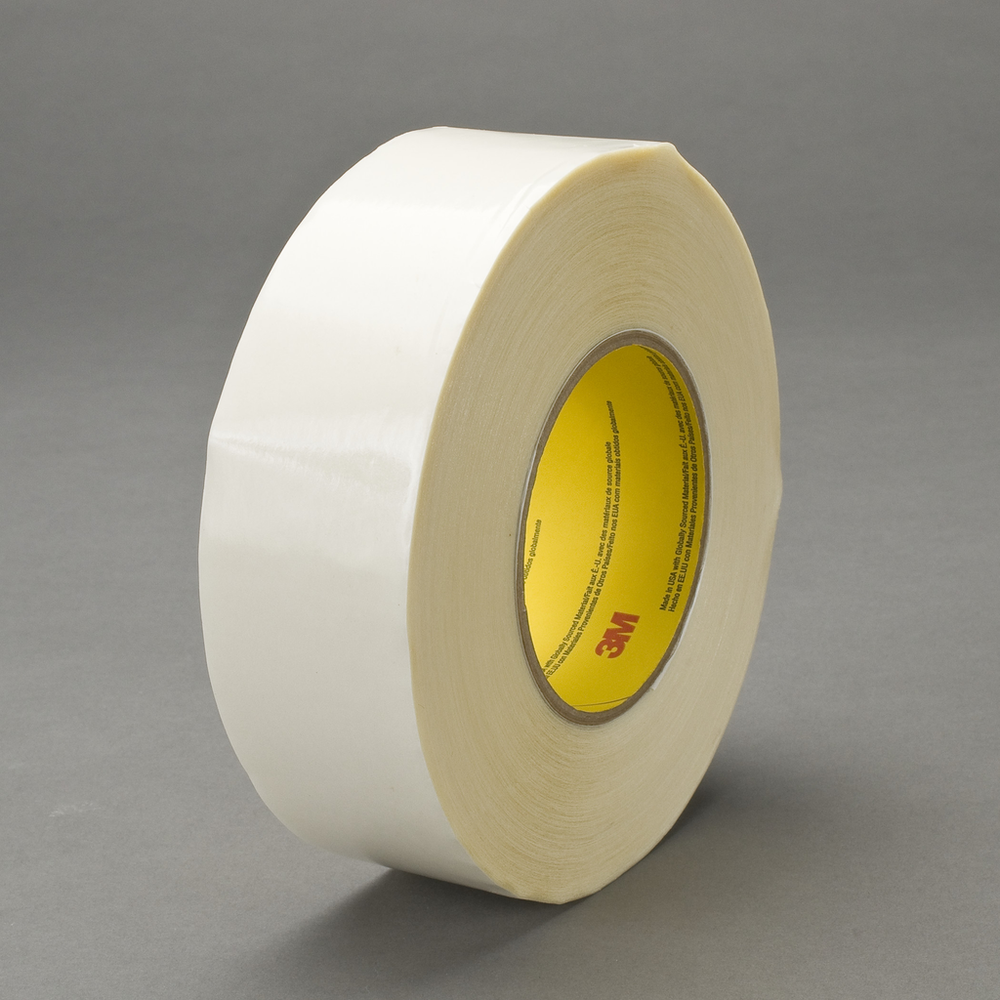

3M™ Double Coated Tape 9741, Clear, 36 mm x 55 m, 6.5 mil, 32 Roll/Case - 7000124337

Sold As: 32-Pack
SKU: 7000124337
MPN: 7000124337
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115316654
3M ID: 70006436300
5 Digit UPC: 31665
$812.29 ($25.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9741 is a clear polyester film tape with a super aggressive, pressure sensitive acrylic adhesive and a glassine release liner. This tape uses a hand-tearable polyester film that is coated on both sides with a heavy layer of adhesive to allow for superior bonding and conformability to irregular as well as flat surfaces.

Features

  • Bonds well to most substrates, including low surface energy films
  • Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications
  • Conformable to bond to irregular surfaces
  • Excellent UV and heat resistance withstands a variety of conditions
  • High tack for flying splices
  • Double sided adhesion increases dimensional stability for easy handling
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)6.5
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPolyester Film
Overall Width (Imperial)1.42
Backing (Carrier) Thickness (Metric) UOMmm
Number of Adhesive SidesDouble-sided
Carrier Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Product FormRoll
Overall Width (Metric) UOMmm
Overall Width (Metric)36.0
Carrier MaterialPolyester Film
Maximum Operating Temperature (Fahrenheit)200.0
Primary Liner55# Glassine
Backing (Carrier) Thickness (Metric)0.013
Total Tape Thickness without Liner (Metric)0.165
Units per Case32.0
Adhesive TypeAcrylic
Carrier Thickness UOMmil
Carrier Thickness (Metric)0.013
ApplicationZero-Speed and General Splicing
Overall Length (Metric)55.0
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
Overall Length (Imperial)60.15
Carrier Thickness0.5
Product ColorTransparent
Tape TypeDouble Coated
Primary Liner ColorWhite
Backing (Carrier) Thickness (Imperial)0.5
