3M Products & Supplies

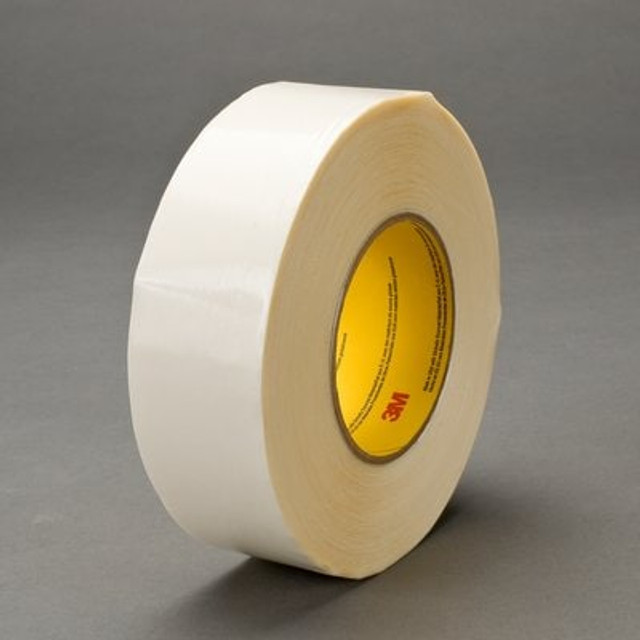

3M™ Double Coated Tape 9741, Clear, 72 mm x 55 m, 6.5 mil, 16 Roll/Case - 7010334951

Sold As: 16-Pack
SKU: 7010334951
MPN: 7010334951
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051111979235
3M ID: 70006721396
5 Digit UPC: 97923
$811.90 ($50.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9741 is a clear polyester film tape with a super aggressive, pressure sensitive acrylic adhesive and a glassine release liner. This tape uses a hand-tearable polyester film that is coated on both sides with a heavy layer of adhesive to allow for superior bonding and conformability to irregular as well as flat surfaces.

Features

  • Conformable to bond to irregular surfaces
  • Bonds well to most substrates, including low surface energy films
  • Double sided adhesion increases dimensional stability for easy handling
  • Ultra-high peel strength and excellent shear strength to withstand rigorous splicing applications
  • Excellent UV and heat resistance withstands a variety of conditions
  • High tack for flying splices
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tape TypeDouble Coated
Overall Width (Imperial) UOMin
Overall Width (Metric)72.0
Backing (Carrier) Thickness (Metric)0.013
Overall Length (Imperial) UOMyd
Units per Case16.0
Carrier Thickness (Metric) UOMmm
Carrier MaterialPolyester Film
Adhesive TypeAcrylic
Product ColorTransparent
Carrier Thickness (Metric)0.013
Maximum Operating Temperature (Fahrenheit)200.0
Total Tape Thickness without Liner (Metric)0.165
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive TypeAcrylic
Overall Length (Metric)55.0
Overall Length (Imperial)60.15
Overall Length (Metric) UOMm
Product FormRoll
ApplicationZero-Speed and General Splicing
Carrier Thickness0.5
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialPolyester Film
Total Tape Thickness without Liner (Imperial)6.5
Overall Width (Imperial)2.83
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorWhite
Backing (Carrier) Thickness (Imperial)0.5
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner55# Glassine
Carrier Thickness UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesAppliance, Automotive, Electronics, General Industrial, Medical, Specialty Vehicles, Transportation
