3M Products & Supplies

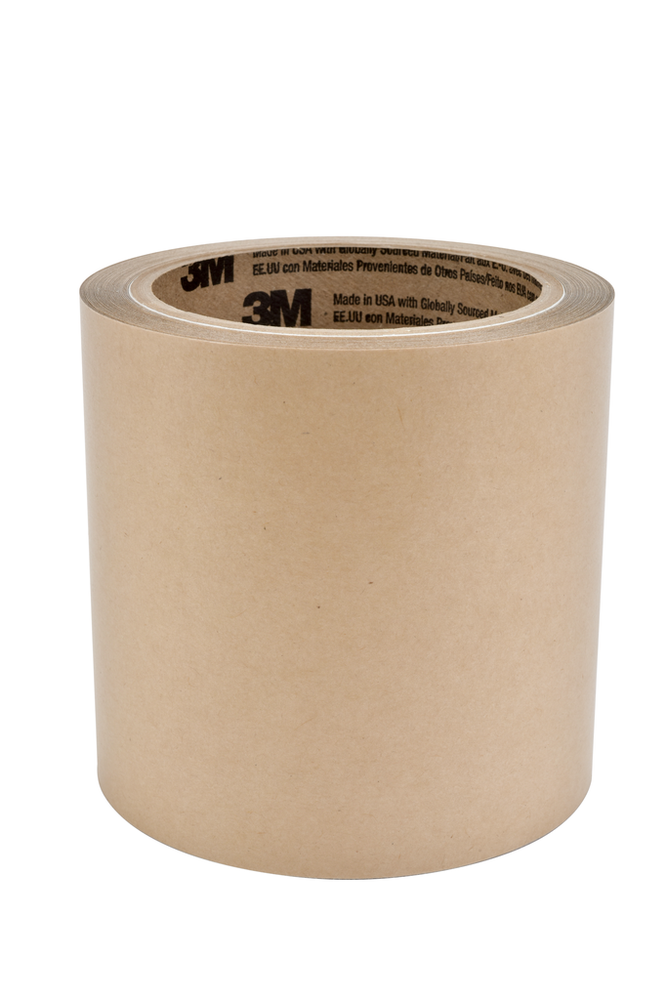

3M™ Double Coated Tape 99786NP+, Transparent, 5.5 mil, 54IN X 180YD, 1 Roll/Case - 7100316363

SKU: 7100316363
MPN: 7100316363
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060756817
3M ID: 70011144469
$2,957.10 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 99786NP+ provides high adhesion to a wide variety of substrates, including plastics and foams. The non-woven carrier provides dimensional stability and improved handling during slitting and die cutting operations.

Features

  • Often used for foam, gasket, nameplate and general attachment applications.
  • Offers excellent adhesion to a wide variety of substrates, including many plastics and foams.
  • Thin non-woven carrier adds dimensional stability and improved handling.
  • Temperature performance up to 250°F (121°C) for short term exposure and up to 150°F (66°C) for long term exposure
  • Non-printed polycoated kraft paper liner offers improved lay-flat properties and moisture stability.
Spec Sheet



Downloads

Specifications

Shelf Life730
Backing (Carrier) MaterialNon-woven
Primary Liner Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)0.0
Back Side Adhesive Thickness (Metric)0.0
Overall Length (Metric)164.592
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)1371.6
Overall Width (Metric) UOMmm
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
ApplicationBonding
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial)0.0
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.0
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic Adhesive 300MP+
Overall Length (Metric) UOMm
Overall Width (Imperial)54.0
Primary Liner Thickness (Imperial)4.2
Overall Length (Imperial)180.0
Primary Liner Thickness (Metric)0.1
IndustriesGeneral Industrial
Primary Liner ColorTan
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.0
Back Side Adhesive Thickness (Imperial)0.0
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric)0.14
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)5.5
