3M Products & Supplies

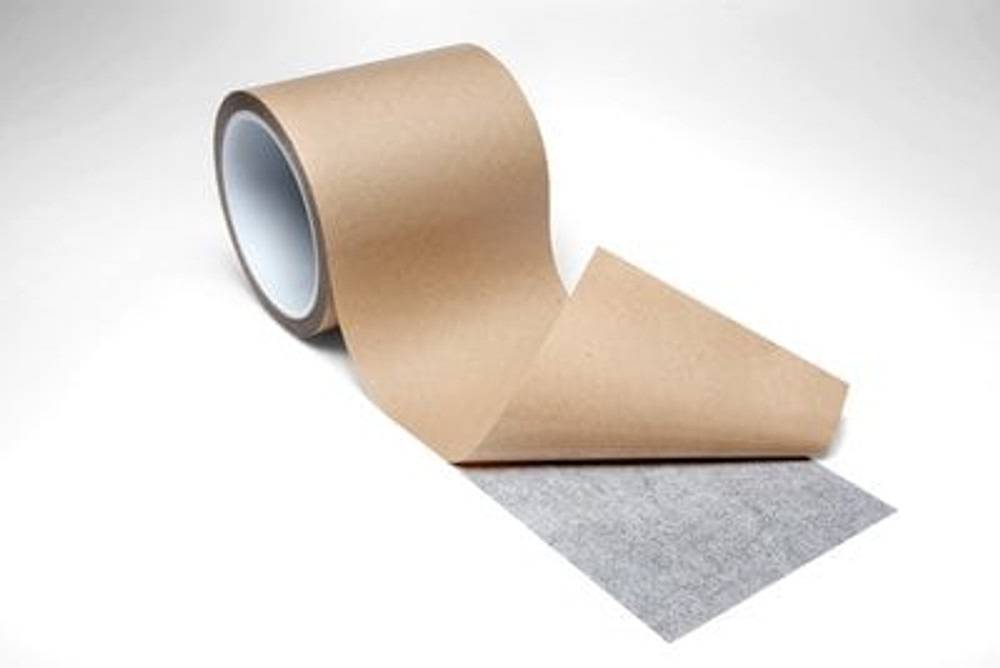

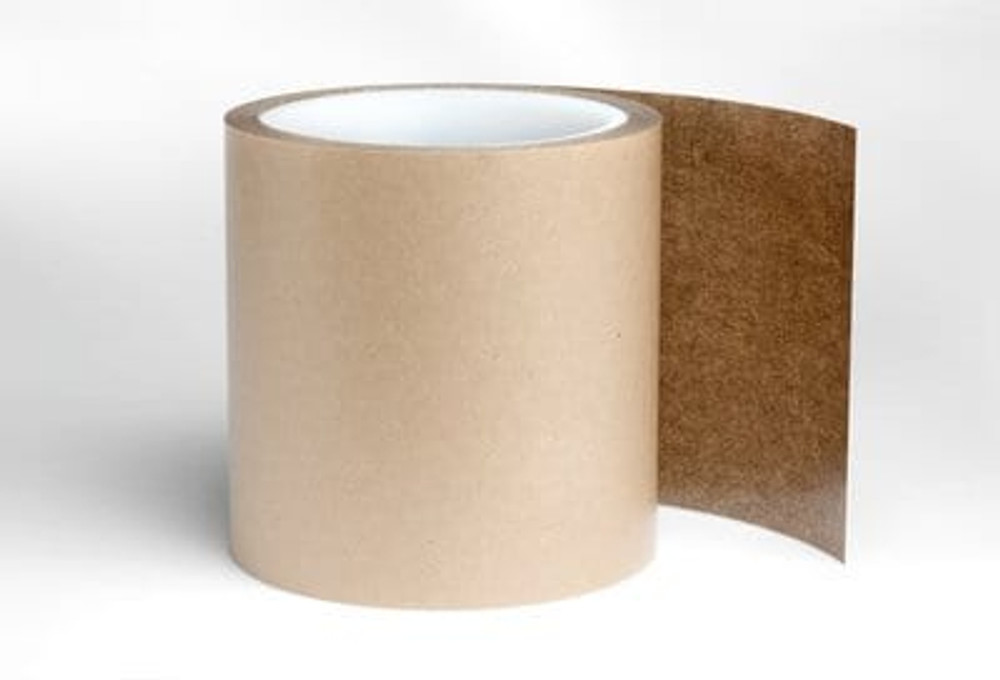

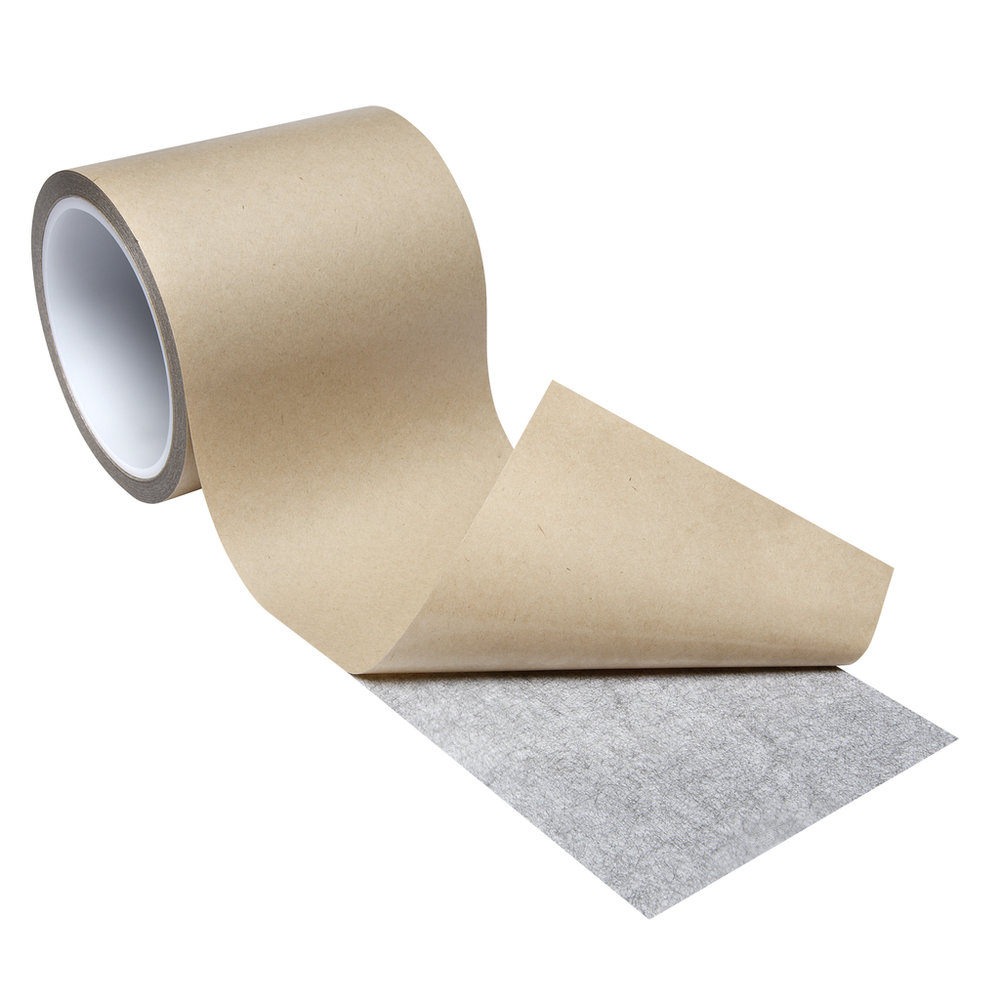

3M™ XYZ-Axis Electrically Conductive Tape 9713, 1/4 in x 36 yds, 1/Case - 7010334462

Sold As: 36-Pack
SKU: 7010334462
MPN: 7010334462
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200432170
3M ID: 70006280187
5 Digit UPC: 43217
$1,769.38 ($49.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Isotropic XYZ-axis electrical conductivity
  • Can be applied in strips or die cut to specific shapes and sizes
  • Good contact with both hard and soft surfaces
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Excellent die-cutting and converting capabilities
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Width (Imperial)0.25
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)3.5
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Width (Metric) UOMmm
Product ColorGray
Liner MaterialPET
Overall Length (Metric)32.918
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)6.35
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Total Tape Thickness without Liner (Metric)0.089
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialNon-woven
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Adhesion Strength (Imperial)1500.0
Overall Length (Imperial) UOMyd
