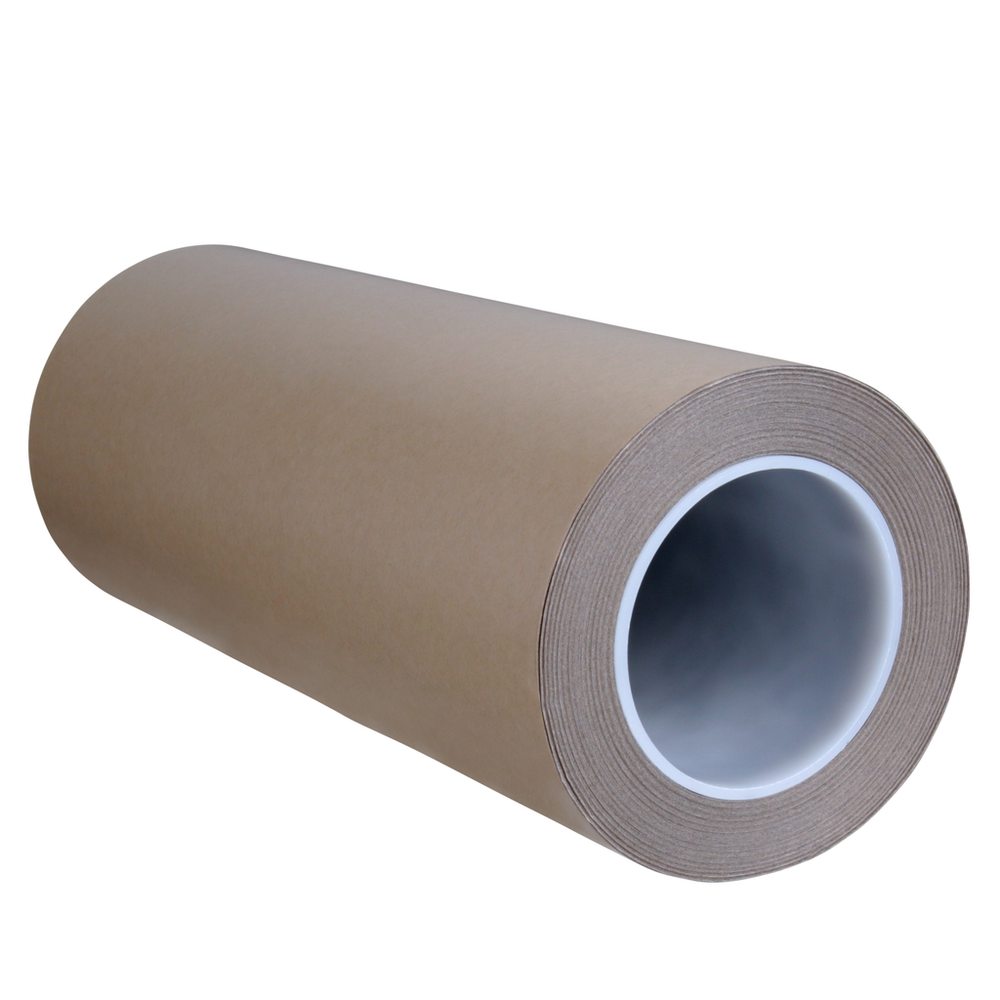

3M™ XYZ-Axis Electrically Conductive Tape 9713, 12 in x 36 yds, 1/Case - 7000049220

SKU: 7000049220
MPN: 7000049220
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115238062
3M ID: 70006417037
5 Digit UPC: 23806
$1,474.60 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Good contact with both hard and soft surfaces
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Isotropic XYZ-axis electrical conductivity
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Excellent die-cutting and converting capabilities
  • Can be applied in strips or die cut to specific shapes and sizes
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Metric)32.918
Overall Length (Imperial)36.0
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric)0.089
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Backing (Carrier) MaterialNon-woven
Total Tape Thickness without Liner (Imperial) UOMmil
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Length (Metric) UOMm
Adhesion Strength (Imperial)1500.0
Overall Width (Metric)304.8
Overall Width (Imperial) UOMin
Overall Width (Imperial)12.0
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Liner MaterialPET
Product ColorGray
Total Tape Thickness without Liner (Imperial)3.5
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
