3M™ XYZ-Axis Electrically Conductive Tape 9713, 24 in x 108 yds, 1/Case - 7000001255

SKU: 7000001255
MPN: 7000001255
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200564567
3M ID: 70006294352
5 Digit UPC: 56456
$8,847.61 each
Hurry up! Current stock:

Product Description

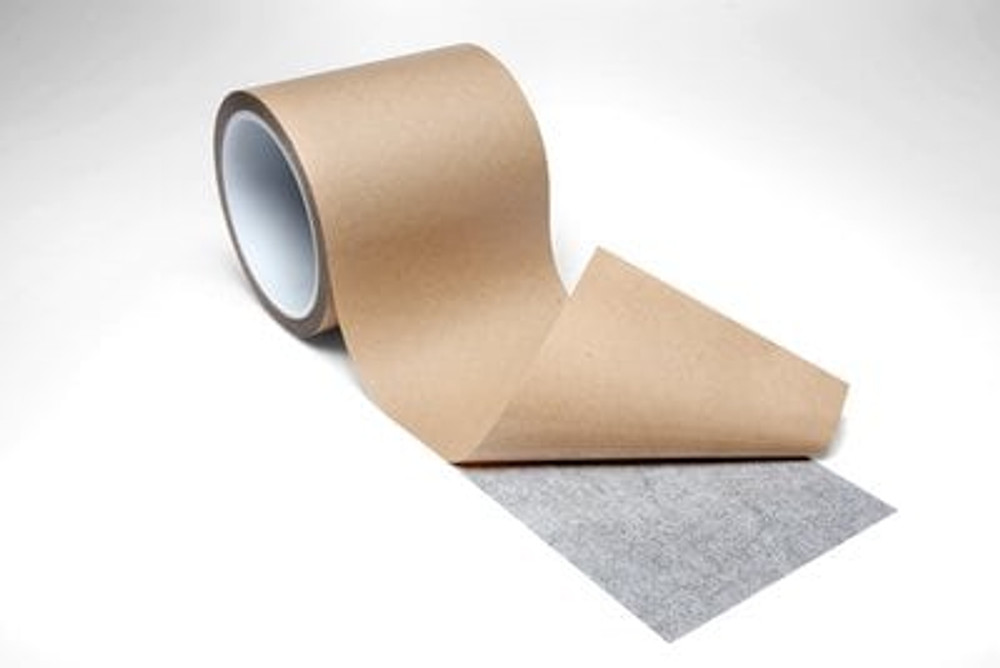

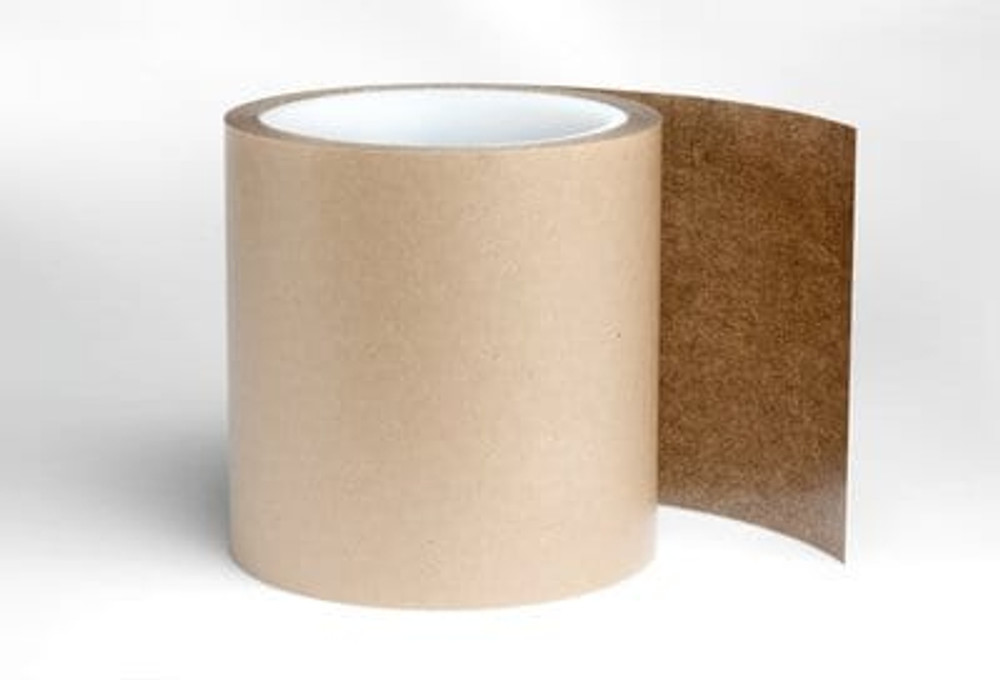

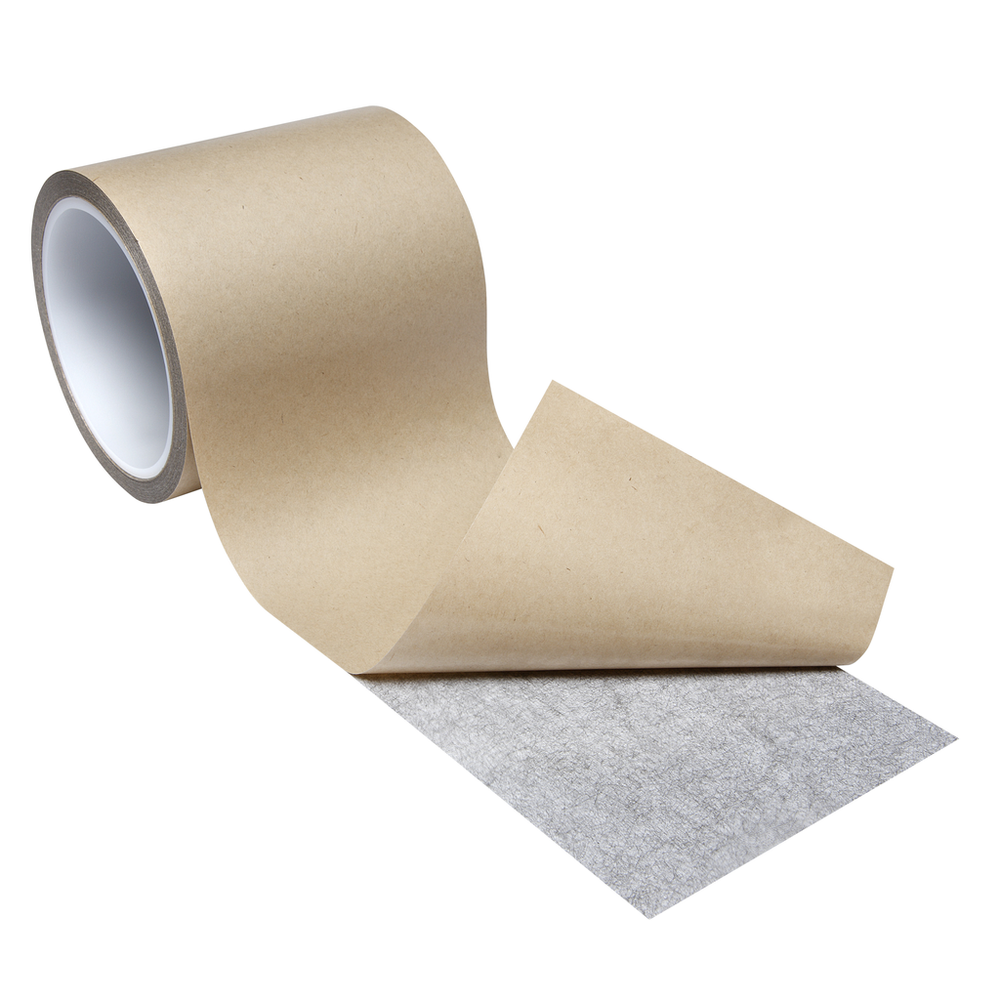

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Isotropic XYZ-axis electrical conductivity
  • Can be applied in strips or die cut to specific shapes and sizes
  • Excellent die-cutting and converting capabilities
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Good contact with both hard and soft surfaces
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Width (Imperial)24.0
Backing (Carrier) MaterialNon-woven
Liner MaterialPET
Overall Length (Imperial)108.0
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Product ColorGray
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Imperial)1500.0
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial)3.5
Adhesive TypeAcrylic
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Overall Length (Metric)98.755
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Metric)609.6
Total Tape Thickness without Liner (Metric)0.089
