3M Products & Supplies

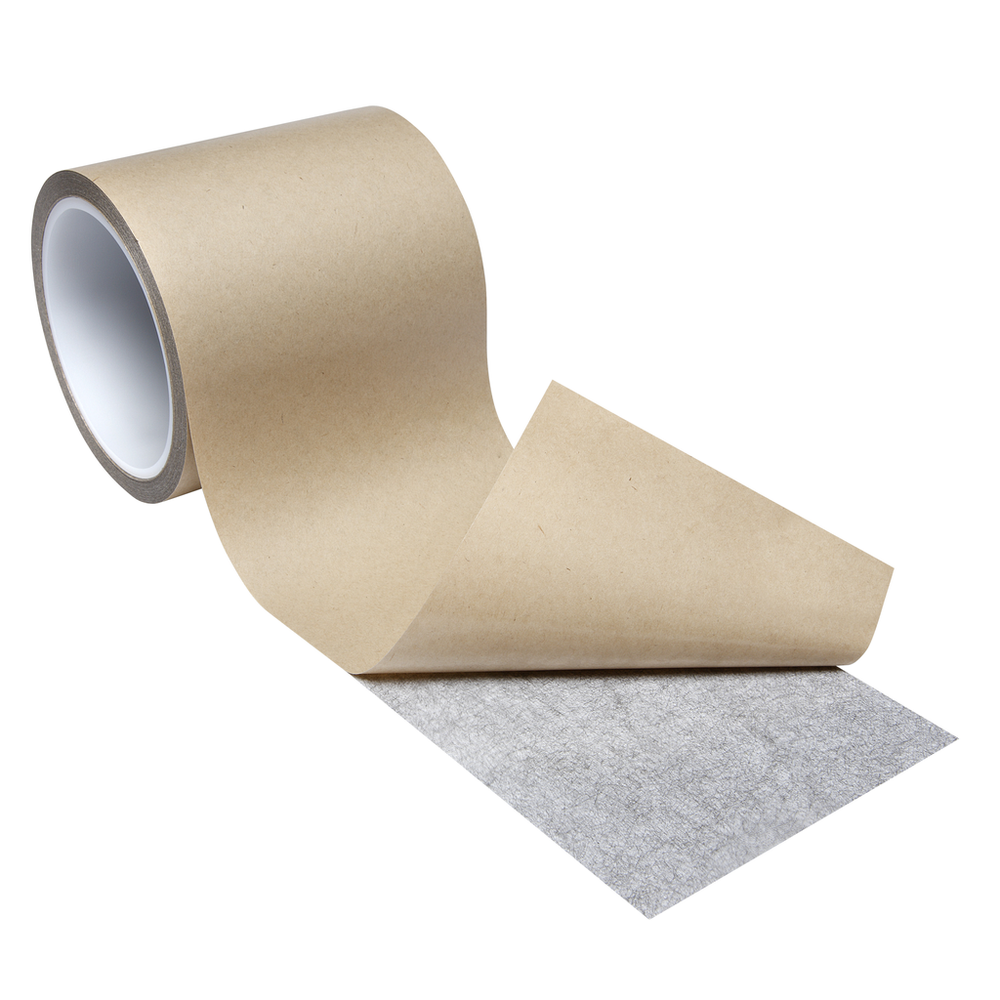

3M™ XYZ-Axis Electrically Conductive Tape 9713, 4 in x 36 yds, 2/Case - 7010295401

Sold As: 2-Pack
SKU: 7010295401
MPN: 7010295401
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200962226
3M ID: 70-0062-7552-6
5 Digit UPC: 96222
$983.08 ($491.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Can be applied in strips or die cut to specific shapes and sizes
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Excellent die-cutting and converting capabilities
  • Good contact with both hard and soft surfaces
  • Isotropic XYZ-axis electrical conductivity
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Backing (Carrier) MaterialNon-woven
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)3.5
Overall Width (Imperial)4.0
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Length (Metric)32.918
Total Tape Thickness without Liner (Metric)0.089
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Product ColorGray
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Liner MaterialPET
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Width (Metric)101.6
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Adhesion Strength (Imperial)1500.0
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Width (Metric) UOMmm
