3M Products & Supplies

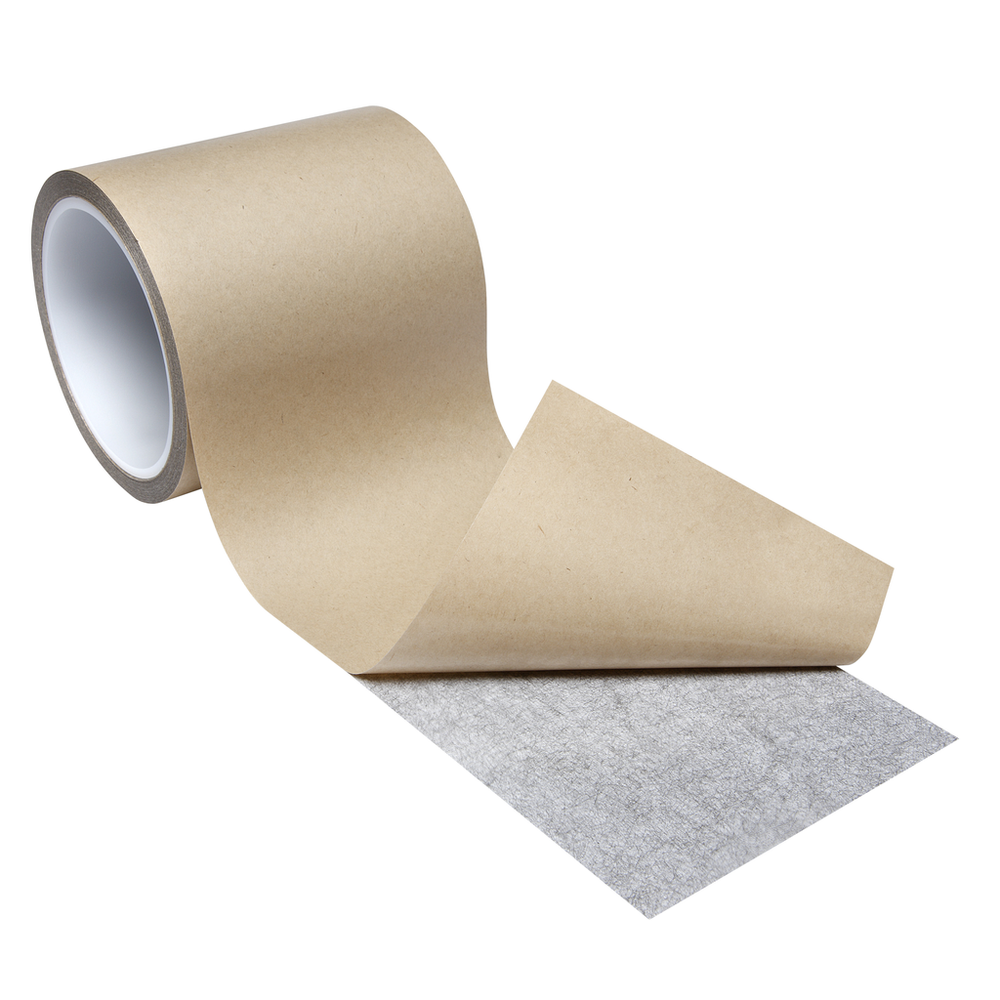

3M™ XYZ-Axis Electrically Conductive Tape 9713, 1/2 in x 36 yds, 18/Case, Bulk - 7010373981

Sold As: 18-Pack
SKU: 7010373981
MPN: 7010373981
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200432163
3M ID: 70006280179
5 Digit UPC: 43216
$1,175.27 ($65.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Can be applied in strips or die cut to specific shapes and sizes
  • Isotropic XYZ-axis electrical conductivity
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Excellent die-cutting and converting capabilities
  • Good contact with both hard and soft surfaces
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)3.5
Liner MaterialPET
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Width (Imperial) UOMin
Overall Width (Metric)12.7
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Product ColorGray
Overall Width (Imperial)0.5
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.089
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Length (Metric)32.918
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Metric) UOMm
Adhesion Strength (Imperial)1500.0
Backing (Carrier) MaterialNon-woven
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)36.0
Overall Width (Metric) UOMmm
