3M Products & Supplies

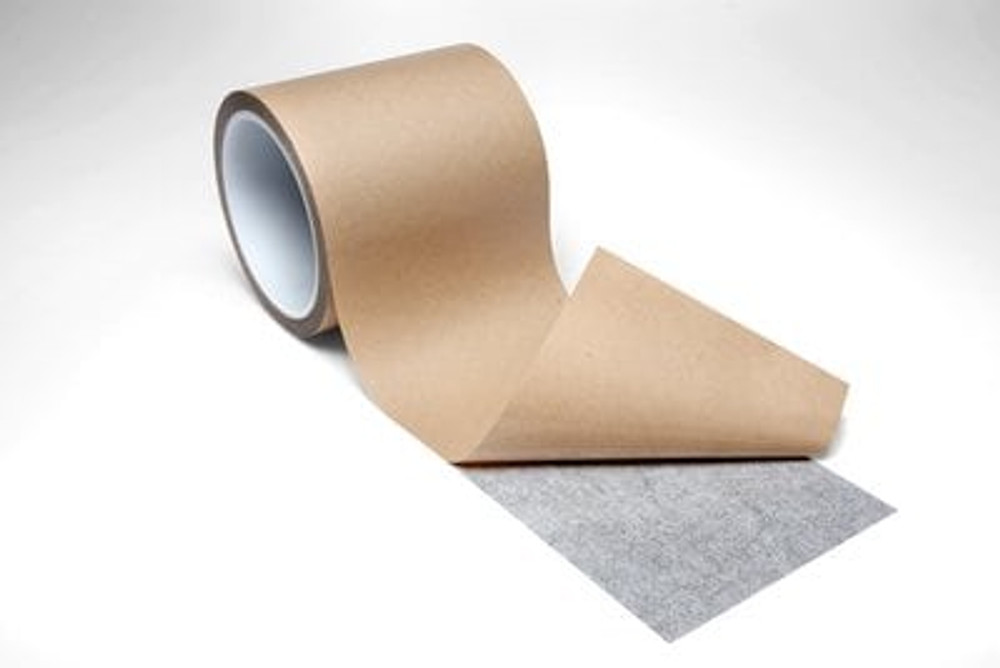

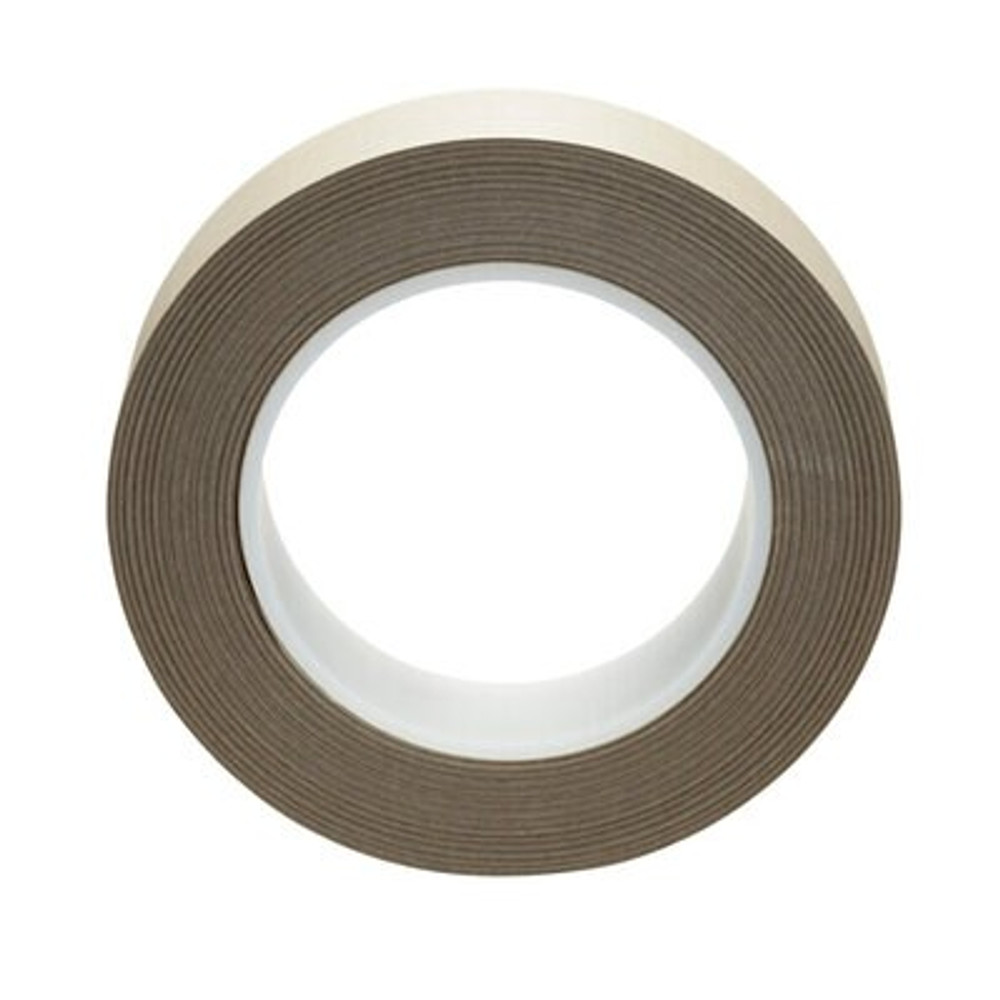

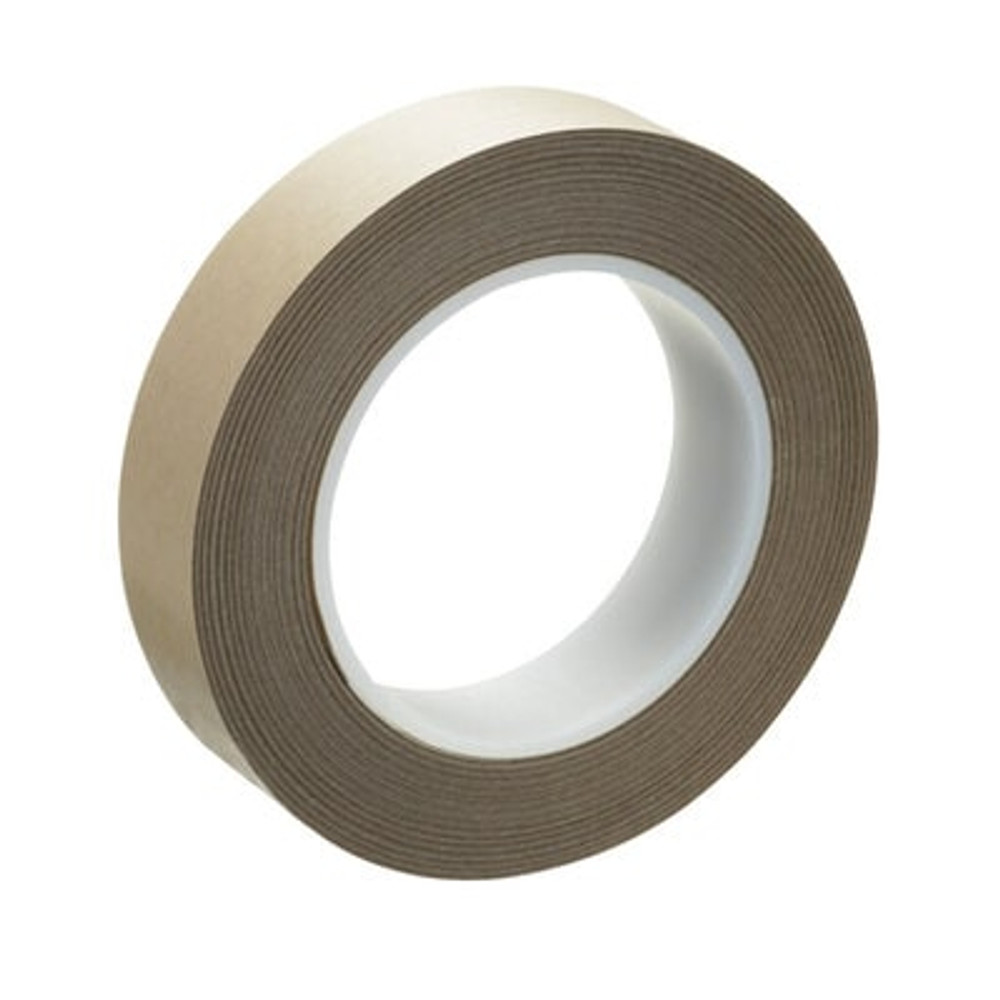

3M™ XYZ-Axis Electrically Conductive Tape 9713, 1 in x 36 yds, 9 Rolls/Case, Bulk - 7000048870

Sold As: 9-Pack
SKU: 7000048870
MPN: 7000048870
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200432156
3M ID: 70006280161
5 Digit UPC: 43215
$1,137.14 ($126.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Isotropic XYZ-axis electrical conductivity
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Good contact with both hard and soft surfaces
  • Excellent die-cutting and converting capabilities
  • Can be applied in strips or die cut to specific shapes and sizes
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Adhesion Strength (Imperial)1500.0
Total Tape Thickness without Liner (Imperial)3.5
Overall Length (Imperial) UOMyd
Electrical ResistanceZ-axis 1.7 Ω, XY-axis 5 Ω
Overall Width (Metric)25.4
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.089
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Imperial)1.0
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Width (Metric) UOMmm
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialNon-woven
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Liner MaterialPET
Product ColorGray
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Overall Length (Metric)32.918
Overall Width (Imperial) UOMin
