3M Products & Supplies

3M™ Electronic Double Sided Tape 82600, Clear, 1000 mm x 200 m, 0.005 mm, 1 roll per case - 7100035539

SKU: 7100035539
MPN: 7100035539
Lead Time: 136 working days.
3M ID: WT300959861
5 Digit UPC: #VALUE!
$4,938.20 each
Hurry up! Current stock:

Product Description

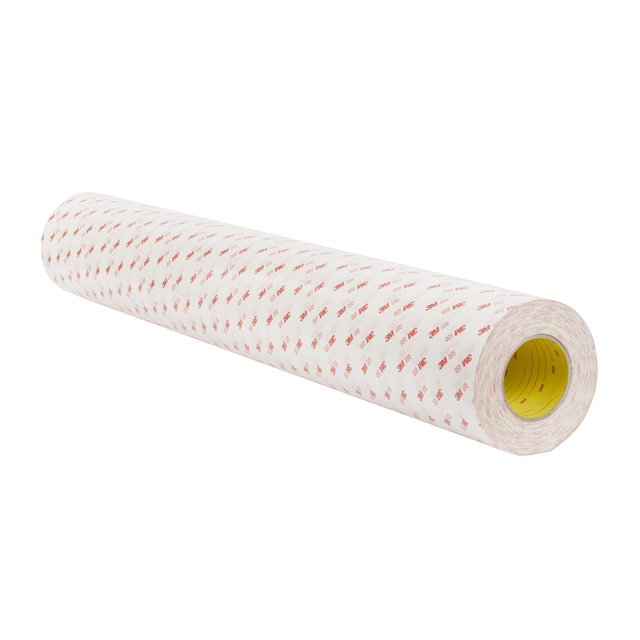

3M™ Double Sided Tape 82600 is a 5 micron double sided tape with clear PET film carrier and high performance acrylic adhesive. It features excellent initial tack and good convert-ability. It can be applied on most plastics, glass and metals.

Features

  • Instantaneous good tack and adhesion
  • Excellent shear strength
  • Thin tape that can be used to enable thin bond line applications
  • PET carrier is dimensionally stable and easy to die-cut

Downloads

Specifications

Back Side Liner Thicknessen-US: 0.91 mil
Backing Thickness (Metric)0.001 mm
Product ColorTransparent
Secondary Liner Thickness (Metric)0.05 mm
Secondary Liner Thickness (Imperial)1.97 mil
Operating Temperature Range (Celsius) Long Term(Days-Weeks) 93 Degrees C
Back Side Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric)0.001 mm
Backing MaterialPolyester
Primary Liner Thickness (Imperial)0.91 mil
Face Side Adhesive Thickness (Metric)0.002 mm
Primary Liner ColorTransparent
Application CategoryBonding
Face Side Adhesive TypeAcrylic
Face Side Liner Print TypePolyester
Primary Liner Thickness (Metric)0.023 mm
Overall Width (Imperial)39.37 in
SubstrateFoam - LSE Plastics - HSE Plastics - Metal - Glass
Back Side Adhesive Thickness (Metric)en-US: 0.002 mm
Total Tape Thickness without Liner (Metric)0.005 mm
Face Side Liner Thickness (Metric)0.05 mm
Back Side Liner Thickness (Metric)en-US: 0.023 mm
Face Side Liner Thickness1.97 mil
Overall Width (Metric)1000 mm
Back Side Liner Print TypePolyester
Liner ColorWhite with 3M Electronics Print
Operating Temperature Range (Celsius) Short Term(Minutes-Hours) 150 Degrees C
Back Side Liner ColorClear
Total Tape Thickness without Liner (Imperial)0.2 mil
Liner Thickness5.2 mil
Face Side Adhesive Thickness (Imperial)0.08 mil
Backing (Carrier) MaterialPolyester Film
Overall Length (Metric)200 m
Secondary Liner ColorTransparent
Product Number82600
Back Side Adhesive Thickness (Imperial)en-US: 0.08 mil
