3M Products & Supplies

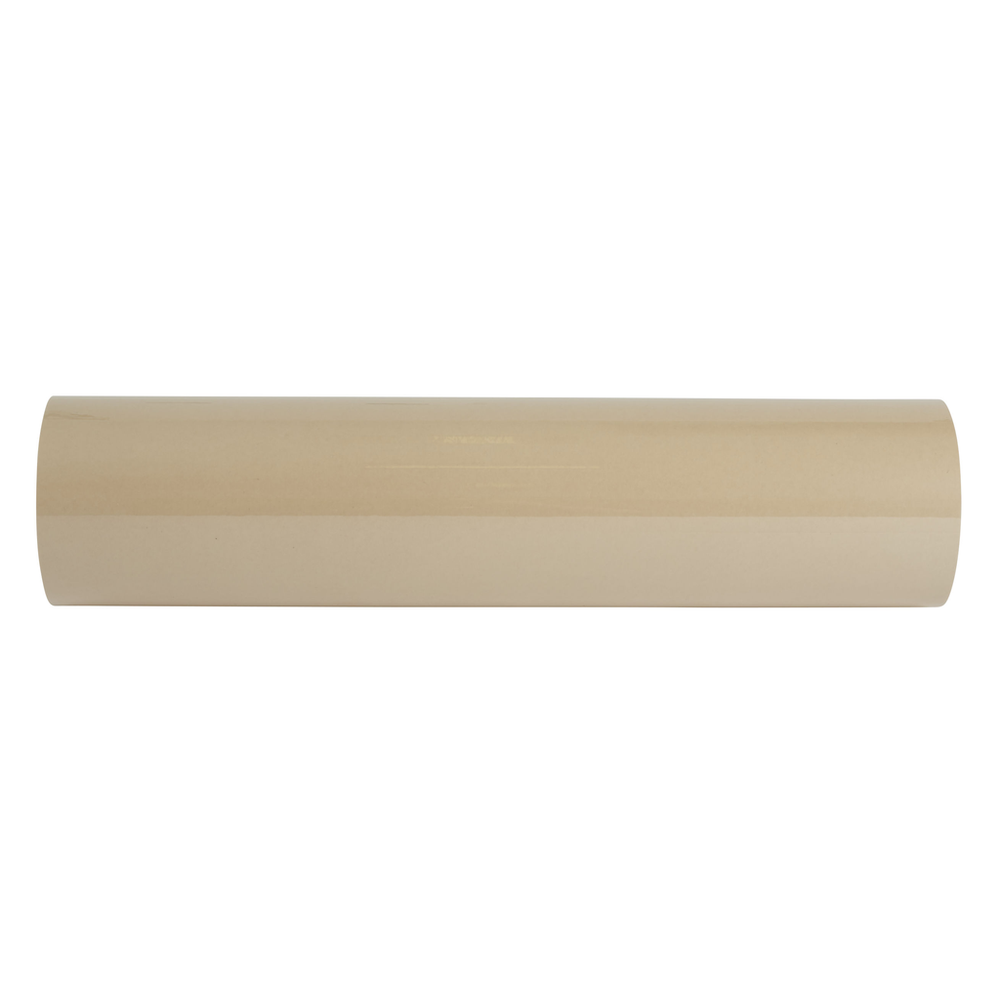

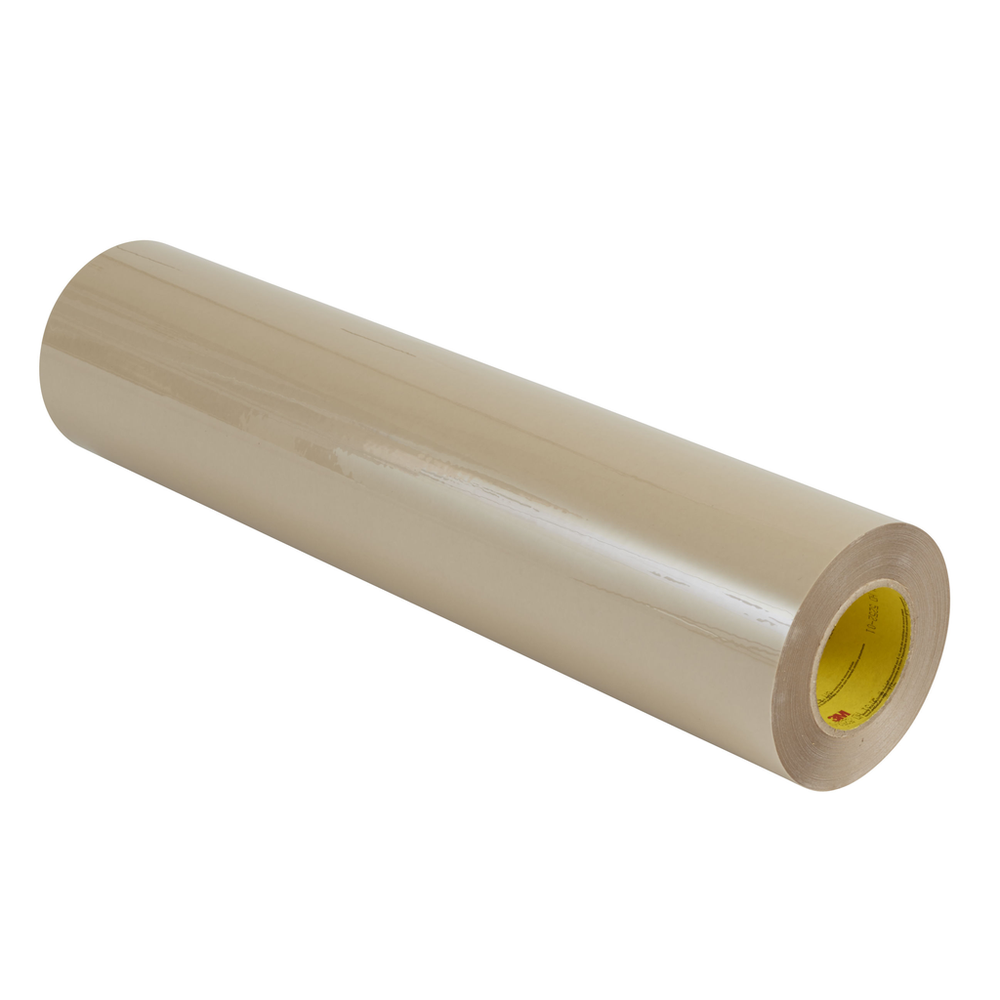

3M™ Double Coated Tape 9731, Clear, 305 mm x 55 m, 0.14 mm, 1 Roll/Case - 7000049119

Sold As: 4-Pack
SKU: 7000049119
MPN: 7000049119
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138955786
3M ID: 70006389954
5 Digit UPC: 95578
$11,960.60 ($2990.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing (Carrier) Thickness (Metric)0.025
Backing (Carrier) Thickness (Imperial)1.0
Carrier Thickness UOMmil
Core Size (Metric) UOMmm
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialPolyester
Face Side Adhesive Thickness (Imperial)1.6
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric)0.14
Overall Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Tape TypeDouble Coated
Secondary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)60.14
Secondary Liner Thickness (Imperial)2.9
Total Tape Thickness without Liner (Imperial)5.5
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Length (Metric)55.0
Shelf Life in Months (From Date of Manufacture)12.0
Units per Case1.0
Backing (Carrier) Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Carrier Thickness (Metric)0.03
Carrier Thickness0.0951388888888889
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Product FormRoll
Indoor/OutdoorBoth
Master Size Length (Metric)98.8
Core Size (Imperial)3.0
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Metric)0.17
Back Side Adhesive Thickness (Imperial)2.9
Master Size Width (Metric)122.0
Overall Length (Imperial) UOMyd
Back Side Adhesive TypeSilicone
Face Side Adhesive Thickness (Metric) UOMmm
Carrier Thickness (Metric) UOMmm
Carrier MaterialPolyester Film
Maximum Operating Temperature (Fahrenheit)250.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Primary Liner ColorTan
Overall Thickness (Imperial)5.5
Primary Liner58# Polycoated Kraft Paper (PCK)
Master Size Width (Metric) UOMcm
Overall Width (Metric)304.8
Core Size (Metric)76.2
Overall Width (Imperial)12.0
Face Side Adhesive Thickness (Metric)0.041
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.07
Product ColorTransparent
Master Size Length (Metric) UOMm
Core Size (Imperial) UOMin
Maximum Operating Temperature (Celsius)121.0
Primary Liner Thickness (Imperial)4.2
Shelf Life UOMMonth
