3M Products & Supplies

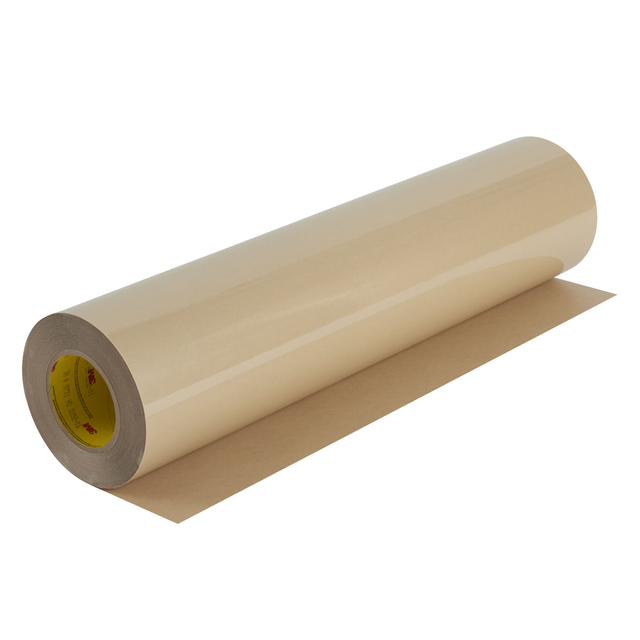

3M™ Double Coated Tape 9731-100, Clear, 48 in x 36 yd, 0.1 mm, 1 Roll/Case - 7100001206

SKU: 7100001206
MPN: 7100001206
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051111983348
3M ID: 70006724028
5 Digit UPC: 98334
$7,160.77 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731-100 is the thinnest version of the 9731. It is a high performance tape developed for applications in rubber or silicone foams.

Features

  • Thin polyester carrier provides dimensional stability and improved handling
  • Acrylic and silicone adhesives provide excellent attachments for silicone keypads
  • Adheres well to LSE materials and substrates including silicones
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)1.6
Primary Liner Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Imperial)48.0
Overall Width (Metric)1219.2
Face Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric)0.11
Overall Length (Imperial)36.0
Primary Liner ColorTan
Primary Liner Thickness (Imperial)4.2
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric)0.04
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)32.91
Overall Length (Imperial) UOMyd
Primary Liner58# Polycoated Kraft Paper (PCK)
Maximum Operating Temperature (Fahrenheit)250.0
Total Tape Thickness without Liner (Metric)0.04
Backing (Carrier) MaterialPET
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)121.0
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Face Side Adhesive Thickness (Metric) UOMmm
Product ColorTransparent
Units per Case1.0
Minimum Operating Temperature (Celsius)-40.0
Back Side Adhesive Thickness (Imperial)2.9
Face Side Adhesive Thickness (Imperial)1.6
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) Thickness (Metric)0.03
Back Side Adhesive TypeSilicone
Adhesive TypeAcrylic/Silicone
