3M Products & Supplies

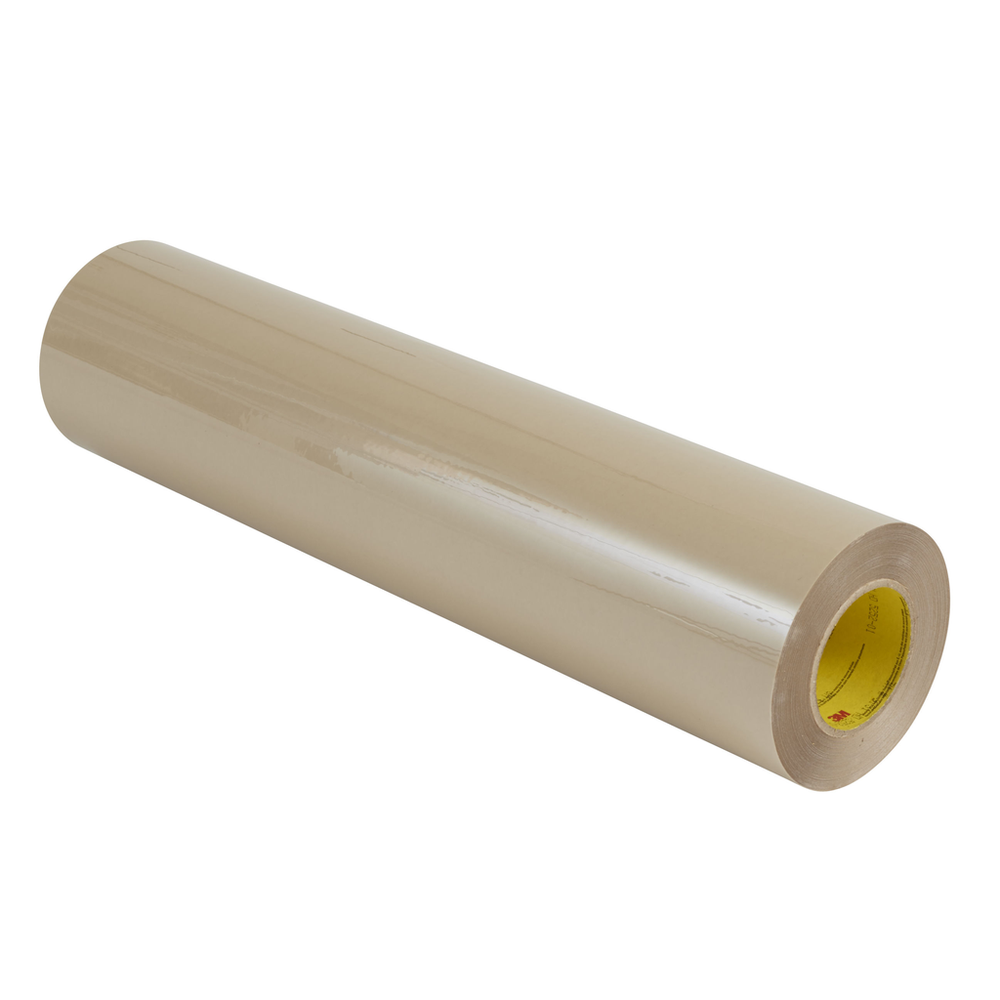

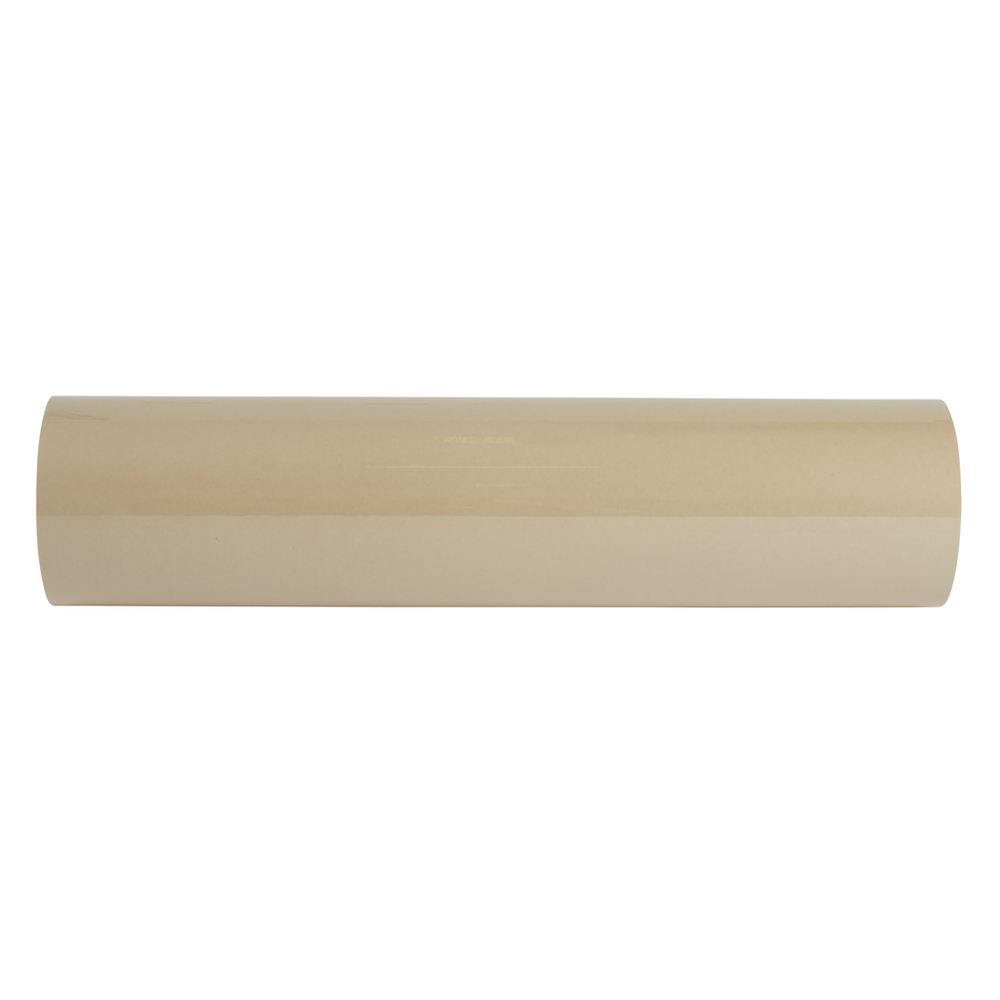

3M™ Double Coated Tape 9731, Clear, 24 in x 36 yd, 5.5 mil, 1 Roll/Case - 7000049120

Sold As: 2-Pack
SKU: 7000049120
MPN: 7000049120
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200003325
3M ID: 70006390366
5 Digit UPC: 332
$7,154.36 ($3577.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Ideal for attaching silicone rubber elastomers and foam
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) MaterialPolyester
Primary Liner Thickness (Metric)0.17
Secondary Liner Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive TypeSilicone
Overall Thickness (Imperial)5.5
Core Size (Imperial)3.0
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.0
Units per Case1.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Secondary Liner Thickness (Imperial)2.9
Carrier Thickness0.0951388888888889
Adhesive TypeAcrylic/Silicone
Carrier Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Metric)33.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product FormRoll
Master Size Width (Metric) UOMcm
Overall Width (Metric)609.6
Master Size Length (Metric) UOMm
Shelf Life in Months (From Date of Manufacture)12.0
Maximum Operating Temperature (Fahrenheit)250.0
Back Side Adhesive Thickness (Imperial)2.9
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.5
Face Side Adhesive Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Imperial)1.6
Carrier MaterialPolyester Film
Minimum Operating Temperature (Fahrenheit)-40.0
Carrier Thickness UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.041
Minimum Operating Temperature (Celsius) UOMDegree
Core Size (Metric)76.2
Overall Length (Imperial) UOMyd
Indoor/OutdoorBoth
Primary Liner ColorTan
Overall Width (Imperial)24.0
Primary Liner58# Polycoated Kraft Paper (PCK)
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Carrier Thickness (Metric)0.03
Tape TypeDouble Coated
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial)4.2
Shelf Life UOMMonth
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Secondary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.025
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Maximum Operating Temperature (Celsius)121.0
Total Tape Thickness without Liner (Metric)0.14
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Metric)0.07
Master Size Width (Metric)122.0
Product ColorTransparent
Core Size (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Master Size Length (Metric)98.8
Overall Width (Metric) UOMmm
Core Size (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
