3M Products & Supplies

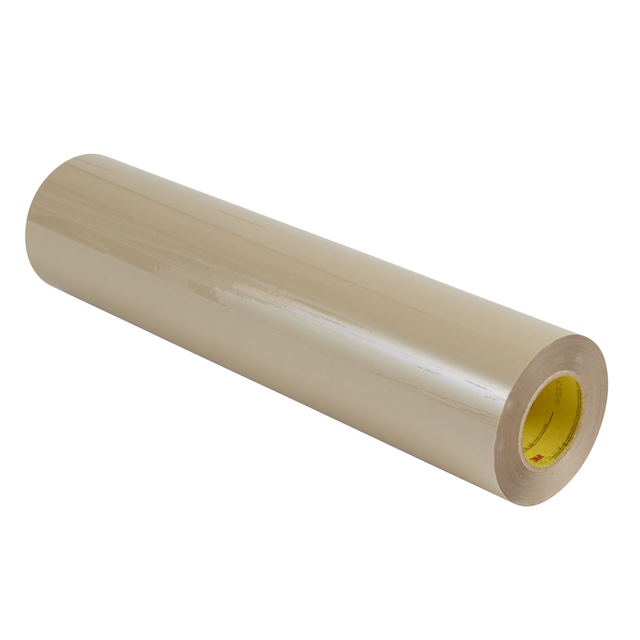

3M™ Double Coated Tape 9731, Clear, 9 in x 36 yd, 5.5 mil, 1 Roll/Case - 7010302208

SKU: 7010302208
MPN: 7010302208
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138959913
3M ID: 70-0063-9240-4
5 Digit UPC: 95991
$1,341.44 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Ideal for attaching silicone rubber elastomers and foam
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)1.6
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit)250.0
Master Size Width (Metric)122.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.9
Minimum Operating Temperature (Celsius)-40.0
Carrier Thickness UOMmil
Face Side Adhesive Thickness (Metric)0.041
Backing (Carrier) Thickness (Metric) UOMmm
Core Size (Imperial)3.0
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic/Silicone
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Shelf Life in Months (From Date of Manufacture) UOMMonths
Product ColorTransparent
Back Side Adhesive TypeSilicone
Backing (Carrier) Thickness (Metric)0.025
Total Tape Thickness without Liner (Metric)0.14
Carrier Thickness (Metric) UOMmm
Core Size (Imperial) UOMin
Overall Thickness (Imperial)5.5
Primary Liner ColorTan
Carrier MaterialPolyester Film
Minimum Operating Temperature (Celsius) UOMDegree
Shelf Life in Months (From Date of Manufacture)12.0
Master Size Width (Metric) UOMcm
Primary Liner Thickness (Metric)0.17
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyester Film
Overall Width (Metric)228.6
Secondary Liner Thickness (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper (PCK)
Number of Adhesive SidesDouble-sided
Secondary Liner Thickness (Imperial)2.9
Units per Case1.0
Core Size (Metric) UOMmm
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Carrier Thickness0.0951388888888889
Overall Width (Imperial)9.0
Secondary Liner Thickness (Metric)0.07
Total Tape Thickness without Liner (Imperial)5.5
Carrier Thickness (Metric)0.03
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric) UOMmm
Master Size Length (Metric)98.8
Core Size (Metric)76.2
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric)32.91
Overall Length (Metric) UOMm
Product FormRoll
Assembly TypeGasket Attachment
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)121.0
Backing (Carrier) Thickness (Imperial)1.0
Tape TypeDouble Coated
Primary Liner Thickness (Imperial)4.2
Indoor/OutdoorBoth
Master Size Length (Metric) UOMm
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
