3M Products & Supplies

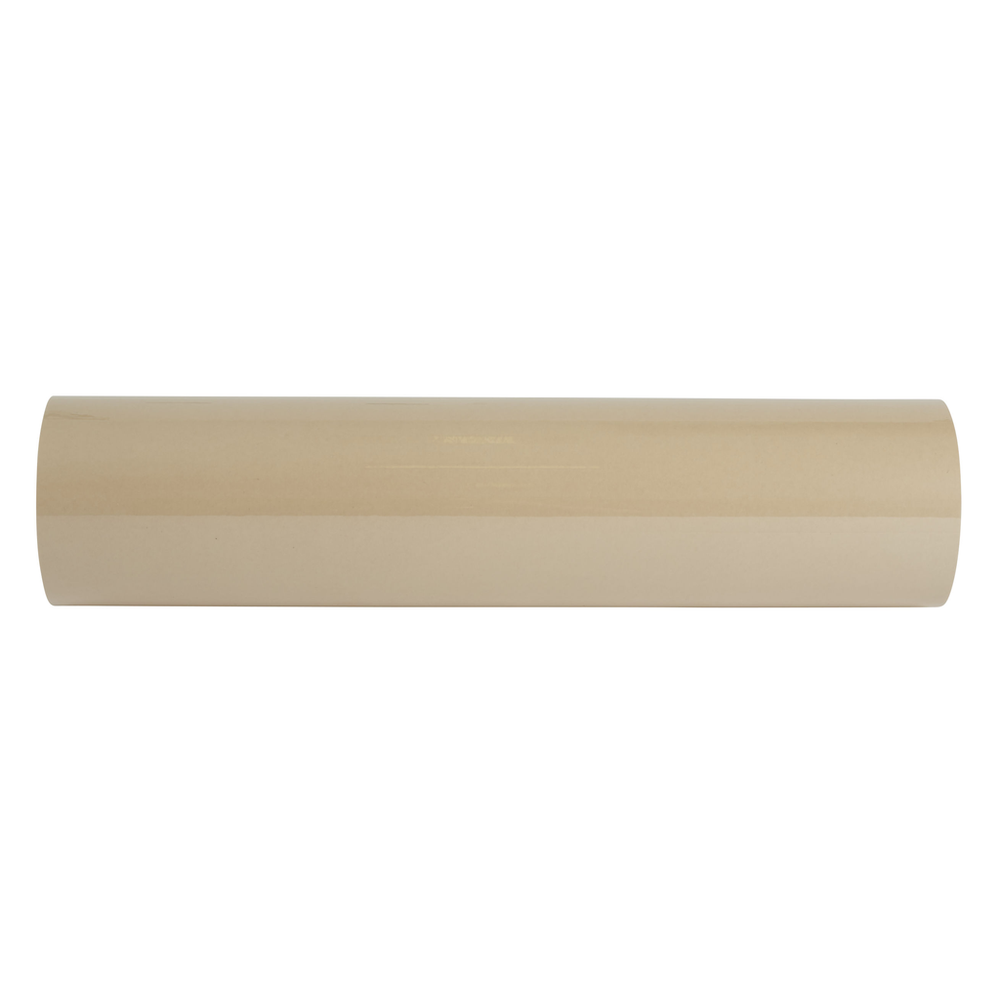

3M™ Double Coated Tape 9731, Clear, 36 in x 36 yd, 5.5 mil, 1 Roll/Case - 7010374432

SKU: 7010374432
MPN: 7010374432
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138953669
3M ID: 70006387834
5 Digit UPC: 95366
$5,364.66 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Ideal for attaching silicone rubber elastomers and foam
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Product ColorTransparent
Maximum Operating Temperature (Celsius)121.0
Secondary Liner Thickness (Metric) UOMmm
Core Size (Metric)76.2
Total Tape Thickness without Liner (Metric)0.14
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial) UOMmil
Assembly TypeGasket Attachment
Overall Width (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.025
Carrier Thickness UOMmil
Primary Liner Thickness (Metric) UOMmm
Core Size (Metric) UOMmm
Overall Length (Imperial) UOMyd
Secondary Liner Thickness (Metric)0.07
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric)0.17
Units per Case1.0
Core Size (Imperial) UOMin
Carrier Thickness (Metric)0.03
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Primary Liner58# Polycoated Kraft Paper (PCK)
Master Size Length (Metric) UOMm
Face Side Adhesive Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)12.0
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Imperial) UOMmil
Indoor/OutdoorBoth
Overall Width (Metric)914.0
Minimum Operating Temperature (Fahrenheit)-40.0
Back Side Adhesive Thickness (Imperial)2.9
Face Side Adhesive Thickness (Metric)0.041
Primary Liner Thickness (Imperial) UOMmil
Adhesive TypeAcrylic/Silicone
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial)1.0
Carrier Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial)2.9
Back Side Adhesive Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Primary Liner ColorTan
Overall Length (Metric)32.91
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)250.0
Backing (Carrier) MaterialPolyester Film
Primary Liner Thickness (Imperial)4.2
Carrier MaterialPolyester Film
Master Size Length (Metric)98.8
Back Side Adhesive Thickness (Imperial) UOMmil
Master Size Width (Metric)122.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Imperial) UOMmil
Tape TypeDouble Coated
Total Tape Thickness without Liner (Imperial)5.5
Face Side Adhesive Thickness (Imperial)1.6
Carrier Thickness0.09513889
Back Side Adhesive TypeSilicone
Core Size (Imperial)3.0
Product FormRoll
Master Size Width (Metric) UOMcm
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Thickness (Imperial)5.5
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Overall Thickness (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
