3M Products & Supplies

3M™ Double Coated Tape 9731, Clear, 48 in x 36 yd, 5.5 mil, 1 Roll/Case - 7000001317

SKU: 7000001317
MPN: 7000001317
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138958084
3M ID: 70006392206
5 Digit UPC: 95808
$7,154.35 each
Hurry up! Current stock:

Product Description

3M™ Double Coated Tape 9731 was developed with a high-performance acrylic adhesive on the face side and a silicone adhesive on the liner side of a 1 mil clear PET carrier. It is excellent for demanding applications where silicone materials must be bonded to a range of substrates.

Features

  • 3M™ Adhesive 350 on the face side provides exceptional temperature and chemical resistance
  • 3 mil silicone adhesive on liner side bonds well to silicone substrates
  • Double linered – Adhesive 350 on 58# 4.2 mil PCK liner and silicone adhesive on 3 mil PET liner
  • Features acrylic and silicone adhesives for specialized applications such as silicone gasketing

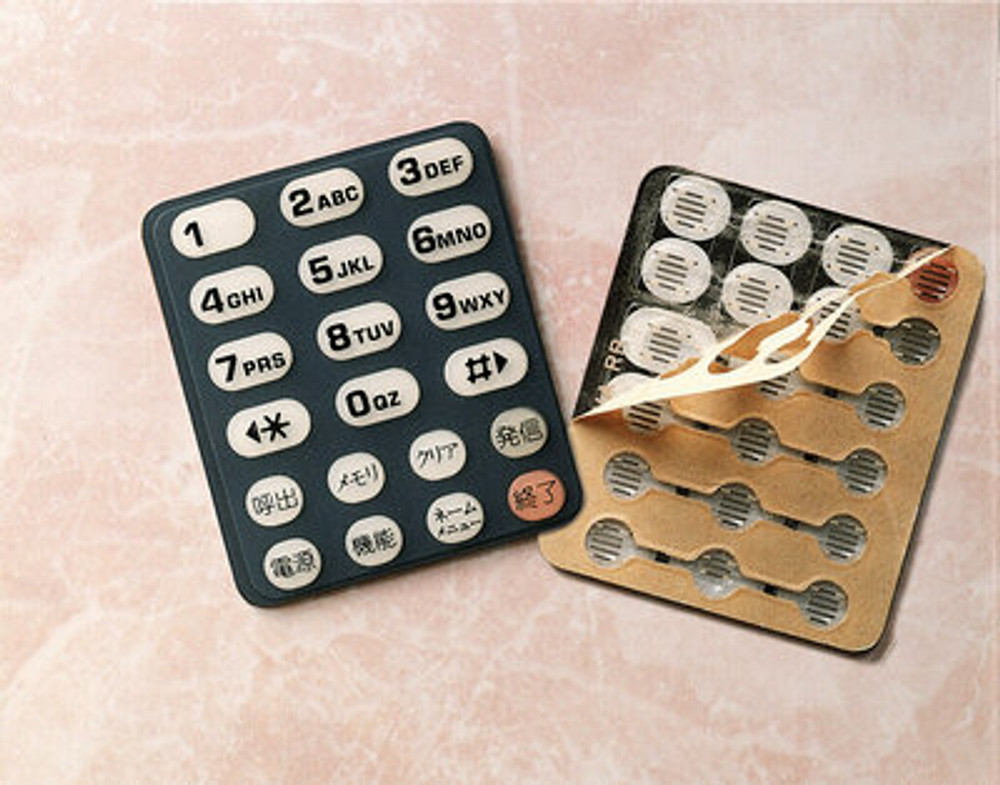

  • Ideal for attaching silicone rubber elastomers and foam
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)121.0
Maximum Operating Temperature (Fahrenheit)250.0
Master Size Length (Metric) UOMm
Core Size (Metric) UOMmm
Core Size (Imperial) UOMin
Tape TypeDouble Coated
Overall Width (Imperial)48.0
Overall Thickness (Imperial)5.5
Shelf Life in Months (From Date of Manufacture)12.0
Face Side Adhesive Thickness (Imperial)1.6
Face Side Adhesive TypeHigh Performance Acrylic Adhesive 350
Total Tape Thickness without Liner (Imperial) UOMmil
Master Size Width (Metric)122.0
Product ColorTransparent
Total Tape Thickness without Liner (Metric)0.14
Indoor/OutdoorBoth
Primary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Primary Liner Thickness (Metric)0.17
Overall Length (Imperial)36.0
Secondary Liner Thickness (Imperial) UOMmil
Assembly TypeGasket Attachment
Carrier Thickness UOMmil
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Core Size (Metric)76.2
Master Size Width (Metric) UOMcm
Secondary Liner Thickness (Metric)0.07
Primary Liner58# Polycoated Kraft Paper (PCK)
Back Side Adhesive Thickness (Metric) UOMmm
Master Size Length (Metric)98.8
Overall Width (Metric) UOMcm
Secondary Liner Thickness (Imperial)2.9
Primary Liner Thickness (Imperial)4.2
Face Side Adhesive Thickness (Imperial) UOMmil
Units per Case1.0
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, Medical, Metalworking, Military and Government, Oil & Gas, Signage, Specialty Vehicles, Transportation
Primary Liner ColorTan
Carrier Thickness (Metric) UOMmm
Carrier Thickness0.09513889
Secondary Liner Thickness (Metric) UOMmm
Shelf Life UOMMonth
Back Side Adhesive Thickness (Imperial)2.9
Minimum Operating Temperature (Celsius) UOMDegree
Face Side Adhesive Thickness (Metric)0.041
Shelf Life in Months (From Date of Manufacture) UOMMonths
Carrier Thickness (Metric)0.03
Backing (Carrier) Thickness (Imperial)1.0
Product FormRoll
Overall Width (Imperial) UOMin
Core Size (Imperial)3.0
Overall Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester
Backing (Carrier) Thickness (Metric)0.025
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)33.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.5
Number of Adhesive SidesDouble-sided
Overall Width (Metric)122.0
Minimum Operating Temperature (Fahrenheit)-40.0
Carrier MaterialPolyester Film
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Primary Liner Thickness (Metric) UOMmm
Back Side Adhesive TypeSilicone
Adhesive TypeAcrylic
